RX100 S8
Upgrade and Maintenance Manual 161
Expansion cards and backup units

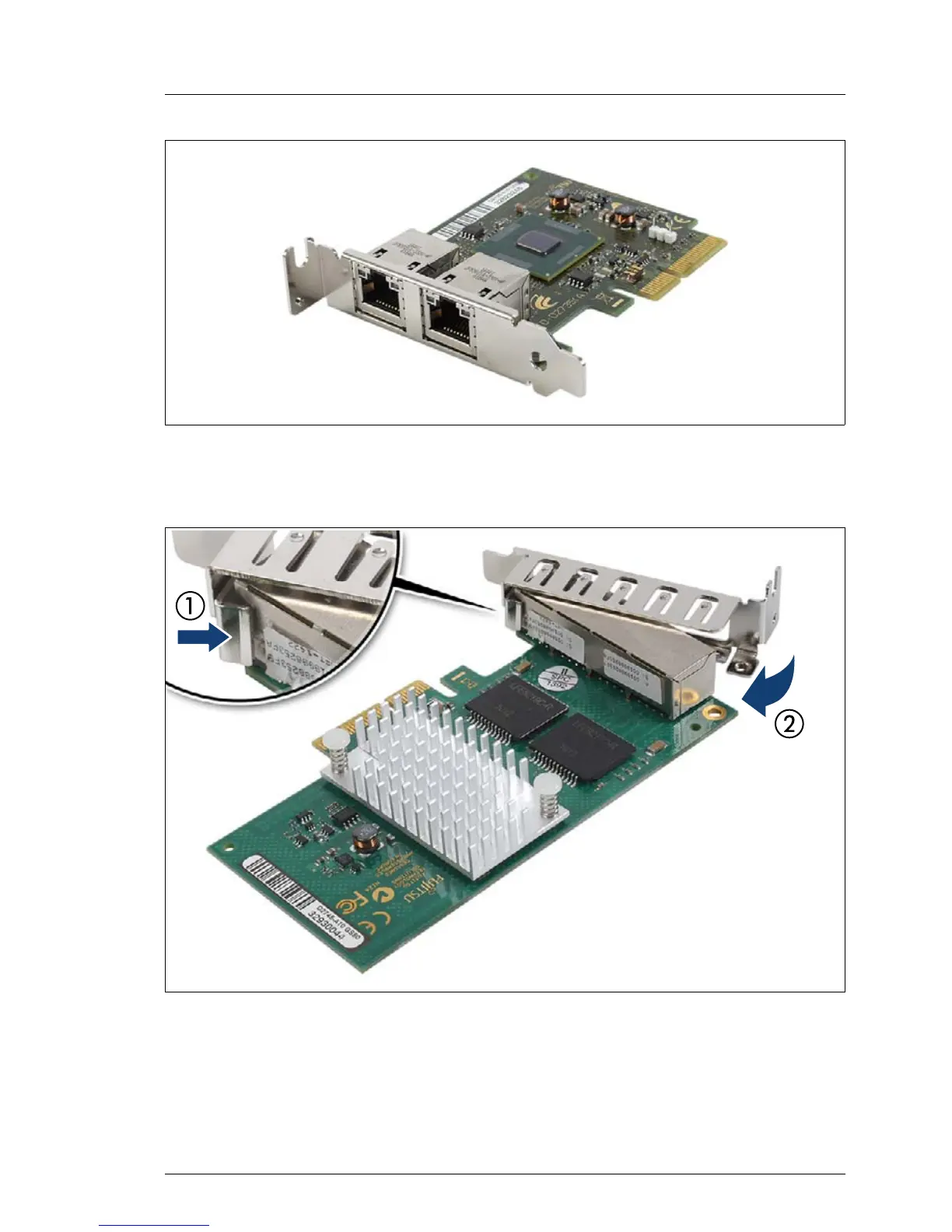

Figure 91: Assembled network adapter D2735
Example network adapter D2745
Figure 92: Placing the slot bracket - D2745
Ê Hinge the slot bracket to the plug shell as shown (1).
Ê Fold the slot bracket towards the controller until the threaded mounting tab
is aligned with the screw hole on the controller (2).
