162 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units

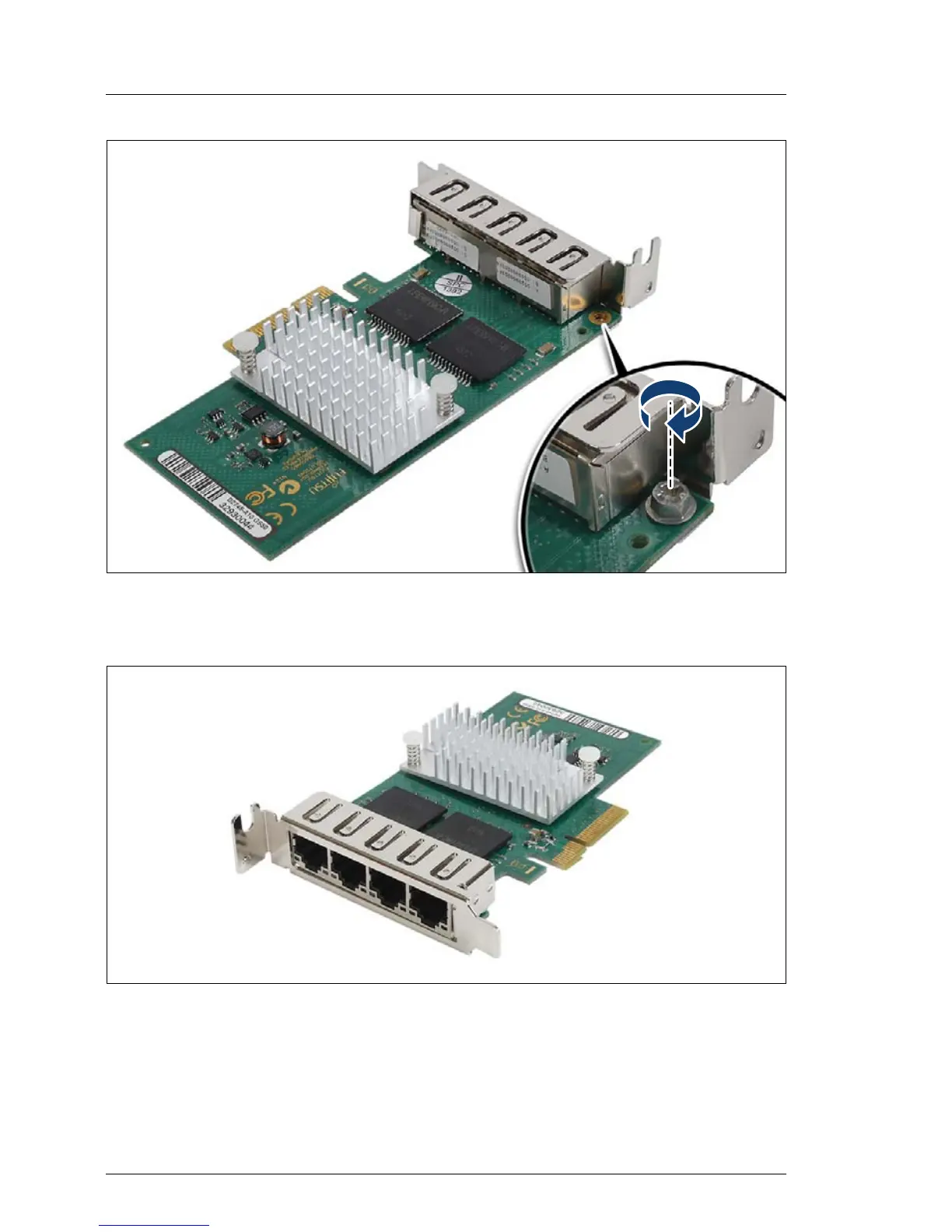

Figure 93: Fastening the slot bracket - D2745
Ê Fasten the slot bracket to the controller with one M3 x 4.5 mm screw.
Figure 94: Assembled network adapter D2745
