8. Vector Chart Material
8-51

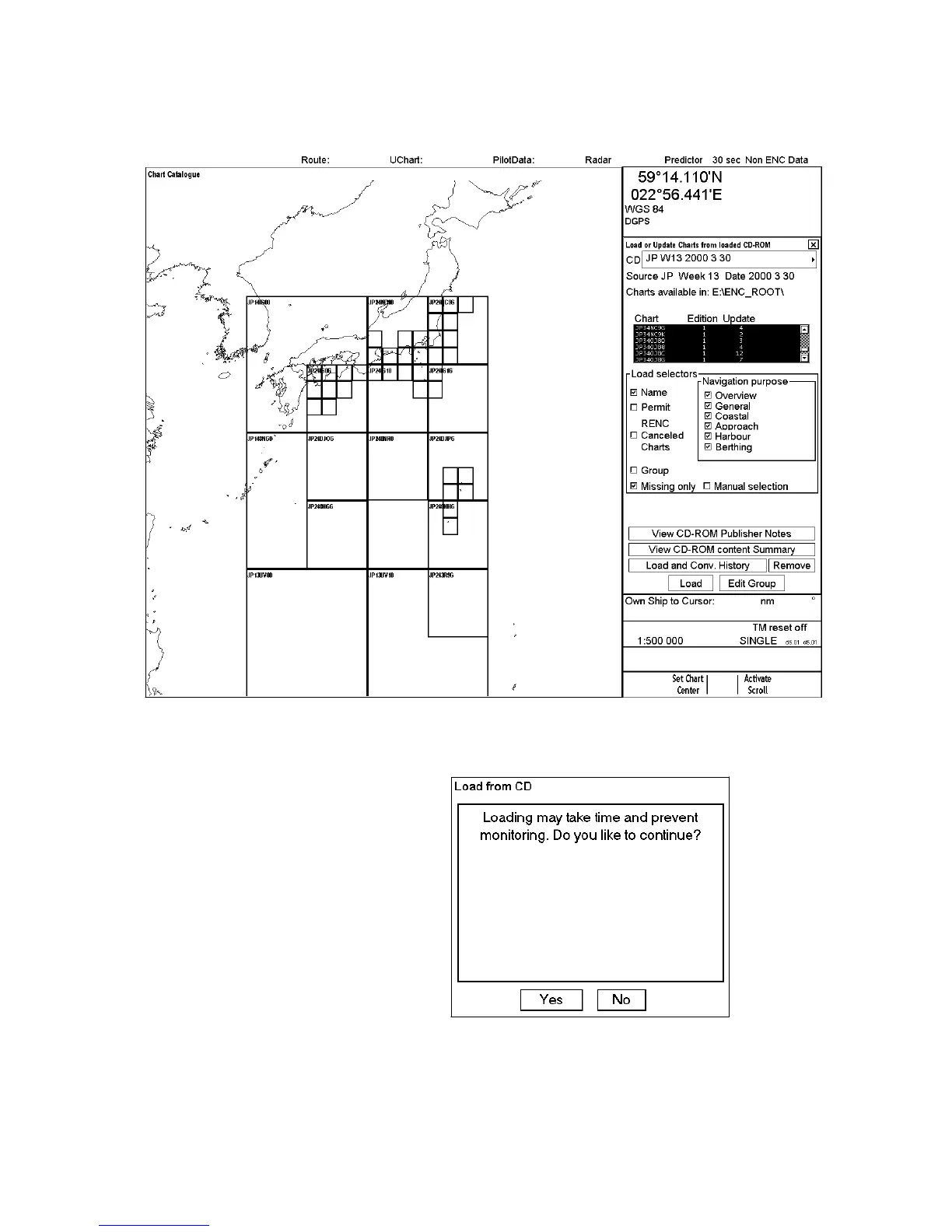

6. In the Load or Update Charts from CD ROM dialog box, choose the charts to load into ECDIS, then click the
Load button to load the charts into the ECDIS. For further details, see "Interpretation of Load or Update Charts
from CD ROM" on page 8-47.
North Up TM
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8 Kt
SB
(POSN)
1.7 Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0 Kt
7. Before ECDIS starts loading charts (then automatically converts
them into SENC format) you are asked confirmation for this
operation.
8.The SENC conversion window appears.
To Next Page
