A5.2.6 Catalogue of S57 cells with C-MAP charts

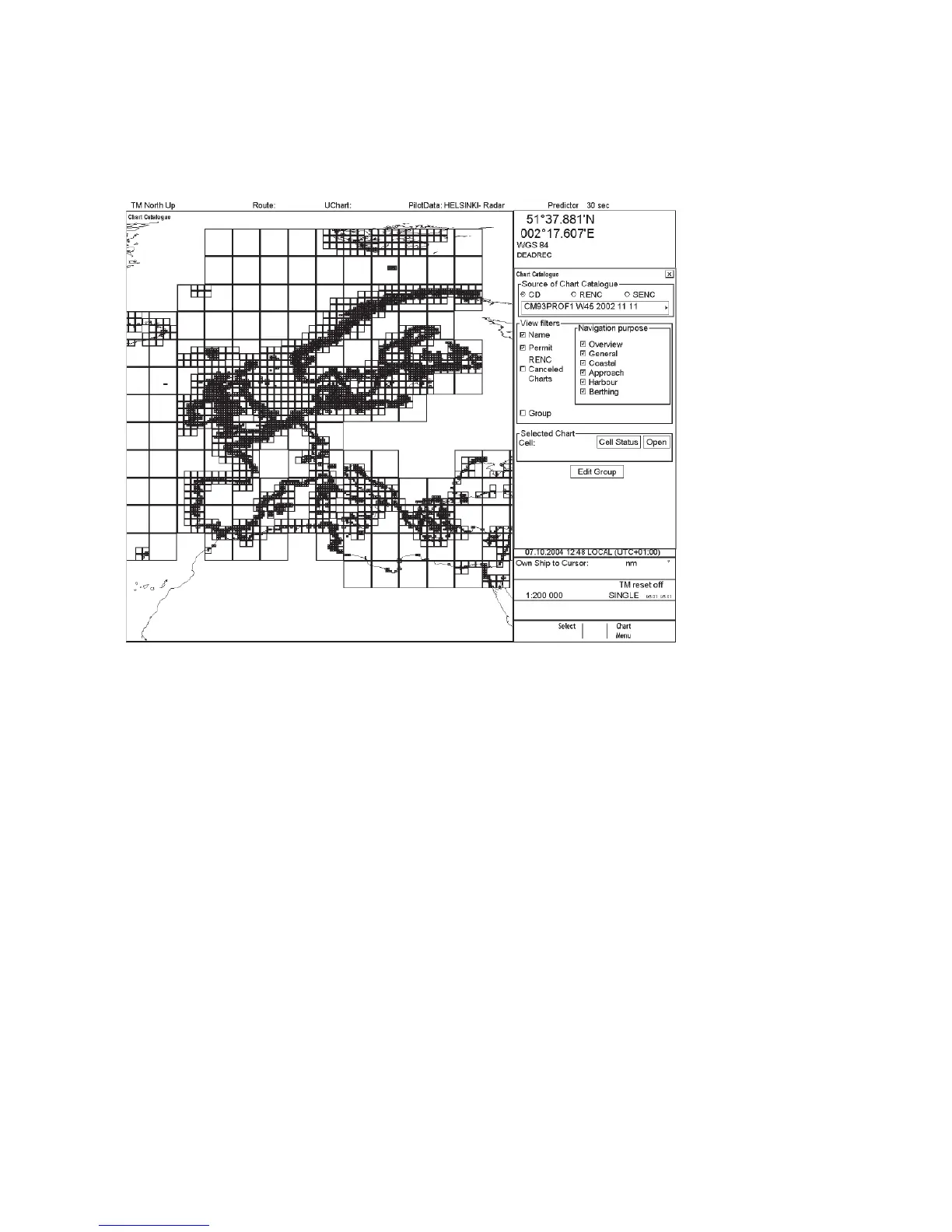

A S57 catalogue is used to view your cells stored into your hard disk or named "CD ROM catalogues". You view
limits of cells in the S57 catalogue window. It is possible to pick any cell to see information for it (cell, update’s
number) by going over its limit with the cursor.
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8
Kt
SB
(POSN)
1.7
Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0
Kt
1. Source of Chart Catalogue
• CD ROM: Display charts available in a named "CD ROM".
• RENC: Display charts available from an RENC.
• SENC: Display charts stored in your hard disk in SENC format.
2. View Filters
• Name: Display also cell names in graphical coverage display.
• Permit: Display only charts for which you have permit.
• RENC Cancelled Charts: Display charts, which are cancelled in an RENC.
• Group: Display charts, which are member of selected group.
• Navigation purpose: Display charts for chosen navigation purpose (overview, general, coastal, approach,
harbour, berthing).
3. Selected Chart
• Cell: Name of the chart
• Cell Status: Opens Cell Status window.
• Open: Opens selected chart to ECDIS display.
4. Group: For further details, see the next section.
