27.2.7 Autopilot FAP-2000 window

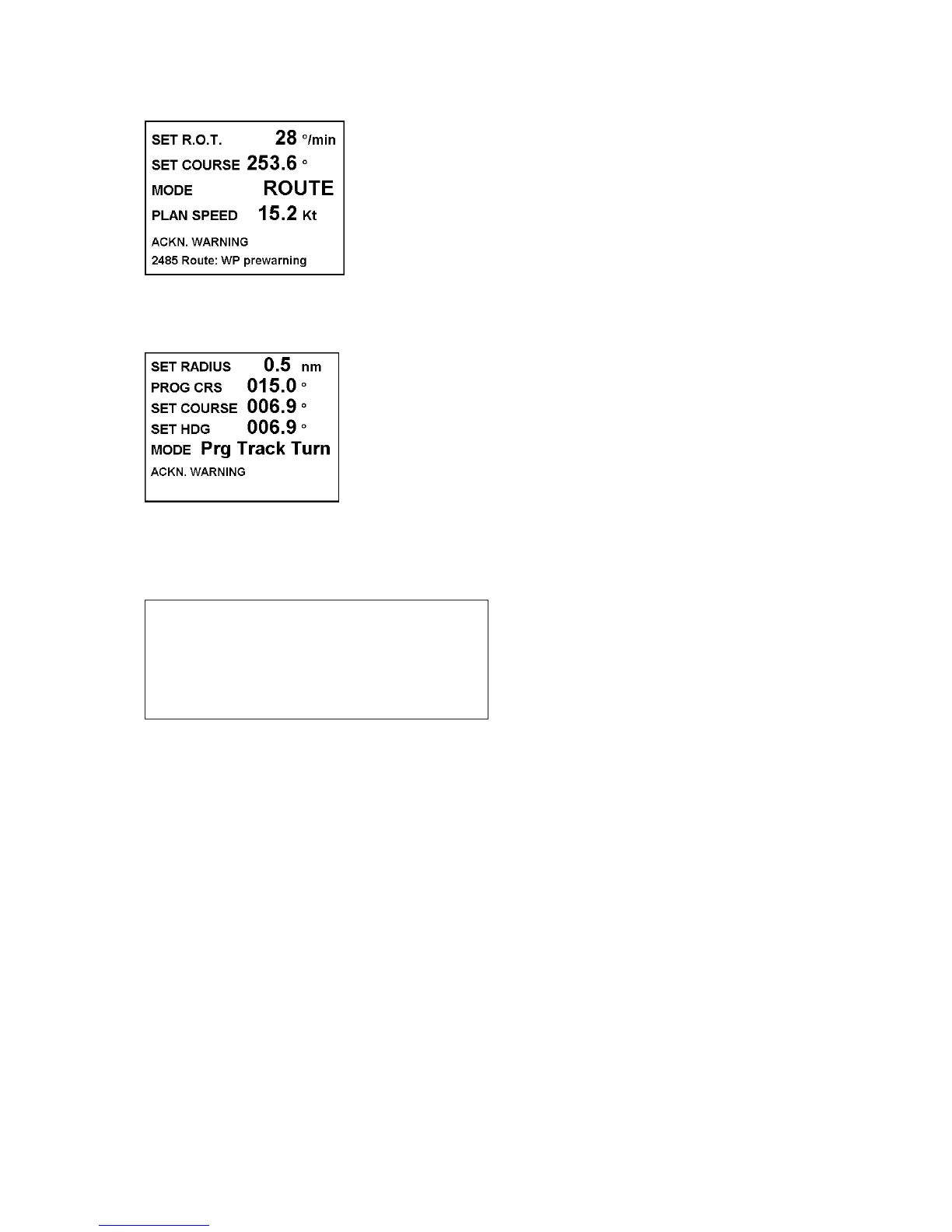

The trackpilot window displays the following information:
• SET R.O.T.: Current set rate of turn based on current speed and set turning
radius.
• SET COURSE: Current set course.
• MODE: Indicates chosen steering mode.
• PLAN SPEED: Planned speed in current leg of the monitored route.
• ACKN WARNING: Steering-related alarms displayed in lower status bar
of ECDIS are also displayed on the conning display.
This is called the trackpilot existed window, where the following additional
information is available:
• SET RADIUS: Indicates chosen radius for turn.
• PROG CRS: Course after turn designed by program course change or
program track steering mode.
• SET HDG: Calculated heading for ship based on SET COURSE and
DRIFT. This information is available when the program track steering is in
use.
Autopilot FAP-2000 order window for DNV specification
SET COURSE xxx.x deg
SET RADIUS x.x nm
SET R.O.T. xxx.x deg/min
SET SPEED xx.x kt
MODE (steering mode)
ACKN. WARNING (steering related warning)
