18. Common Reference System
18-11
18.6.2 Access server log
The access server log is used to analyze and diagnose access server operation. Service personnel can use this log to
check the access server for proper operation. To access the access server log, do the following:

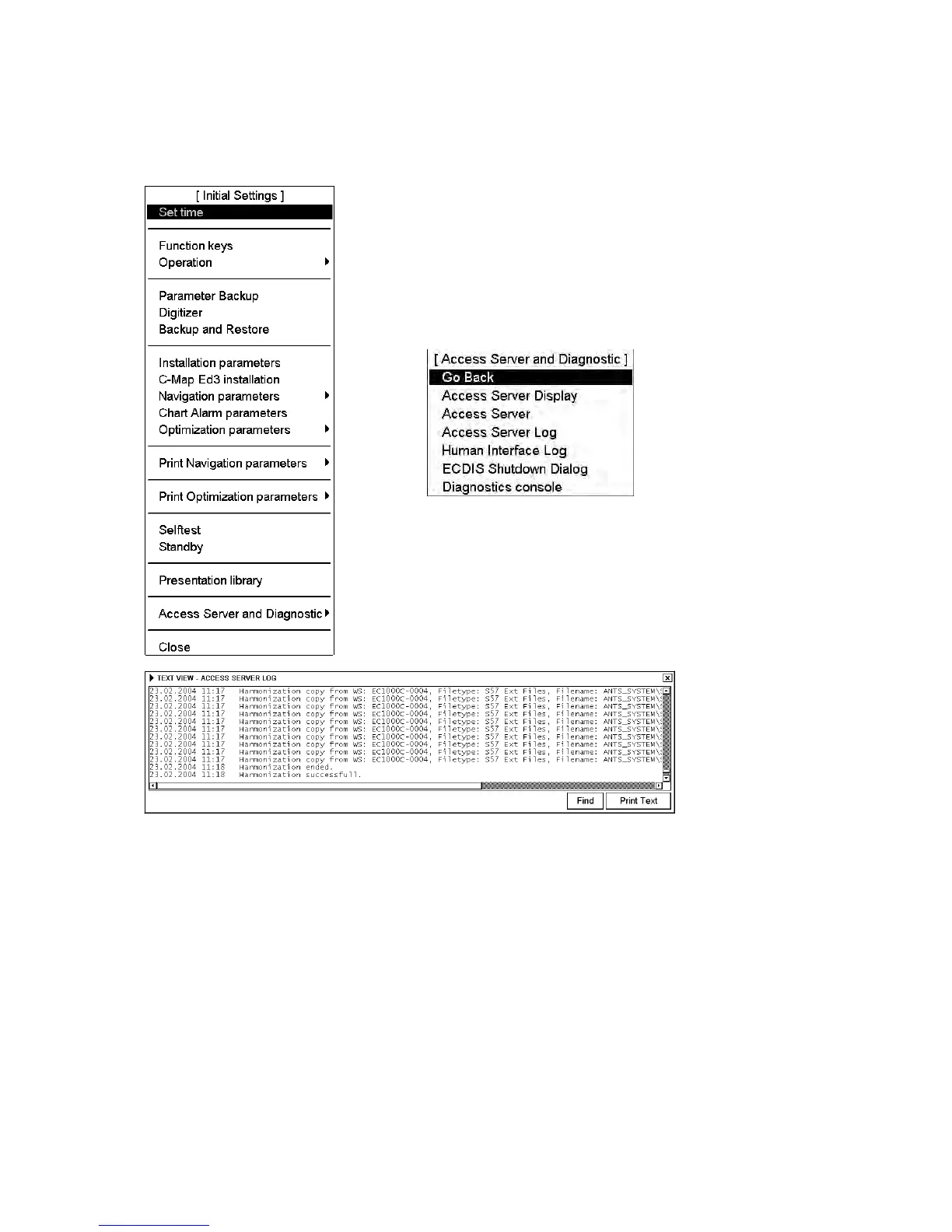

1. Place the cursor below the chart scale indication, confirm that Initial
Settings is shown in the mouse functions area then push the right
mouse button.
2. Place the cursor on the triangle in the dialog box to display the
menu shown left.
3. Choose Access Server and Diagnostic from the menu and choose
Access Server Log from the sub menu.
To Next Page
