9.5.7 Controlling visible navigation features
Visibility control of the navigation features is divided into four pages in the Chart Display dialog box. The "Route"
page controls planned and monitored route. The "Tracking" page controls past tracks and some other features. The
"Mariner" page controls pilot data, user charts and chart alarms. The "Targets" page controls ARPA and AIS targets.
The operator can define settings for chart details that are displayed over the chart area. This means that the operator
can choose different layers to be Off, Std or Other. Off turns off the feature chosen. Std turns on the navigation
feature chosen when the standard display is made active by accessing the mouse function Standard Display. Other
turns off the navigation features when the standard display is made active as mentioned above.

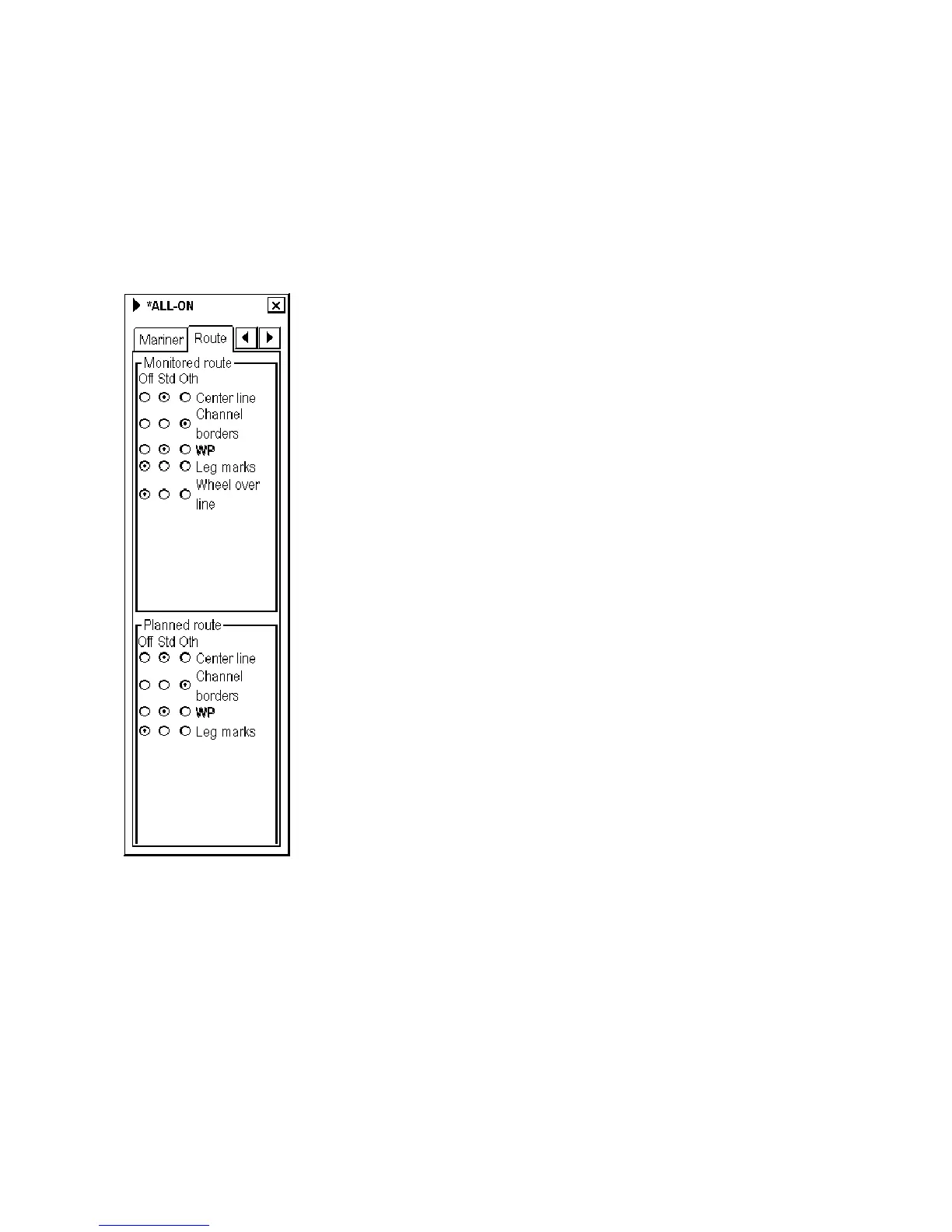

Route page
This page contains selection of route related navigation features
monitored route: Choose which part of monitored route to display.
Planned route: Choose which part of planned route to display.
Note: WP mark on both monitor and planned routes is permanently set to Std
position.
