Appendix 4: C-MAP CM-93/3 Charts
AP-26
A4.3 CM93/3 Chart Display
A4.3.1 Introduction
CM93/3 charts are vector charts displayed together with ENC (S57) and CM93/2 charts. These charts have the
priority order shown below.
1. ENC
2. CM93/3
3. CM93/2
If identical navigational purpose charts exist for a given area, priority is as shown above. Areas where ENC is not
available and CM93/3 and CM93/2 are available, CM 93/3 is displayed. Areas where ENC and CM93/3 are not
available, CM93/2 is displayed.

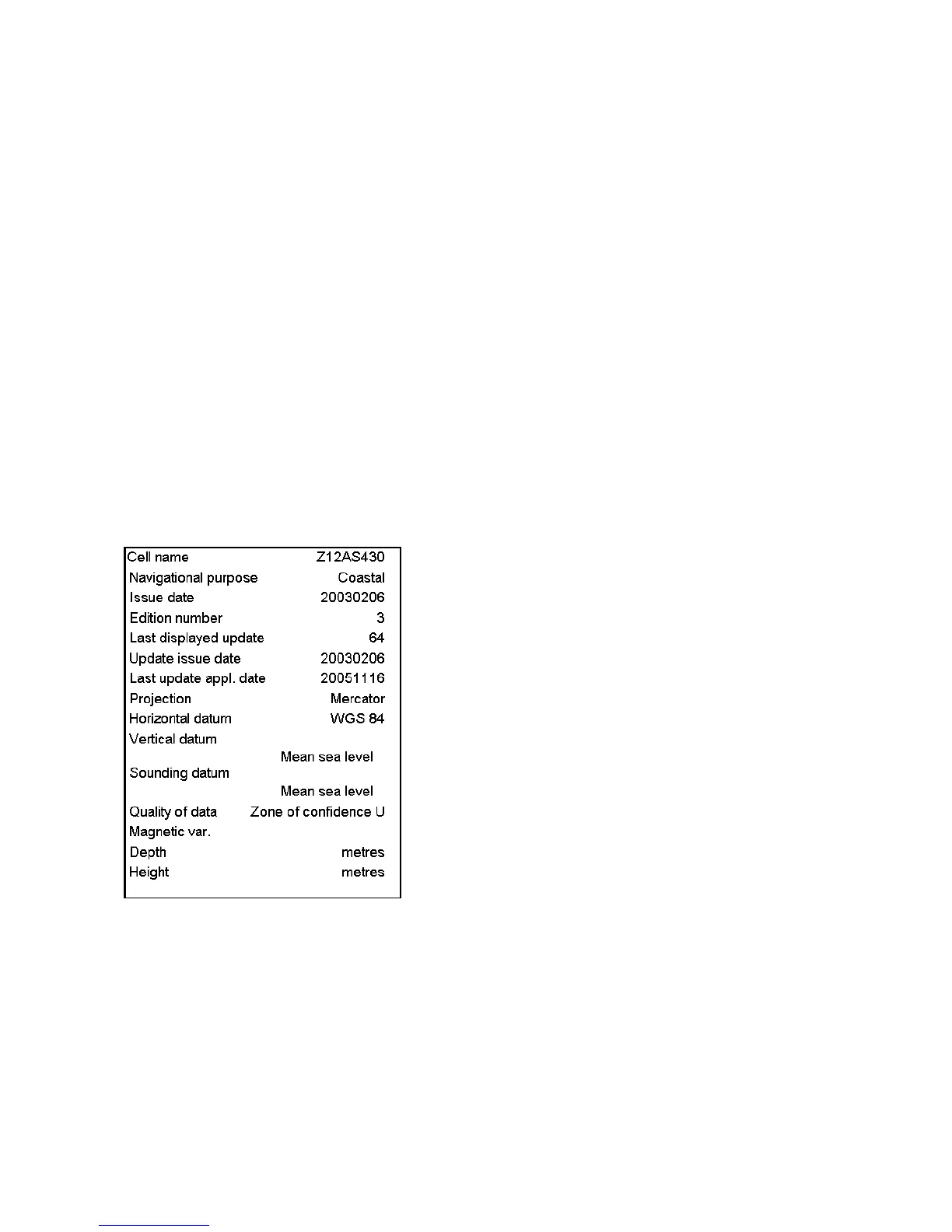

The chart legend, which provides various data about the chart currently displayed, can be toggled on and off by
placing the cursor in the sidebar, clicking the right mouse button, choosing Chart Legend from the menu then
pushing the scrollwheel.
This system is capable of showing more than one S57 chart at a time. This feature is called the multi-chart display.
If one S57 chart does not cover the whole display, the system will open more S57 chart cells for display, if
appropriate cells for the displayed area are available. The chart legend shows information about S57 charts
displayed on the electronic chart display area. The information is displayed with reference to your ship's position if
automatic TM reset is active, or with reference to the current position of the cursor if automatic TM Reset is OFF.
Cell name:
Name of chart.
Navigational purpose:
S57 charts are compiled for a variety of navigational purposes.
The navigational purpose, for which an individual S57 chart
has been compiled by a Hydrographic Office, is indicated in
this field. Alternatives are Overview, General, Coastal,
Approach, Harbour and Berthing.
Issue date:
Issue date of the Base cell of the chart.
Edition number:
Edition number of the chart.
Last displayed update:
Number of last update, which is visible on the chart screen.
Update issue date:
Date to which the last update, which is visible on the chart
screen, is effective.
Last update appl. date:
Issue date of last update, which is visible on the chart screen.
Projection:
Projection of the chart. The projection is always Mercator.
