18. Common Reference System
18-12
18.6.3 Human interface log
The human interface log is used to analyse and diagnose system operation. Service personnel can use this log to
check the system for proper operation. To activate the human interface log, do the following:

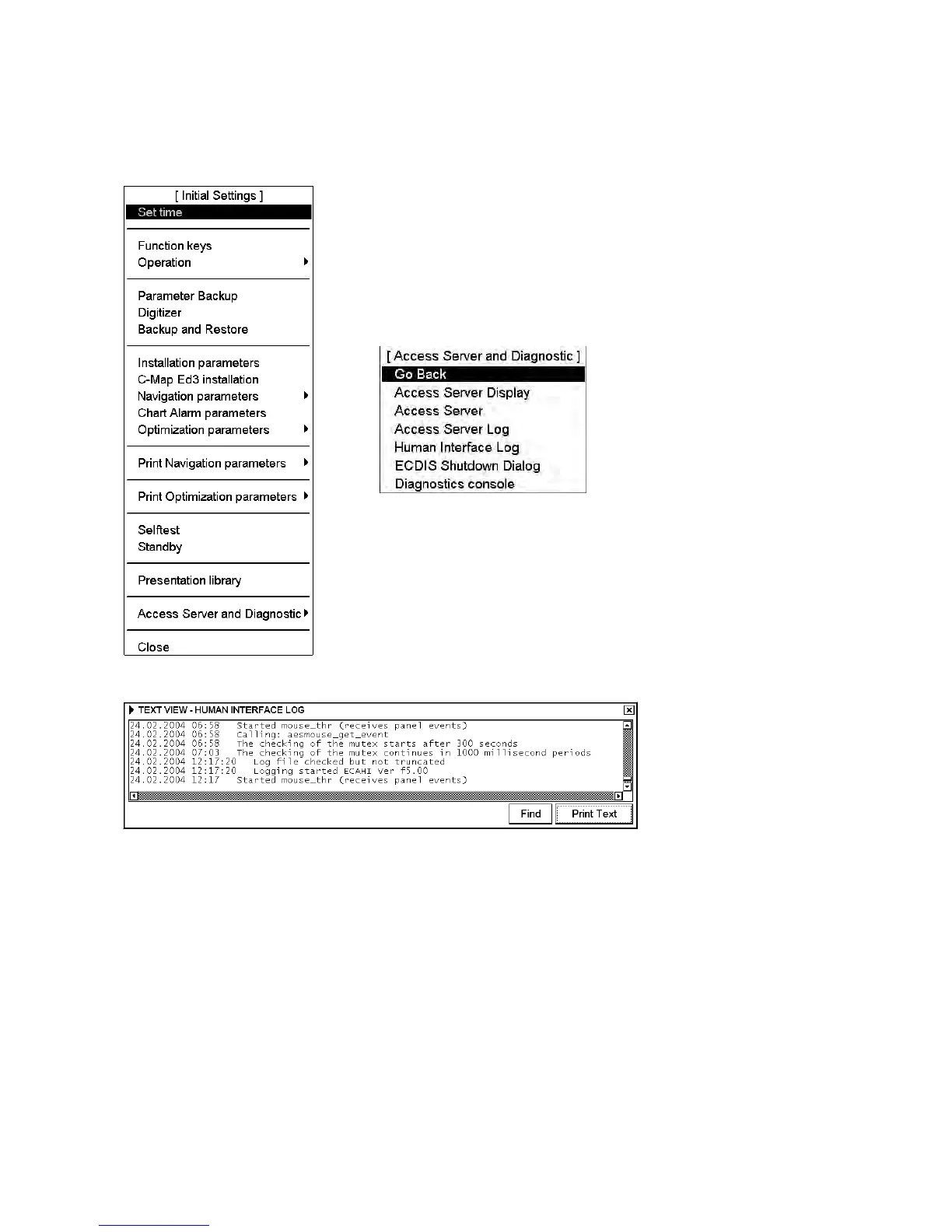

1. Place the cursor below the chart scale indication, confirm that Initial
Settings is shown in the mouse functions area then push the right
mouse button.
2. Place the cursor on the triangle in the dialog box to display the menu
shown left.
3. Choose Access Server and Diagnostic from the menu and choose
Human Interface log from the sub menu.
To Next Page
