3.3.2 Sidebar on operator interface
You may choose what kind of information to display in the sidebar (right side) of the ECDIS. The options shown
below are available and the content of the sidebar windows change with the devices and sensors connected to the
system. The route display or autopilot display is always displayed. You can display one of them together with the
conning display, docking display or chart legend. When two sidebars are active, the width of the information area is
doubled, as shown below.
• Route display
• Autopilot display
• Conning display
• Docking display
• Chart legend
Autopilot
display
Conning
display
North Up TM
CSE
CSE
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8 Kt
SB
(POSN)
1.7 Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0 Kt

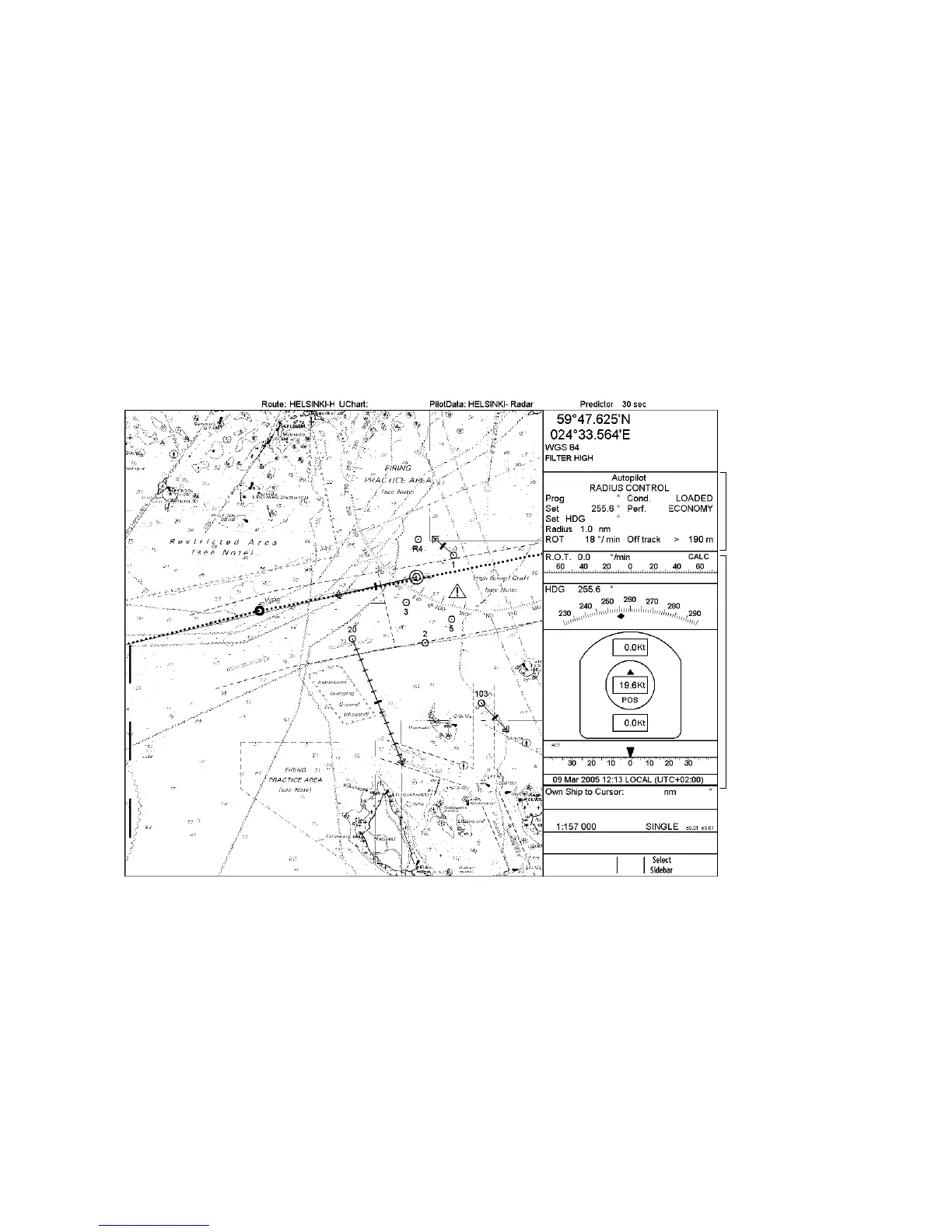

Sidebar, with autopilot and conning display windows
