8. Vector Chart Material
8-70

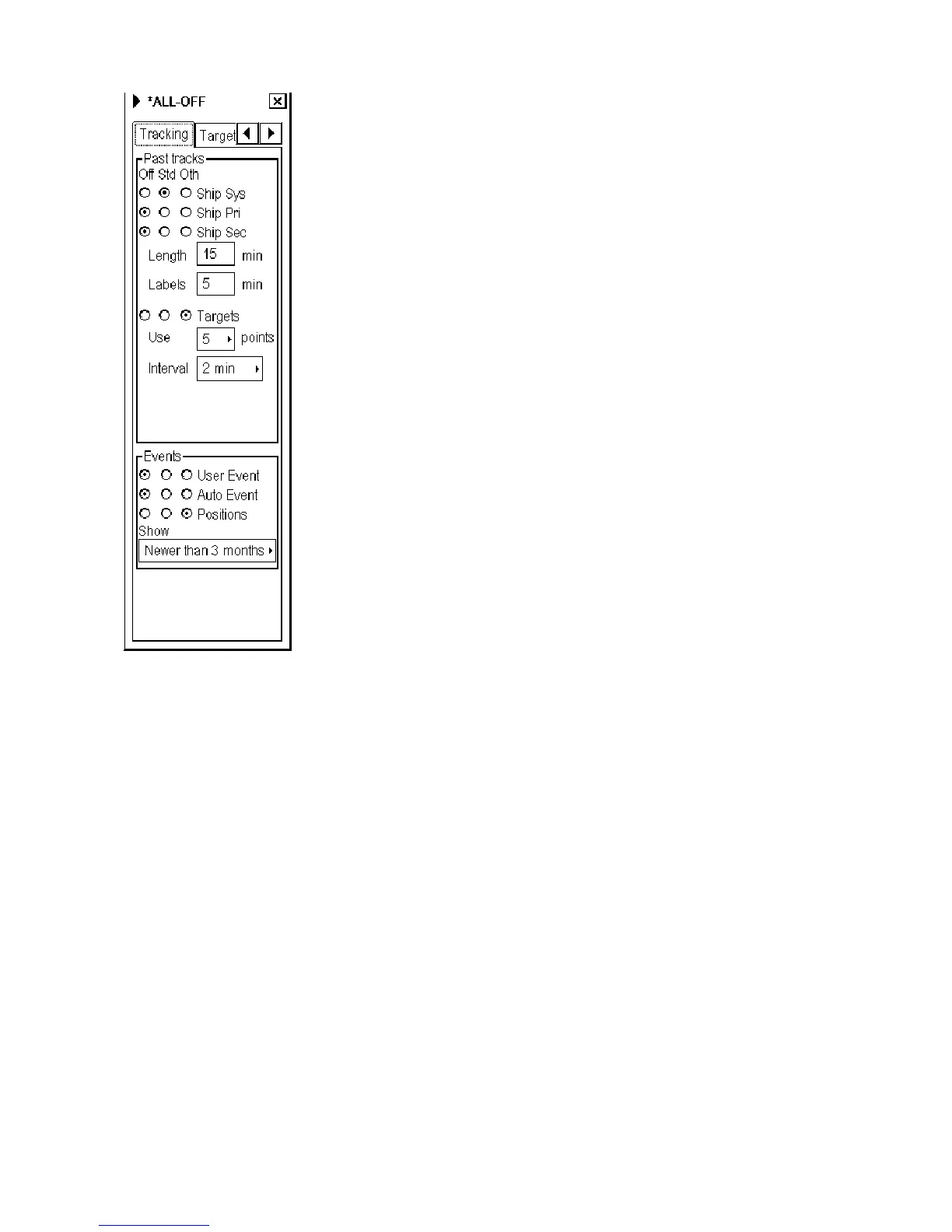

Tracking page
Past tracks
• Ship System: Choose Std or Other to plot your ship’s tracks using
system-fed position.
• Ship Primary: Choose Std or Other to plot your ship’s past track
with position fed from the primary sensor.
• Ship Secondary: Choose Std or Other to plot your ship’s past track
with position fed from a secondary sensor.
• Length: Choose length (in minutes) of past tracks shown on the
screen.
• Labels: Choose period of track labeling.
• Targets: Choose Std or Other to plot ARPA target past tracks. Use
chooses number of track points to display; Interval chooses the
plotting interval for the track points.
Events: These marks are based on voyage log records. For more
information, see section 23.3.2 Voyage log.
• User Event: Choose Std or Other to display event symbols on
ECDIS, where the system has recorded an event based on conditions
you have set (Type: User and Auto).
• Automatic Event: Choose Std or Other to display automatically
entered event symbols, where the system has recorded an event based
on conditions you have set (Type: Ship and Alarm).
• Positions: Choose Std or Other to show applicable position marker
at event position.
Note 1: MOB event is always visible.
Note 2: You can choose period of time to display event marks in the
list box "Show".
