10. Manual Updates
10-16

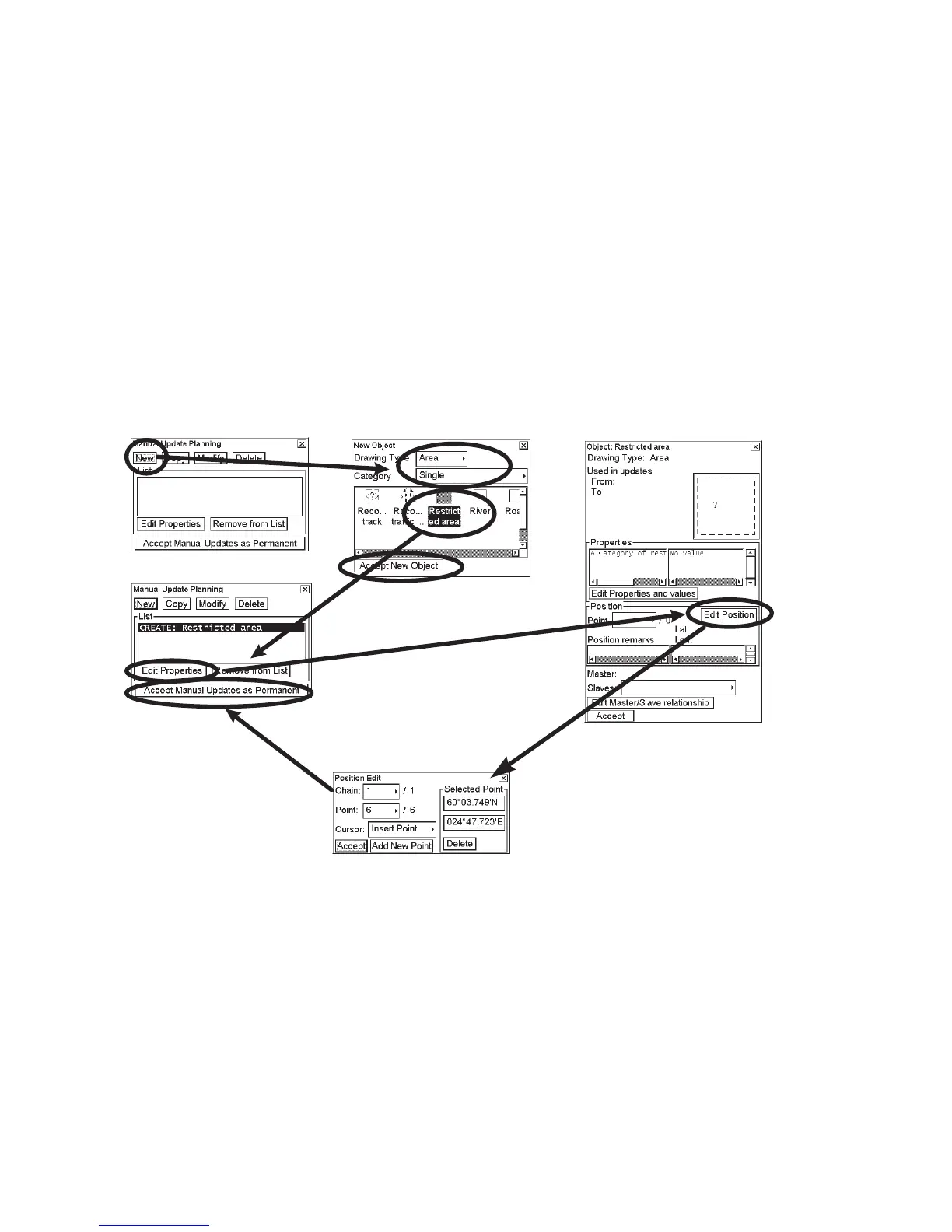

Example of how to insert a "restricted area"
1. Follow steps 1-3 on page 10-6 to display the Manual Update Planning dialog box.
2. Click the New button in the Manual Update Planning dialog box.
3. Choose Area from the Drawing Type list box then choose Single from the Category list box.
4. Choose desired icon from the list of available chart objects.
5. Click the Accept New Object button. New object is displayed in the List.
6. Then, click the Edit Properties button.
7. Click the Edit Position button.
8. Set cursor on the desired location on the ECDIS display then push the left mouse button. Repeat this until you
have defined all points.
9. Click the Accept Manual Updates as Permanent button to finish.
8. Set position with
cursor and push
left mouse button.
Click Accept button.
3.
4.
9.
7.
6.
5.
2.
