3. ECDIS Display
3-11
Additional menu functions in dialog boxes

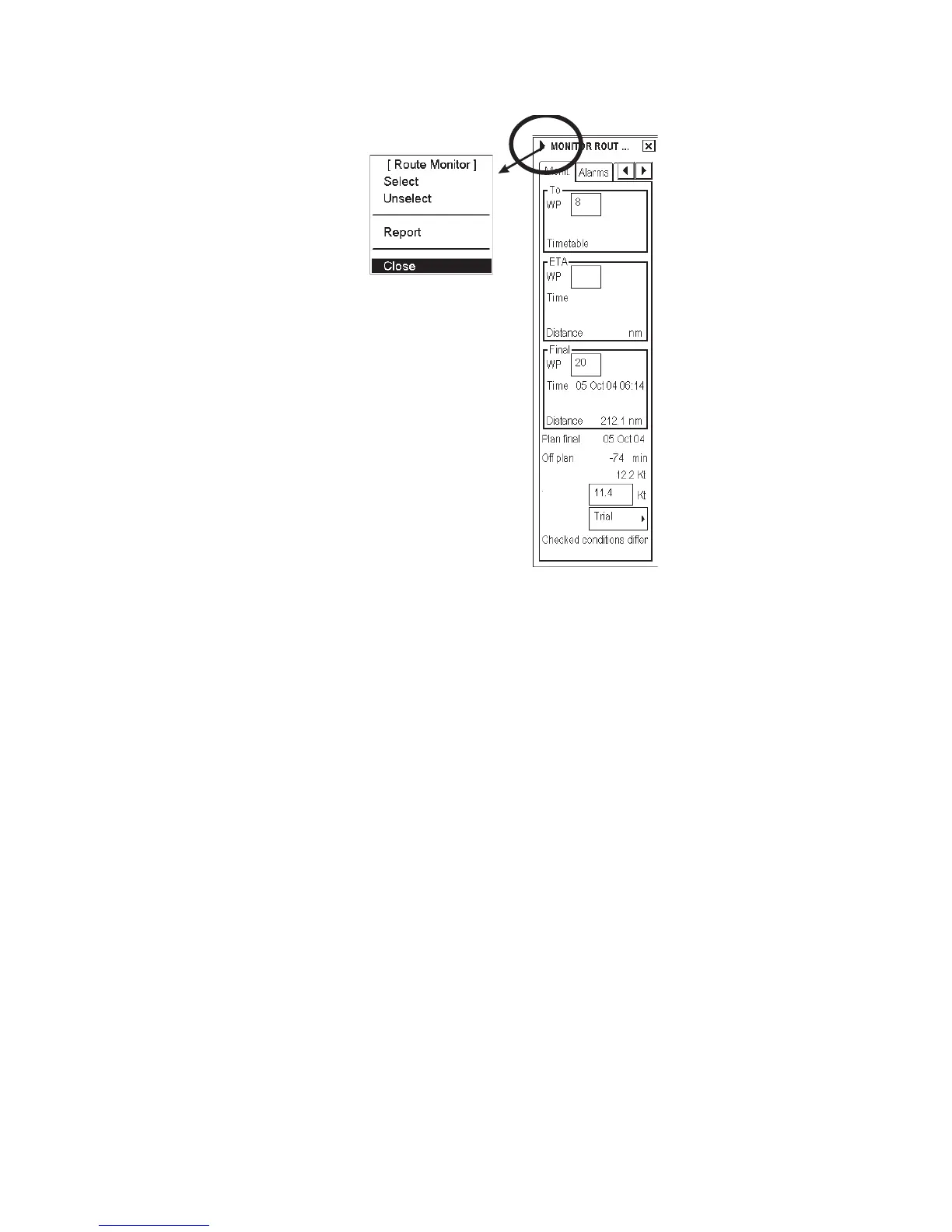

Dialog boxes which have a triangle
at their upper left-hand corner
contain a menu which provides
additional functions. See the figure
at right. Place the cursor on the
triangle to show a menu from
which to choose additional
functions.
Note: A menu will also appear if
you try to activate a dialog box
without choosing an option from
the menu. (For route, user chart or
pilot data, see section 3.4
Controlling Planning and
Monitoring Modes on the ECDIS
Display.)
Suggested spd
Trial
Spd profile
