Appendix 5: C-MAP CM-93/2 Charts
AP-48
Loading serial number of CD ROM
Each CD ROM has an individual serial number that is used to identify the operator of C-MAP charts. In order to
load the serial number into the ECDIS, do the following:
Go Back

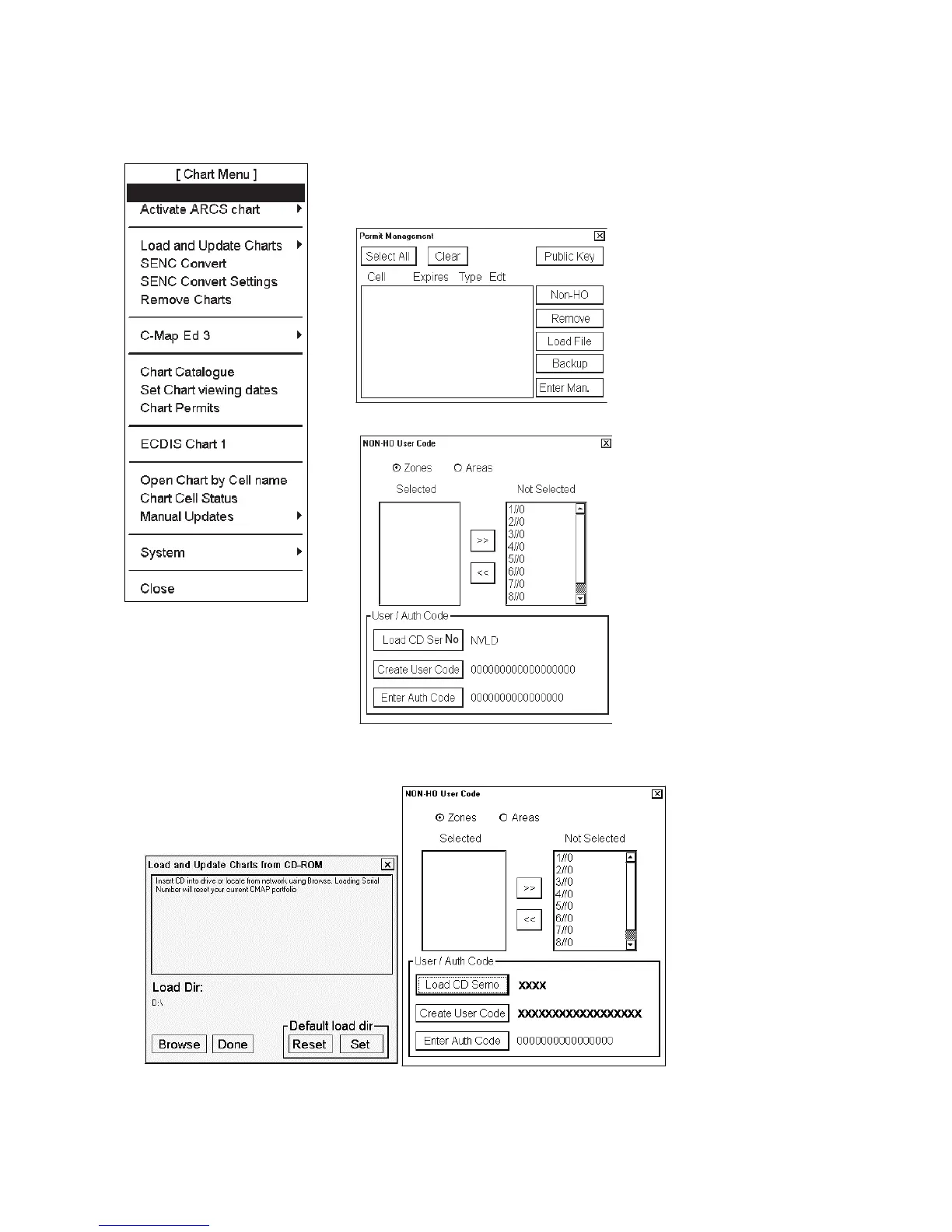

1. Spin the scrollwheel to show Menu/Info/Chart Menu in the mouse functions
area then push the right mouse button.
2. Choose Chart Permits from the menu then push the scrollwheel.
3. Click the Non-HO button to show the following window.
4. In the NON-HO User/Auth Code window, click the Load CD Ser no. button.
5. Insert your C-MAP CD ROM in the CD ROM-drive and choose desired drive.
6. The CD ROM serial number is shown in the SerNo field.
