Appendix 5: C-MAP CM-93/2 Charts
AP-54

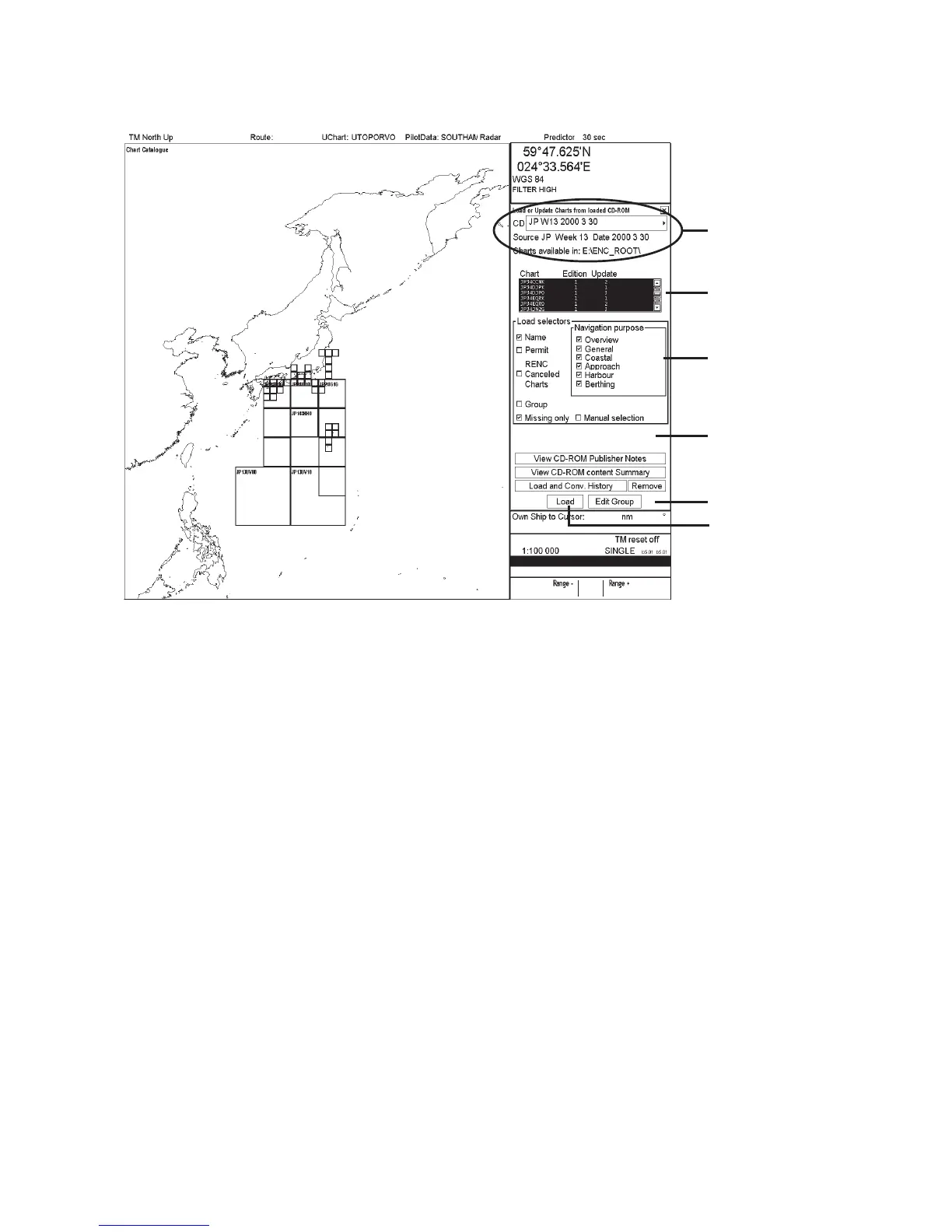

Interpretation of Load or Update Charts from loaded CD ROM window
1.
2.
3.
5.
6.
4.
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8
Kt
SB
(POSN)
1.7
Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0
Kt
1. The source and edition date of the CD is displayed here.
2. A list of charts stored in the CD ROM, edition number of the chart and the number of updates included in the
chart.
3. In the Load Selector field, you can choose how to pick desired charts from the list:
• Name: ECDIS will display chart names on graphical presentation if selected.
• Permit: ECDIS will highlight the charts which are available in the CD ROM and for which you have
permits.
• RENC Canceled Charts: ECDIS will display charts on display, which are canceled on RENC and normally
on CD-ROM.
• Group: If you have predefined a group of charts, ECDIS will highlight those charts in the group, which are
available in the CD ROM.
• Manual Selection: You can highlight desired charts from the list.
• Missing only, loads and displays on graphical presentation only charts and their updates, which are not
already loaded into the ECDIS.
4. View CD ROM Publisher Notes button is used to view important notices published by chart producer, View
CD ROM content Summary button is used to list charts available on CD-ROM and Load and Conv. History
button check what is loaded and converted from the CD ROM. The Remove button is used to remove the CD
ROM catalogue permanently from the ECDIS.
5. The Edit Group button is used to create and modify group. For more information, see section A5.2.7
Grouping S57 chart cells.
6. The Load button is used to start loading.
Note: The system can make conversion into the SENC and set the "Display Until" date automatically. This is the
recommended way. For how to do this, see section 8.4.2 Choosing automatic SENC conversion and displaying until
date.
