Furuno FEA-2107-BB - Page 93

8. Vector Chart Material
8-29

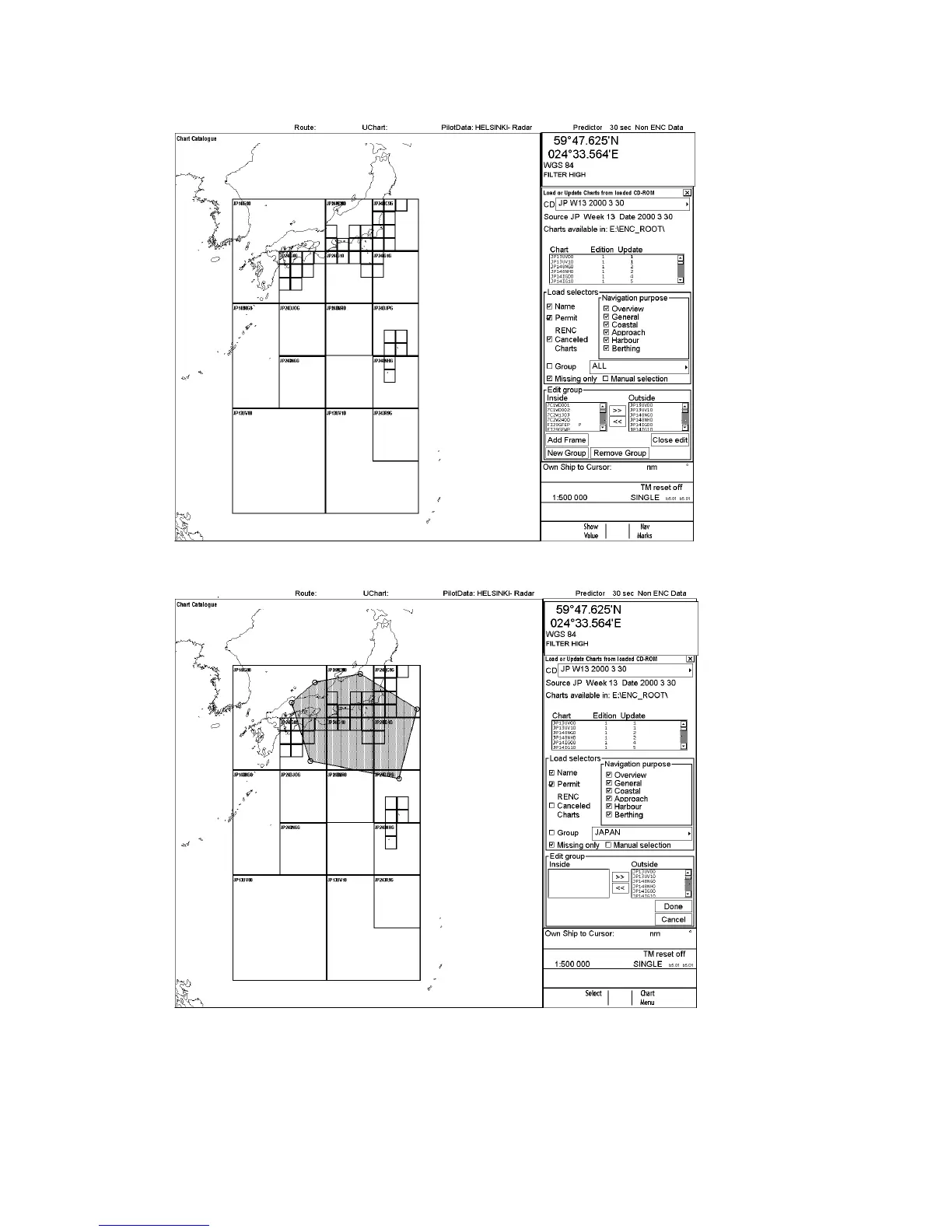

5. Click the Add Frame button.
North Up TM
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8 Kt
SB
(POSN)
1.7 Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0 Kt
6. Use the trackball to define a frame then the push the left mouse button.
North Up TM
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8 Kt
SB
(POSN)
1.7 Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0 Kt
7. When the frame is completed, click the Done button.
