Installation
4.3 System Cabling
The following sections describe the cabling and list the connections for the 7200
ACS. Cables must be connected from the antenna to the drive cabinet, from the
drive cabinet to the 7200 ACU, and from the antenna directly to the 7200 ACU.
Power must also be provided from CFE power distribution points to the drive
cabinet and ACU. Be sure the cables are connected correctly and securely
because proper functioning of the system during power-up is important for the
protection of the equipment and for timely completion of the installation. Refer to
Figure 4-2.

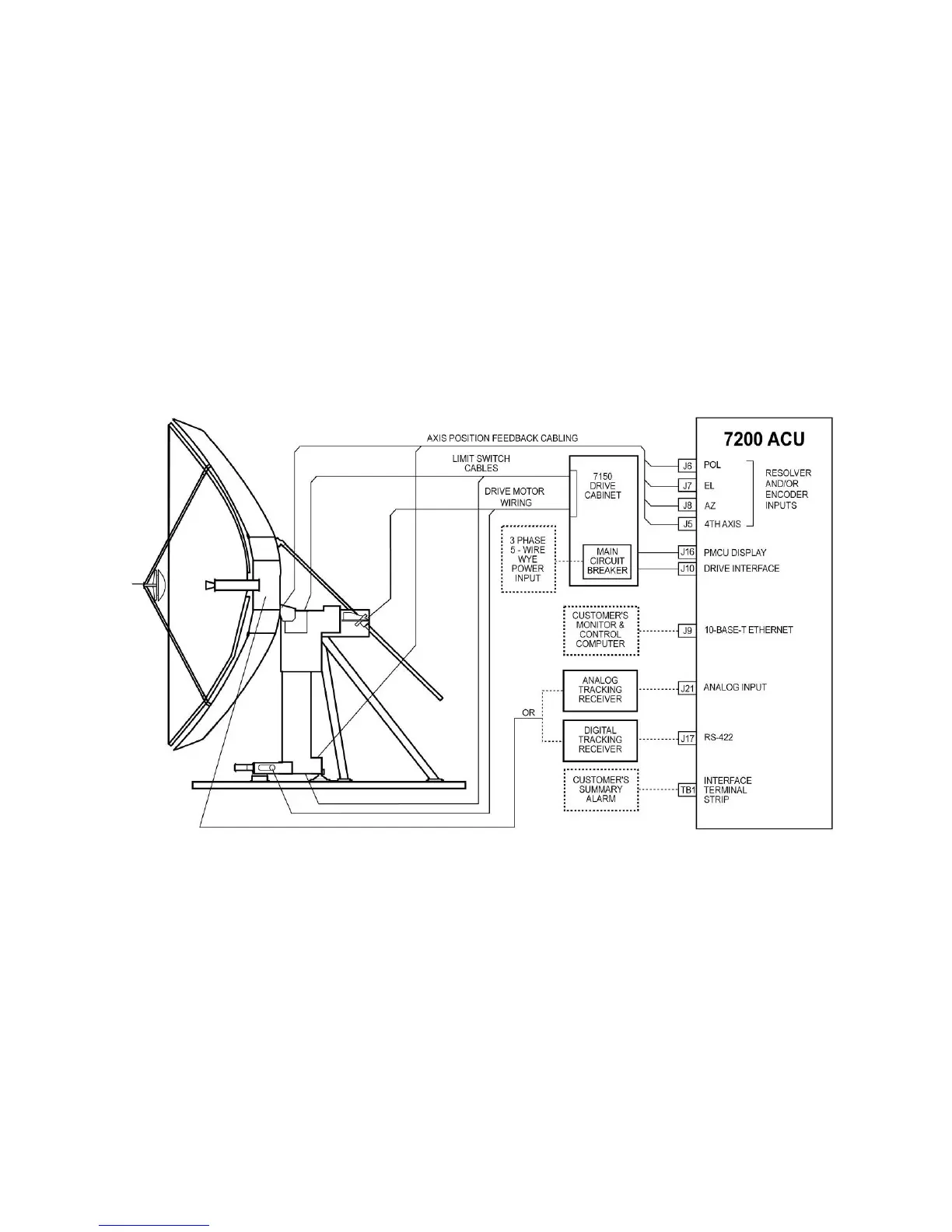

Figure 4-2 7200 Antenna Control System Cabling Diagram
4-4
