Program description - Control adjust | Helicopter models
• A servo connected to output 16 can be used,
independently of this, for other purposes by
means of mixers, provided that this servo is
decoupled from the operating element specied by
function input 16 via the »Mix only channel«
menu; see page 221.

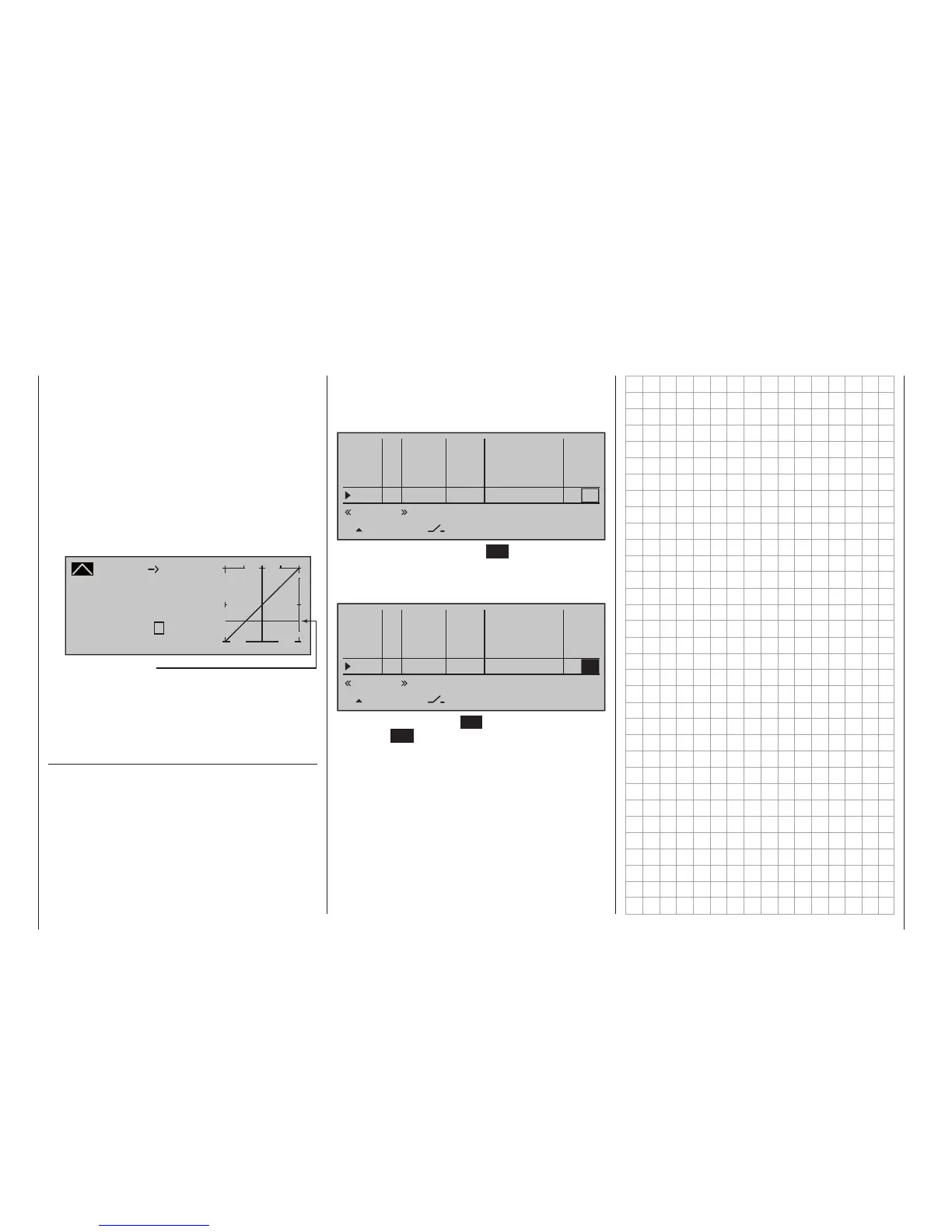

• The throttle restriction set by the throttle limiter
is shown as a horizontal bar in the throttle
curve diagram on the second display page
of the "Channel 1  Throttle" option in the
»Helicopter mixer« menu (see page 194).
The output signal for the throttle servo cannot be
higher than the level set by the horizontal bar:
Curve
off Point
Output
Input +50%
+50%
?
+
–
100
 O U T P U T
0%
+50%
actual position of the Throttle limiter
Channel 1
Throttle
The above diagram shows precisely this scenario:
in the above example, the throttle limit control
is set to about -60 % and thus restricts the
movement of the throttle servo to about -60 % of
full travel.
Time delay for the throttle limiter
To safely prevent the carburettor from opening too
rapidly, assign the throttle limiter input "Tl16" to a
time delay that takes effect only in the direction of full
throttle. This applies especially if the throttle limiter is
controlled by a switch rather than, as preset, with the
right-side proportional rotary slider.
To set a delay time, push the throttle limit control to
its forward limit or move the switch into its full-throttle
position then use the selection keys of the left or right
touch pad to select the "–time+" column.
0%
I13 +100%
I14
I15
Tl16
TYP
+100%
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100% 0.0 0.0
0%
+100%
+100%
0.0
GL
GL
GL
fr
fr
Lv1
---
---
---
Offset
GL
Normal
0.0 0.0
fr ---
0.0
SET
After a brief tap on the centre SET key of the right
touch pad, the selection keys of the left or right touch
pad can be used to select the desired time delay, e. g.
5 seconds.
0%
I13 +100%
I14
I15
Tl16
TYP
+100%
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100% 0.0 0.0
0%
+100%
+100%
0.0
GL
GL
GL
fr
fr
Lv1
---
---
---
Offset
GL
Normal
0.0 0.0
fr ---
5.0
SET
A brief tap on the centre SET key of the right touch
pad or the ESC key of the left touch pad will complete
the entry.
