What is a mixer?
What is a mixer?
Basic functionality
With many models, a mix of the model's functions
is often desirable, i. e. coupling aileron to rudder or
coupling two servos together, in cases where rudder
control surfaces with the same functionality are to be
controlled together using a single servo. In all cases,
the signal flow at the "output" of the control function
on the transmitter control-side "branches" – , this also
means: "downstream" of transmitter control options
such as e. g. »Dual Rate / Expo«, »Control adjust«,
»Channel 1 curve« etc. – in order for the signal to
have its predefined effect on the "input" of another
control channel and thus on another receiver output.

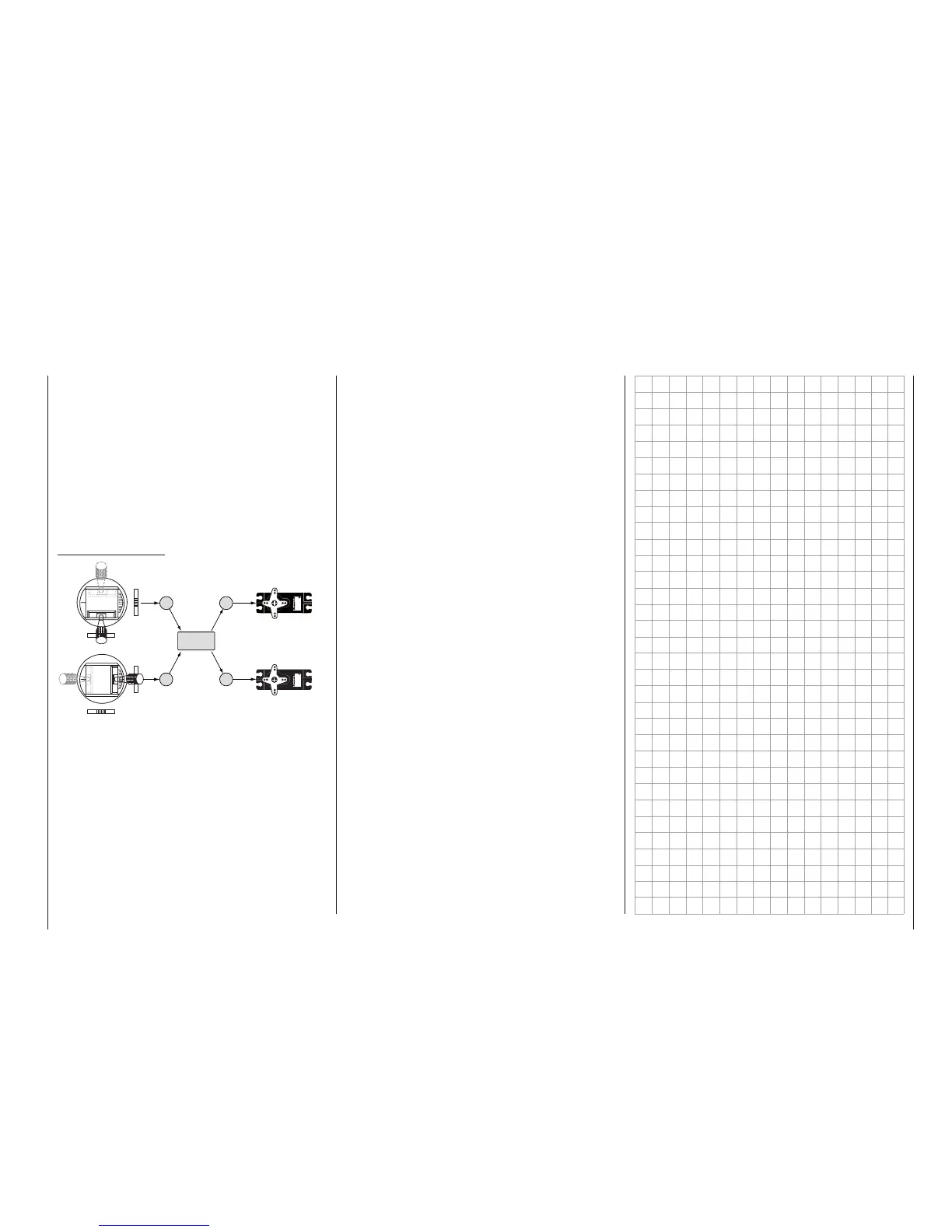

Example: V-tail mixer
3
3
4
Servo
4,8 V
C 577
Best.-Nr. 4101
Servo
4,8 V
C 577
Best.-Nr. 4101
4
V-tail mixer
Control channels
(receiver outputs)
Elevator stick
Rudder stick
Right rudder / elevator
Left rudder / elevator
Rudder
Elevator
Elevator
Rudder
Rudder
Elevator
The mc-32 HoTT transmitter software contains a
large number of pre-programmed coupling functions
as standard, which are designed to mix together two
(or more) control channels. Accordingly, the mixer
named in the example just above can be activated in
the "Tail" line of the »Model type« menu by selecting
"V-tail".
In addition, for each model memory in the fixed-wing
and helicopter programs , the software makes avail-
able a total of eight freely programmable linear mix-
ers, four freely programmable curve mixers and four
dual mixers.
Also be sure to read the general remarks about "free
mixers" in this manual, beginning on page 208.
