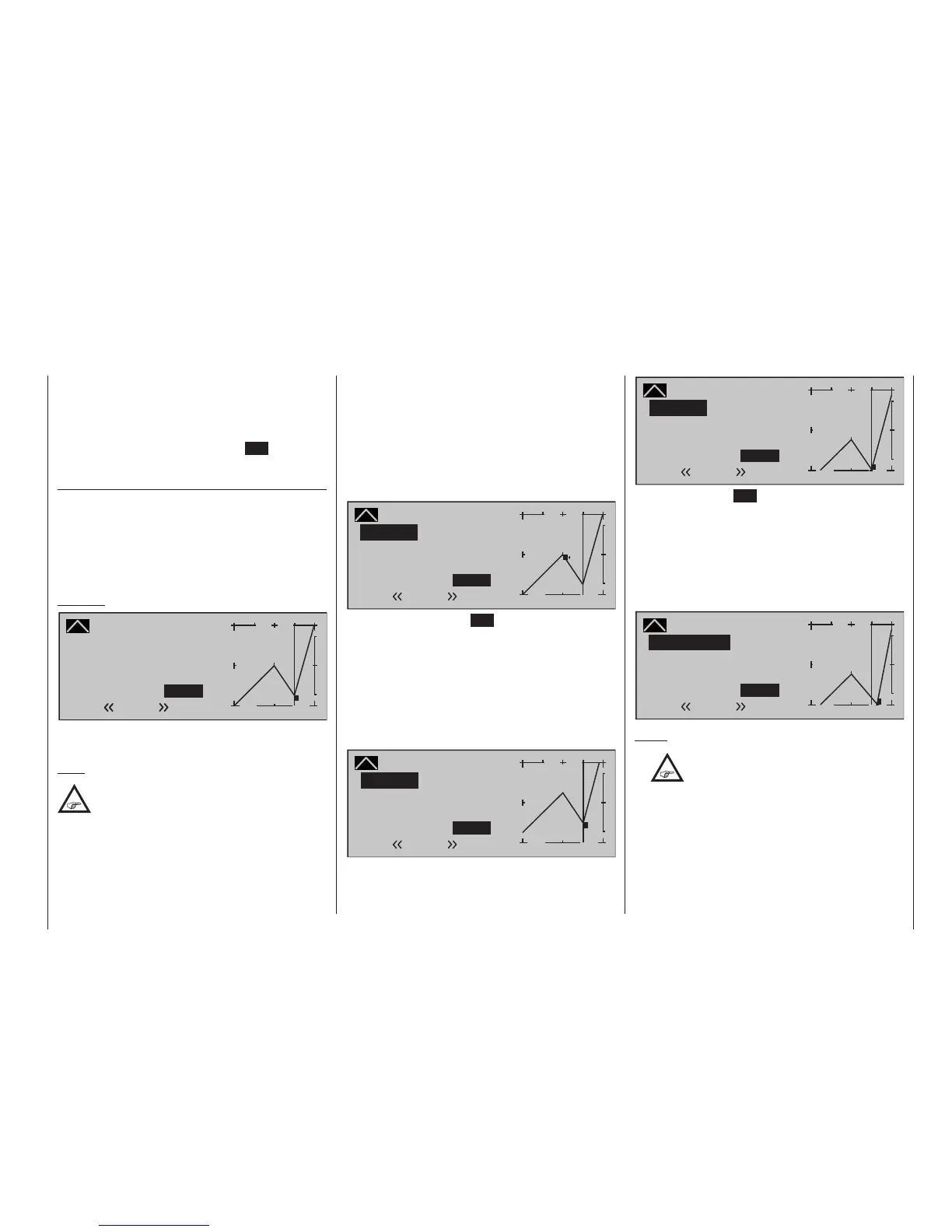

Program description - Channel 1 curve | Winged models
As soon as the reference point number and its cor-
responding value on the "Point" line are displayed in
inverse video, see figure above, these can be erased
with a simultaneous tap on the or keys of
the right touch pad (CLEAR). Complete the opera-
tion with a brief tap on the centre key ESC of the left
touch pad.
Changing reference point values
Move the stick into the range of the reference point
that is to be changed: "L" (low), 1 … 6 or "H" (high).
The number and current curve value of this point
are displayed. The reference point value displayed in
inverse video can be changed in a range of -125 % to
+125 % without influencing the neighboring reference
points.
Example:
Channel 1 CURVE
Curve
off Point
Output
Input +50%
–75%
2
+
–
100
O U T P U T
1
–75%
Normal
2
In this sample screen image, reference point "2" has
been set to -75 %.
Note:
If the stick does not coincide with the exact
reference point, please note that the
percentage value on the "Output" line always
relates to the current stick position.
Trim point function
Alternatively, jumping through active reference points,
in ascending or descending order, can be done with
the selection keys of the left touch pad. Note that
"active" reference points are those which have already
been set. When a jump is made from one to another,
the point value field for the jump's destination refer-
ence point in the screen's Point line will be displayed
in inverse video and its position in the graph will be
marked with the point's number (L, 1 … max. 6 and H)
in inverse video and a small triangle. The selection keys
on the right touch pad can then be used to change the
reference point jumped to as described above, entirely
independently of the control position.
Channel 1 CURVE
Curve
off Point
Output
Input +50%
–75%
1
+
–
100
O U T P U T
0%
2
Normal
Trim point
1
One touch on the centre ESC key of the left touch
pad terminates this trim point function.
Trim offset function
When a value field is active, i. e. in inverse video, it is
not only possible, as previously described, to jump to
and change a reference point already set with the
selection keys of the left touch pad but also an existing
curve can be vertically repositioned with the keys
of the left touch pad within a range of ±25 %.
Channel 1 CURVE
Curve
off Point
Output
Input +50%
–50%
2
+
–
100
O U T P U T
–50%
1
Normal
Trim offset
2
Channel 1 CURVE
Curve
off Point
Output
Input +50%
–100%
2
+
–
100
O U T P U T
–100%
1
Normal
Trim offset
2
A tap on the centre ESC key of the left touch pad will
also terminate this function.
Trim x-axis function
This function is activated by tapping the left () or
right () selection key of the right touch pad with an
active (i. e. inverse video) value field. You can then use
the selection keys on the right touch pad to reposition
the active point horizontally or vertically as you wish.
Channel 1 CURVE
Curve
off Point
Output
Input +50%
–83%
2
+
–
100
O U T P U T
–100%
1
Normal
Trim X-axis
2
Notes:
•
If the point is repositioned horizontally
further away from the current control
position than approx. ±25 %, a "?" sign will
reappear in the line Point. This question mark
does not refer to the repositioned point, however:
instead, it signies that a further point can be set
at the current control position.
• Please note that the percentage value on the
"Output" line always relates to the current stick
position and not to the position of the point.
