Transmitter description - Face-side connections
If a model memory is still “unnamed” the respective
log fi les can be found in a sub-folder designated “No-
Name” when the memory card is removed from the
transmitter and inserted into the card slot of a PC or
laptop. There is a PC program available on the trans-
mitter’s download web page at www.graupner.de with
which the stored data can be evaluated on a compat-
ible PC.
Importing voice les
As mentioned in section "Headsets", here at the right,
the transmitter's acoustic signals as well as those
signals and announcements associated with the
telemetry menu can be output by way of the headset
connector. These announcements are made in Ger-
man language by default. These announcements are
summarized in a voice packet which is stored in a
transmitter-internal memory but can be replaced by a
voice packet of a different language at any time. More
information about this can be found in the section
»SECRET MODE« beginning on page 35.
Transmitter rmware updates
The transmitter fi rmware can be updated and – if
necessary – replaced at this menu point, using the
procedure described in the previous section entitled
“Importing voice fi les”; the screen language can also
be changed here. For more details of this please refer
to the section entitled “SECRET MODE” which starts
on page 35.
In addition to a German can be found on the supplied
standard SD card at the time of revision of this guide
as an English, French, Dutch, Italian and Spanish
fi rmware version.
Corresponding updates and information, visit the
product page of each HoTT transmitter on www.
graupner.de.
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
RX VOLT 4.8V
Removing the memory card
Press the SD or SDHC card a bit further into the
card slot to release the slot's latch then pull out the
memory card.
Data acquisition / storage
The storage of data on the SD card is cou-
pled to the fl ight timer. If this timer is start-
ed – when a suitable memory card is inserted
in the card slot and a telemetry link to the receiver
exists – data acquisition is also started. Data acquisi-
tion will stop again when the fl ight timer is stopped.
The fl ight timer is started and stopped as described in
the section "Timers (general)" on page 165.
The amount of data written on the memory card is
presented as a black bar graph (
) which grows
from left to right as data fi lls the memory card .
After a data acquisition session is fi nished, there will
be an (empty) folder “Models” and a “LogData” folder
on the memory card. Within the “LogData” folder there
will be log fi les, that are designated with names in the
format 0001_year-month-day.bin, 0002_year-month-
day.bin, etc., in sub-folders named “model name”.

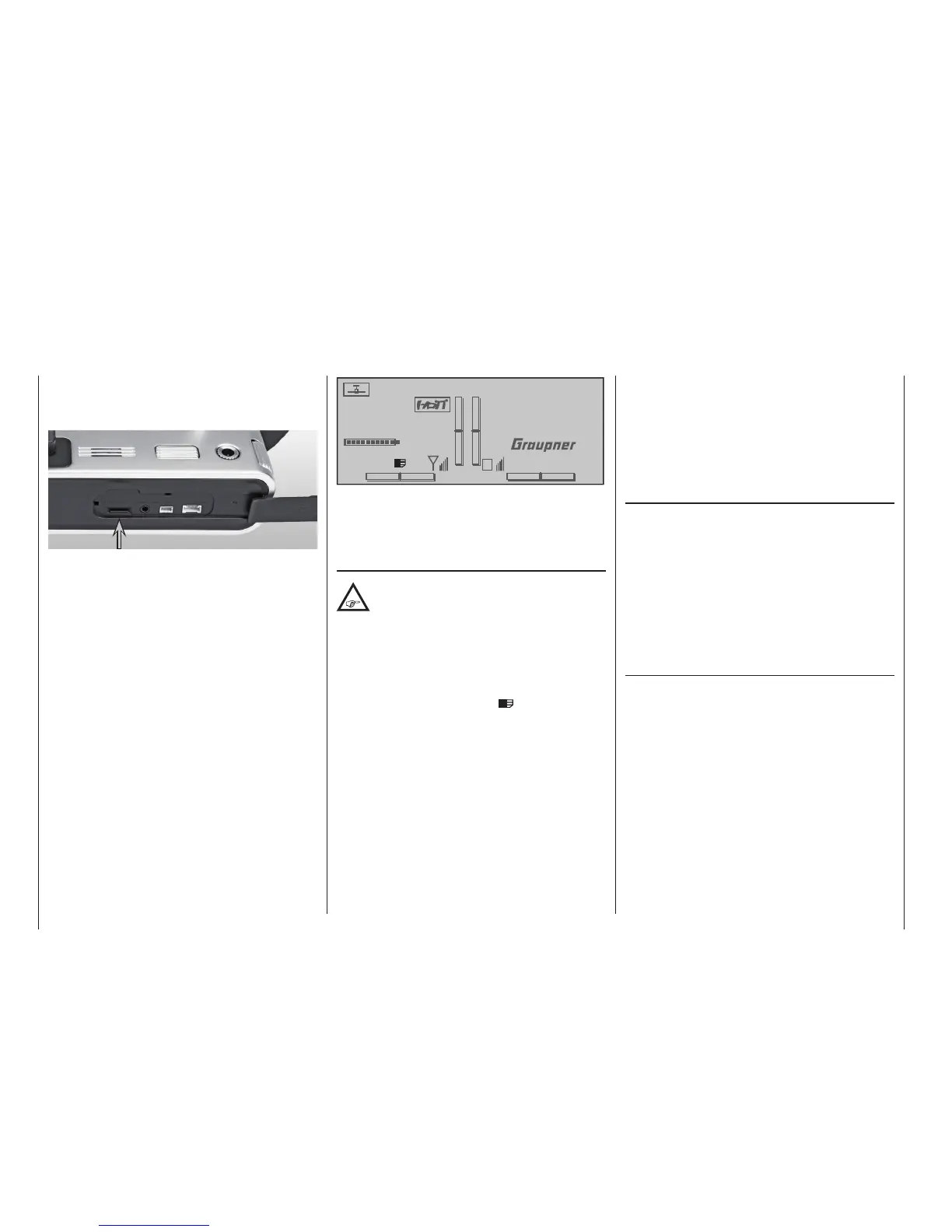

Card slot
micro SD and micro SDHC
The
mc-32 HoTT transmitter's card slot for type
micro-SD and micro-SDHC memory cards becomes
accessible once the right face-side cover has been
turned away.
All conventional micro SD memory cards up to 2 GB
and micro SDHC cards up to 32 GB storage capacity
can be used. However, as a manufacturer we recom-
mend the use of memory cards no larger than 4 GB as
this is completely adequate for all normal situations.
The type of memory card to be used in the transmitter
is that known in conjunction with digital cameras and
cell phones. It is to be pushed into the slot, contacts
up, until it latches, see photos above.
Once the memory card has been inserted, the trans-
mitter's cover fl ap can be closed again.
The stylized image of a memory card will appear in
the basic setup screen to indicate the presence of the
inserted memory card.
