114
Program description - Stick mode | Winged models
Both sticks are equipped for digital trimming. When
turning trim wheels, every "click" will shift the stick's
neutral position by a certain value.
The current position is shown on the screen and
the adjustment is also made "audible" with acoustic
tones. This makes finding the mid-point during flight
easy, without looking at the screen. If the mid-point is
overrun, a brief motion pause will be inserted.
Current trim values are automatically stored when a
model memory change is made.
Furthermore – except for global control function trim-
ming of the throttle/brake stick, commonly referred to
as control function "C1" (channel 1) – digital trimming
is effective within a model memory location selec-
tively as either a global parameter (i. e. consistent in
all flight phases) or as a flight-phase specific param-
eter. This specification as "global" or "phase" is made
in the »Stick mode« menu described here, whereas
software-side C1 trimming is generally set to "global",
i. e. independent of flight phases.
This setting is visualized in the base screen by a
"shadow" on trim bars:
• shadow present = global,
• no shadow = flight phase dependent.
In two corresponding figures below, elevator
trim – shown in the middle text column with its default
setting "global" – then in the right column set to flight
"Phase" specific.

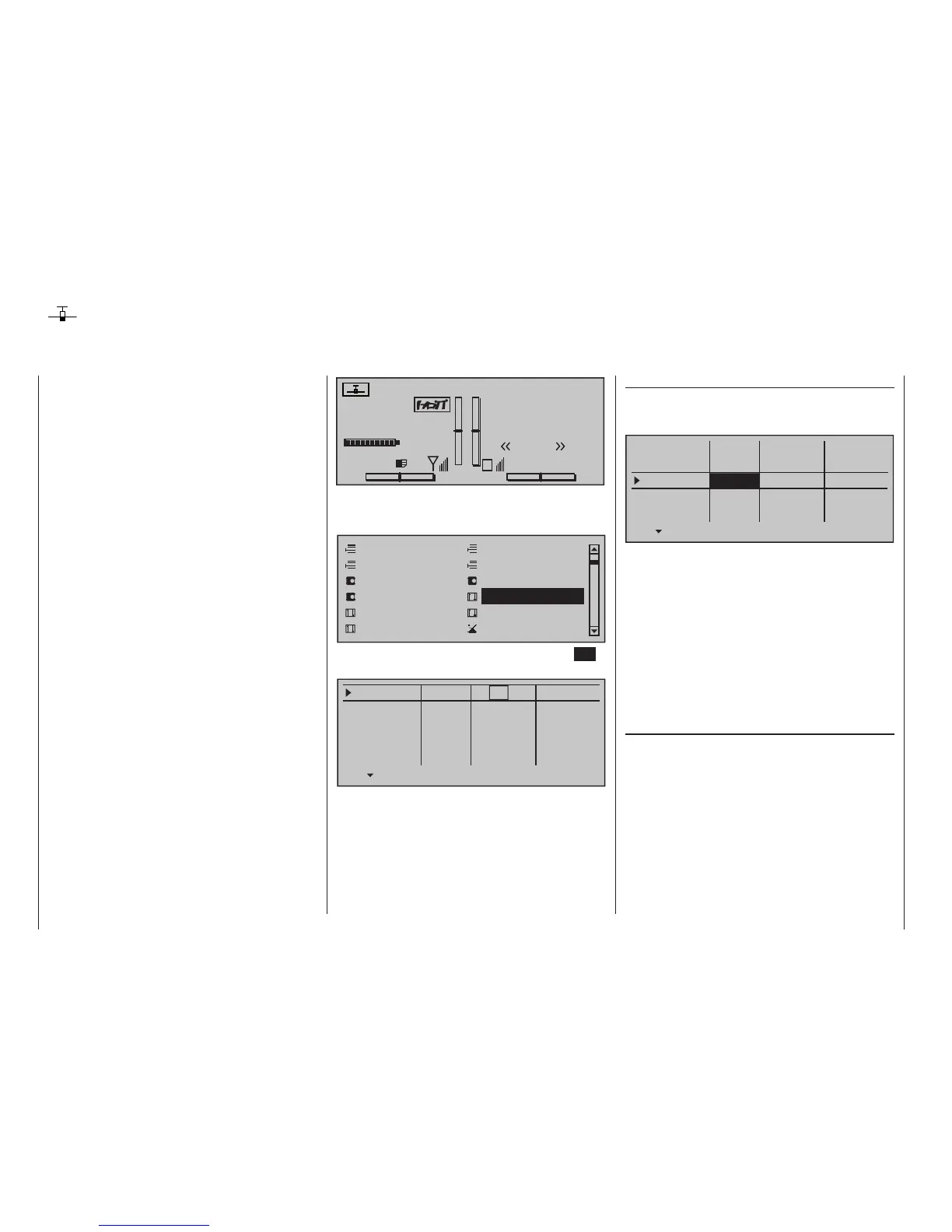

Stick mode
Setting stick mode 1 through 4
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
Graubele
H-J Sandbrunner
Normal
RX VOLT:4.9V
Use the selection keys on the left or right touch pad to
scroll to the »Stick mode« option in the multi-function
menu:
Model select
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Copy / Erase
Suppress codes
Suppress models
Base setup model
Model type
Open this menu option with a tap on the centre SET
key of the right touch pad.
global
Channel 1
Aileron
Elevator
Rudder
Tr i m
0.0s
Tr. step – time +
global
0.0s
global
0.0s
global
0.0s
0.0s
0.0s
0.0s
0.0s
4
4
4
4
Trim
Except for "Channel 1", this column can be used to
switchover trim effect from "GL(obal)" to "PH(ase)"
and vice versa.
global
Channel 1
Aileron
Elevator
Rudder
Tr i m
0.0s
Tr. step – time +
global
0.0s
Phase
0.0s
global
0.0s
0.0s
0.0s
0.0s
0.0s
4
4
4
4
"Global": The position of the respective trim wheel is
effective "globally" for all flight-phases pro-
grammed for the given model, page 140.
"Phase": The position of the respective trim wheel
is effective on a phase-specific basis and
will be automatically stored upon change
of flight phase so that the setting is again
available following a return to this flight
phase.
A simultaneous tap on the or keys of the
right touch pad (CLEAR) will reset the option back to
"Global".
Trim steps
The four digital trim wheels shift the neutral point of
the respective stick in the given direction by one ad-
justable increment, as set here, for each "click". This
is where the increment size (step) can be adjusted
for a given direction, whereby maximum trim travel,
independent of the selected number of trim steps, is
always about ±30 % of control travel.
