Helicopters - Receiver layout
Notice for those transitioning from older
Graupner systems:
In comparison to previous receiver layouts,
servo connector 1 (pitch servo) and servo
connector 6 (throttle servo) have exchanged
places. Servos must be connected to receiver
outputs as illustrated at the right in the bottom gure.
Outputs which are not used are simply left empty.
More details about respective swashplate types can
be found on page 98 in the »Helicopter type«
menu.
Installation notices
Servos MUST be connected to the receiver
in the sequence illustrated here.
Outputs which are not used are simply left empty.
For more details on each swash plate type in the
menu »Helicopter type«, see page 108.
Also be sure to follow the notices on the next pages.
Note:
To use the comfort and safety features of the
throttle limiter (see page 128), and a speed
controller against the adjacent receiver
occupancy is instead to receiver output “8“ to the
receiver output “6“ to connect. Refer to page 196
Receiver allocation for helicopter models with
1 to 3 swashplate servos
Receiver power supply
Receiver power supply
13 14 T
15 16
S
77
8
9
10 11 12
Receiver power supply
Telemetry connection
Receiver power supply
free or aux. function
free or aux. function
SUMO / SUMI-connection
Receiver power supply
Receiver power supply
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or aux. function
Tail rotor servo (gyro system)
Roll-1 servo
Pitch-axis 1 servo
frei or speed governor or aux. function
Collective pitch or roll 2 or pitch-axis 2 servo
free or aux. function
Throttle servo or speed controller
Gyro gain

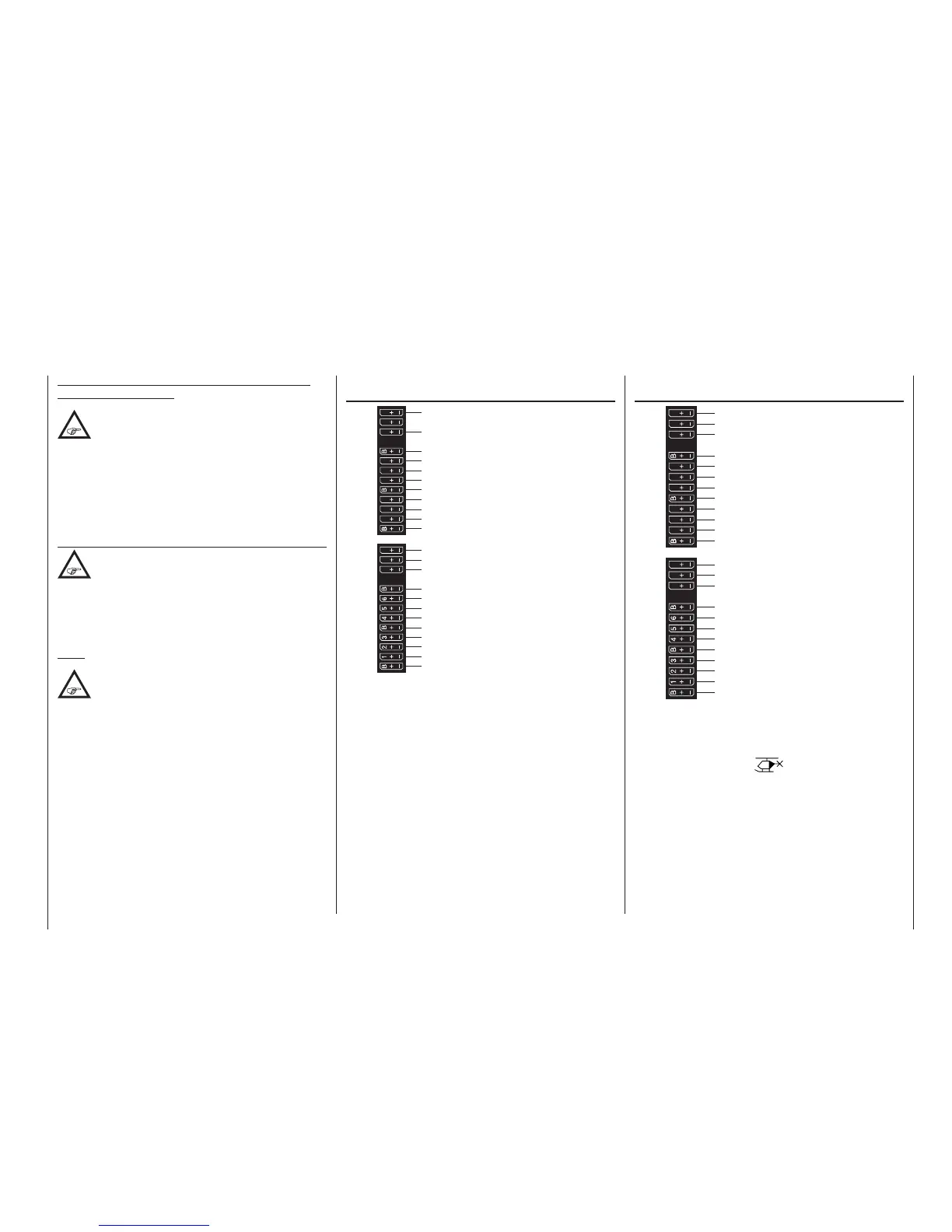

Receiver allocation for helicopter models with
4 swashplate servos
Receiver power supply
Receiver power supply
13 14 T
15 16
S
77
8
9
10 11 12
Receiver power supply
Telemetry connection
Receiver power supply
free or aux. function
free or aux. function
SUMO / SUMI-connection
Receiver power supply
Receiver power supply
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or speed governor or aux. function
Throttle servo or speed controller
Gyro gain
Tail rotor servo (gyro system)
Roll 1 servo
Pitch-axis 1 servo
Roll 2 servo
Pitch-axis 2 servo
