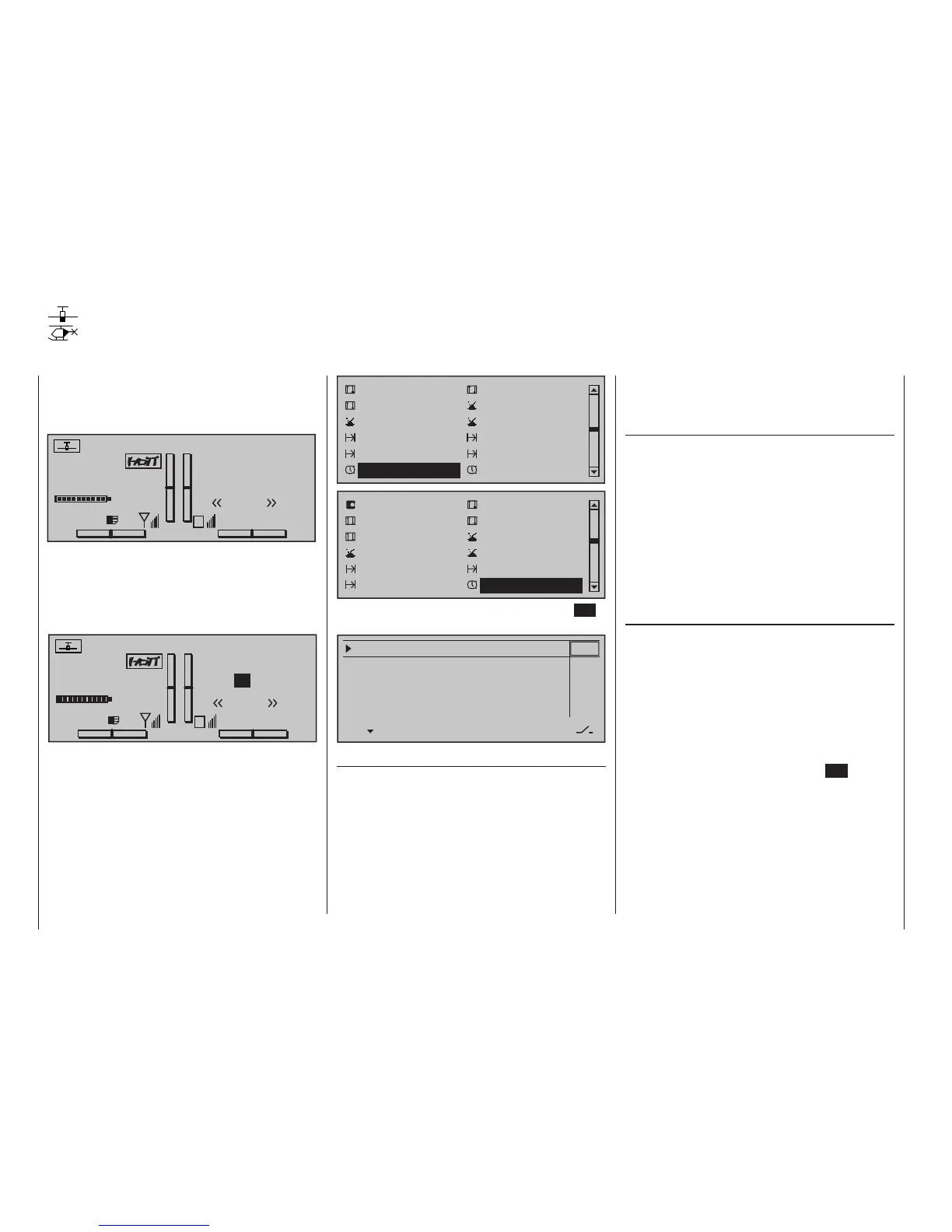

164
Program description - Timers (general)
Timers (general)
Timers on the basic display
The default transmitter display shows a total of three
timers. These are: the transmitter operating time on
the left of the display, plus a "Top" and a "Centr" timer
on the right of the display:
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
Graubele
H-J Sandbrunner
Normal
Runde
00
RX VOLT:4.9V
Another, flight-phase specific timer can also be con-
figured with settings in the two menus »Flight phase
timers«, page 168, and »Phase settings«, pages
154 and 158. This optional flight phase timer – such as
the lap time timer – appears underneath the "Centr"
(flight time) timer:
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
Graubele
H-J Sandbrunner
Normal
Lap
00
0.0s
RX VOLT:4.9V
To configure the "Top" and/or "Centr" timer, use the
selection keys on the left or right touch pad to access
the menu option »Timers (general)« in the Multi-
function menu:
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Control switch
Logical switch
Phase settings
Phase assignment
Phase trim
Non-delayed chan
Timers (general)
Fl. phase timers
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Control switch
Logical switch
Phase settings
Phase assignment
Non-delayed chan
Timers (general)
Open this menu option with a tap on the centre SET
key of the right touch pad.
Model time
Batt. time
Top :Stop watch
Centr:Flight tim
Timer
–––12:34h
1:23h
0:00
0:00
0s
0s
–––
–––
CLR
"Model time"
This timer shows the currently registered total access
time to the currently active model memory location. If
necessary, this automatic time acquisition can also be
influenced by assigning an on/off switch to this "Mod-
el time" timer in the rightmost column labeled with
the switch symbol. This timer can then be switched
on and off as desired. This switch is assigned (and
erased again as required) as described in the section
"Assigning transmitter controls, switches and control
switches" on page 60.
A simultaneous tap on the or keys of the
right touch pad (CLEAR) will reset the time back to
"0:00 h".
"Batt. time"
This operating hours timer records the transmitter's
total switch-on time since the last time the battery
was charged, thus monitoring the transmitter battery.
A switch cannot be assigned to this function.
This timer is automatically reset to "0:00 h" when the
transmitter detects that the voltage of the battery is
significantly higher than the last time it was switched
on, e. g. as a result of a charge process or the instal-
lation of a replacement battery.
A simultaneous tap on the or keys of the
right touch pad (CLEAR) will also reset this time back
to "0:00 h".
"Top" and "Centr"
These two timers are located at the top right of the
basic display (see the screen image immediately to
the left) and can be assigned a different name; their
function and mode of operation varies according to
the name you give them. Independently of the name
each is given, the "Top" and "Centr" timer can be
programmed to run any length of time forwards or
backwards – see further below.
Now use the selection keys of the left or right touch
pad to select your desired timer and complete your
selection with another tap on the centre SET key of
the right touch pad:
