Program description - Switch display

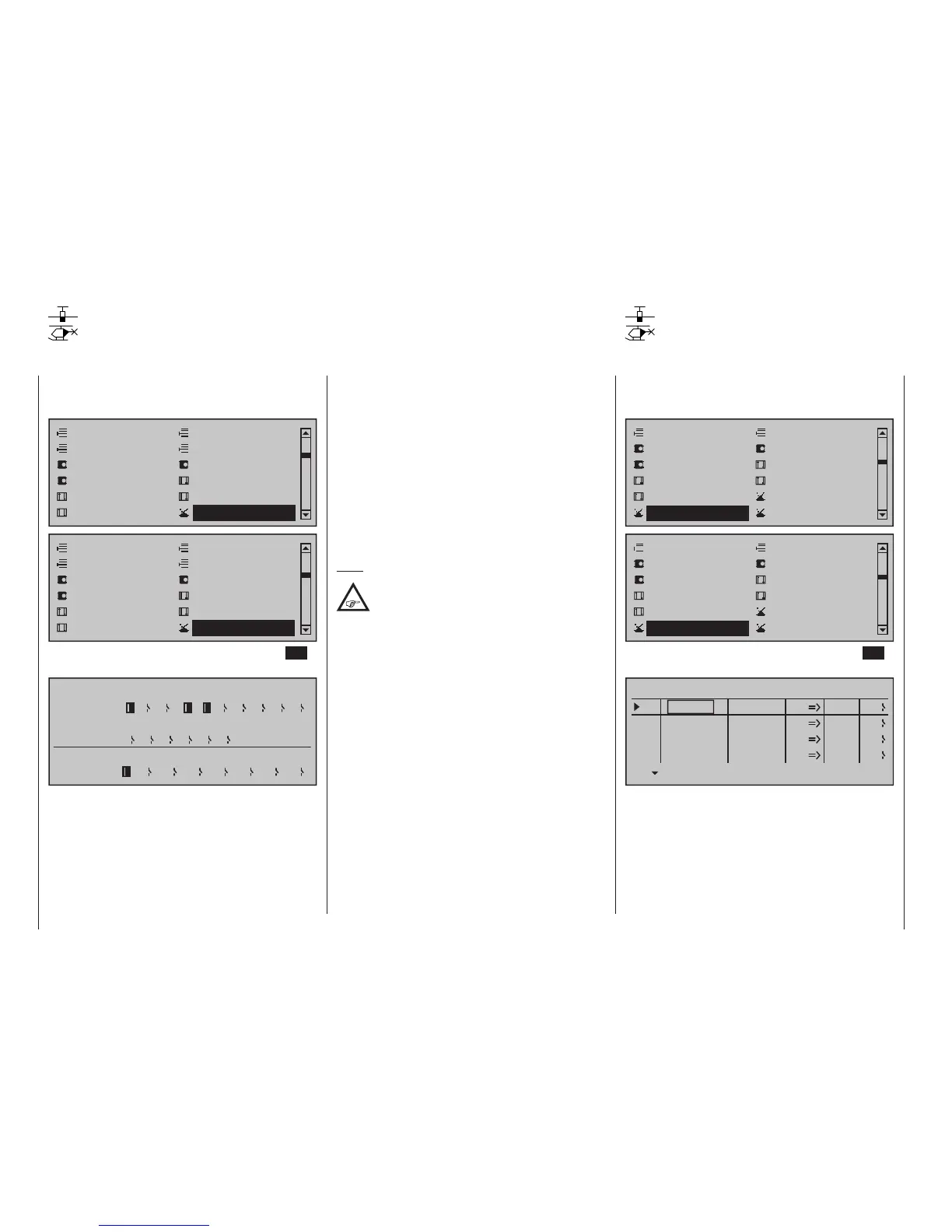

Switch display
Displaying switch positions
Use the selection keys on the left or right touch pad
to scroll to the »Switch display« option in the multi-
function menu:
Model select
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Copy / Erase
Suppress codes
Suppress models
Base setup model
Model type
Model select
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Copy / Erase
Suppress codes
Suppress models
Base setup model
Helicopter type
Open this menu option with a tap on the centre SET
key of the right touch pad.
Switch
Contrl
1
C1 C2 C3
C8
2 3 4 5 6 7 8 9 10
11 12 13 14 15 16
switch
C4
C5
C6 C7
This feature is used to check the functions and give
an overview of switches 1 … 16 and the programma-
ble control switches C1… C8.
If a switch is pressed, the switch number is revealed
by one of the display items changing from an OFF to
an ON symbol (or vice versa). To improve the legibility
of this screen, a closed switch field is also shown in
inverse video (i. e. on a dark background).
For control switches C1 … C8, activation of the cor-
responding transmitter control – which must have
been previously assigned on the »Control switch«
menu – will reveal the control switch number and
direction.
Note:
Switch numbering 1 to 16 as shown here
corresponds to the labelling of switch plug-in
locations on the transmitter's circuit board.
The numbering of the switches has no effect on the
programming of the transmitter, however.
Control switches
Programming the control switches
Use the selection keys on the left or right touch pad
to scroll to the »Control switch« option in the multi-
function menu:
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Suppress codes
Suppress models
Base setup model
Model type
Control switch
Logical switch
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch Display
Suppress codes
Suppress models
Base setup model
Helicopter type
Control switch
Logical switch
Open this menu option with a tap on the centre SET
key of the right touch pad.
SEL
0%
0%
0%
C1
C2
C3
–––
C4
CONTROL SWITCH
Geb. 1
Geb. 1
0%
STO
–––
–––
–––
SEL
C1
C2
C3
C4
free
free
free
free
With many functions, it makes sense not to trigger
their actuation by using one of the normal switches,
but to trigger them automatically by the specific, freely
programmable position of a transmitter control or
stick.
