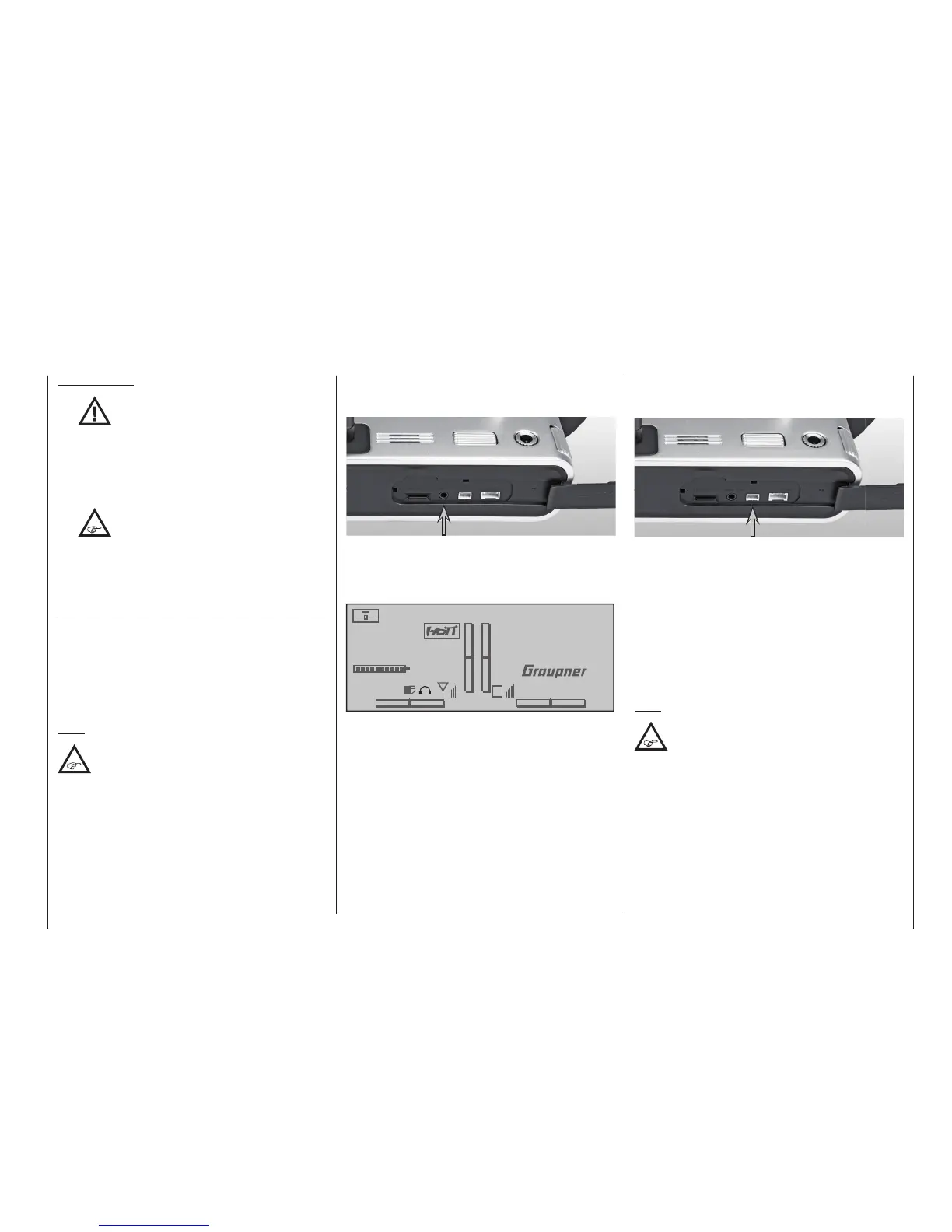

Transmitter description - Face-side connections
Once the right face-side cover has been moved away,
the
mc-32 HoTT transmitter's headset connector is
accessible:
The jack is intended for connecting conventional ear-
plugs or a headset by way of a 3.5 mm TRS plug. (not
included in the set) An appropriate symbol will appear
in the basic display when a headset is connected.
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
RX VOLT:4.8V
The transmitter's acoustic signals as well as those
signals associated with the telemetry menu are out-
put via this connection. These announcements are
made in German language by default. More about
this can be found under "Voice output" in the section
»SECRET MODE« beginning on page 35 and »Te-
lemetry« beginning on page 244.
The volume of signals and voice output sent to
the headset can be adjusted individually in the
lines "Voice volume", "Vario volume", and "Touch-
beeps vol." of the »General basic settings« menu,
page 275.
Headset connector
An external RF module, for example a WEATRONIC
module, can be connected to this jack, see illustration
below.
An external RF module, for example a WEATRONIC
module, can be connected to this jack.
If an external RF module is attached, then switching
between the external module and the internal HoTT
RF module is accomplished in the "Module" line of
the »Basic settings, model« menu, page 83 or 94,
by selecting either "HoTT" or "EXT.PPM". If neces-
sary, the signal provided on this connection can be in-
verted by selecting the appropriate option for the line
"ext. PPM signal" in this same menu, see page 87 or
96.
Note:
The "INT PPM" socket located inside the
transmitter is also suitable for this purpose.
However, a connecting cable must be passed
through to the outside of the transmitter housing by
way of one of the module openings originally intended
for a switch.
EXT.PPM
Important notes:
• Any claims will not be considered
without the presence of a log fi le.
For the same reason the
transmitter must always be updated to
the latest software version. Keep in
mind, however, that for technical
reasons during playback of MP3 fi les
NO data recording is possible.
•
To be always informed about
important software updates, you
should register at https: // www.
graupner.de/de/service/
produktregistrierung.aspx. Thus, you
will be automatically notifi ed via email
about new updates.
Importing/exporting model memories
Any model memory can be stored to an inserted
memory card or from an inserted card into the trans-
mitter. This feature is intended to support data ex-
change between identical transmitters or even use
as data backup. More information about this can be
found in the section »Copy / Erase« beginning on
page 74.
Note:
Some special symbols that can be used in
model names are subject to speci c
restrictions associated with the FAT or FAT32
le system used by the memory cards and these
special symbols will be replaced during the copy
process with a tilde (~).
