180

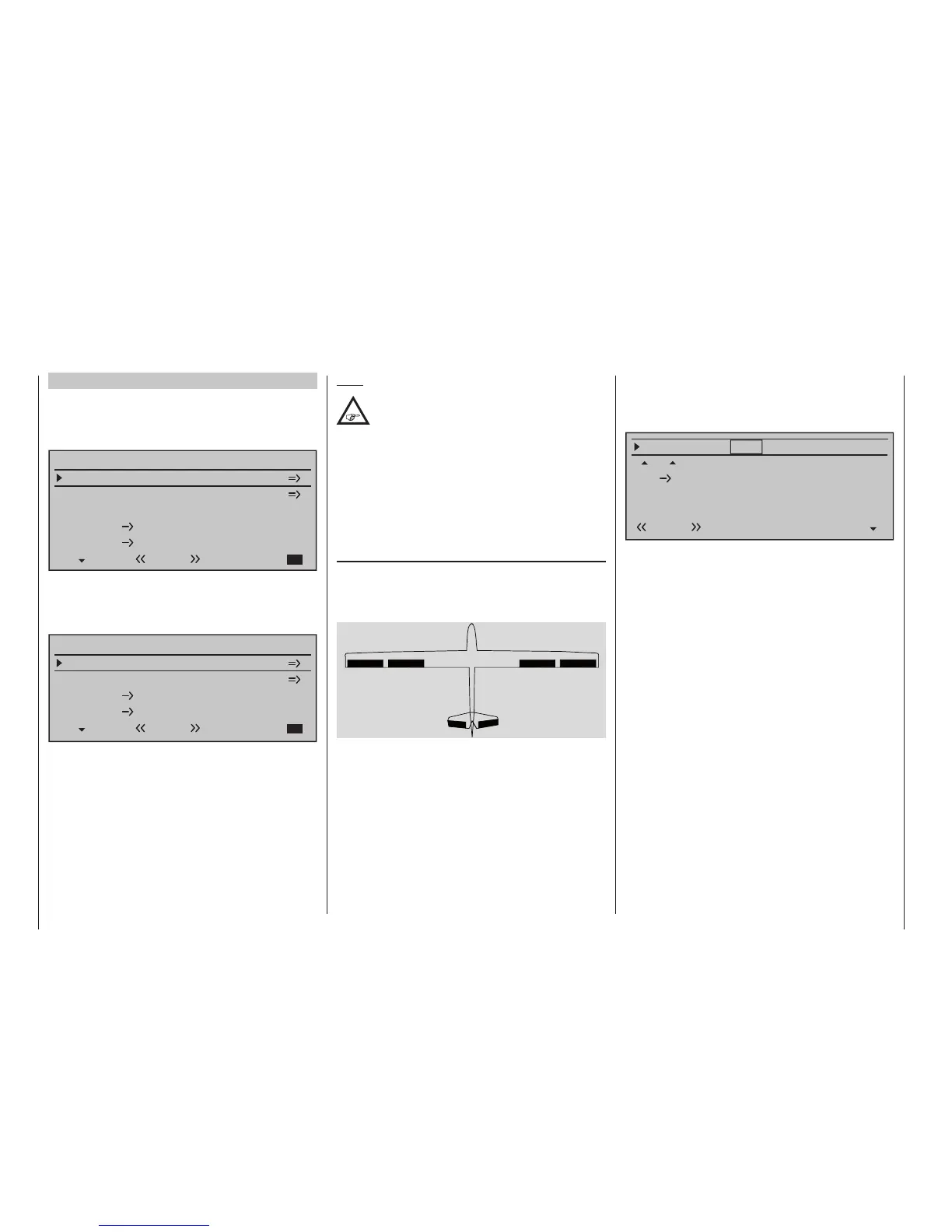

Program description - Wing mixers
Model type: "2/4AIL 1/2/4FL"
If you have entered "2AIL 1FL" for the "Aileron/cam-
ber flaps" line on the »Model type« menu (page 105),
then the "Wing mixers menu" on your transmitter will
match the following screen image:
Aileron differential
Brake settings
0%
Aileron
0%
WING MIXERS
Flaps
elevator
0%0%
–––
–––
rudder
2
6
4
3
Normal
Multi-flap menu
If, on the other hand, "2/4AIL 1/2/4FL" has been en-
tered for the "Aileron/camber flaps" line of the »Model
type« menu, then the "Wing mixers menu" on the
transmitter should correspond to the figure below:
Brake settings
Aileron
0%
WING MIXERS
Flaps
elevator
0%0%
–––
–––
rudder
2
6
4
3
Normal
Multi-flap menu
Regardless of the combination of aileron and flap ser-
vos you choose, all of the parameters available can
be adjusted separately for each flight phase.
Note:
For almost any menu option, you have the
option of checking your settings by switching
to the servo display screen, which is accessed
with a simultaneous tap on the selection keys of
the left touch pad. If you do, note however that the
vertical lines on the »Servo display« move in the
same direction for ailerons and in the opposite
direction for aps.
Before we address the details of this menu we would
like to provide a brief explanation of the different dis-
play modes for the multi-flap menu:
Model type: "2 AIL 1 FL"
If servos have been connected to the receiver as
described on page 65 and selected accordingly in the
»Model type« menu, page 105, then the abbrevia-
tions "AILE" and "FLAP" refer to the following flaps:
AI
left
FL FL AI
right
Since the options available on the wing mixer menu
and its sub-menus vary according to the number of
flap servos specified on the »Model type« menu, the
list contains only those set-up options available for
the given model.
Therefore, with a preset to "2AIL 1FL", the options for
setting aileron functions to flaps will be suppressed,
as will all setting options throughout the (right-side)
column labeled "FL2".
Fl.pos
AILE
FL
0%
Normal
HR
WK
WK2
FLAP
+100%
0%
0%
+100%
+100%
+100%
0%0%
0%
0%
0%0%
In addition, the settings for "Aile(ron) diff(erential)"
are not found on the "multi-flap menu", as with "2AIL
2/4FL", but one level higher in the "Wing mixers"
menu, see the screenshot at top left.
