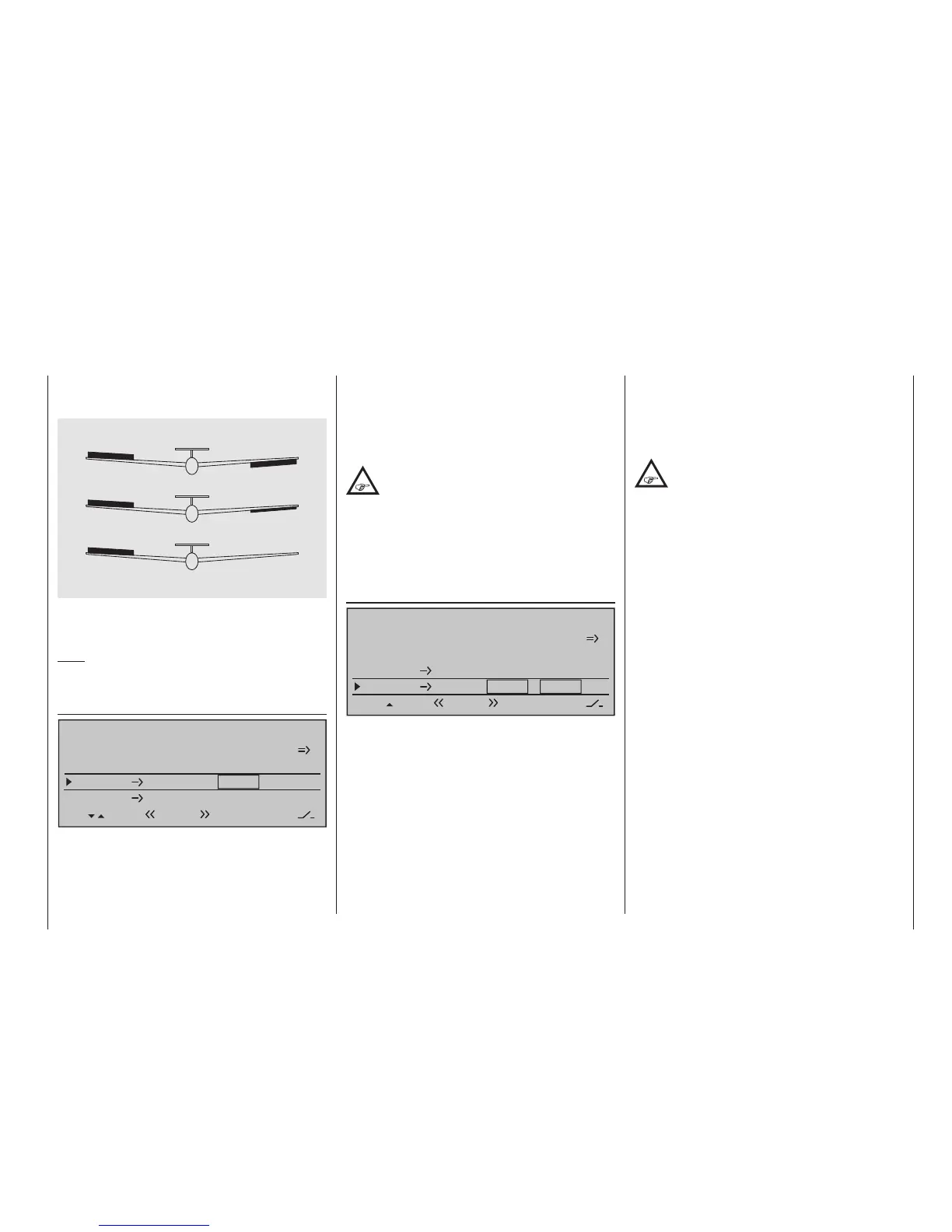

Program description - Wing mixers
The split setting (-100 %, +100 %) is popular with
slope fliers, where ailerons alone are often used for
turning the model.
0% (normal)
50% (differential)
100% (Split)
A simultaneous tap on the or keys of the
right touch pad (CLEAR) will reset a changed value
in an active (inverse video) field back to 0 %.
Note:
Negative values are not usually necessary if channels
are assigned properly.
Aileron 2 4 rudder
Aileron differential
Brake settings
0%
Aileron
0%
WING MIXERS
Elevator
aileron
0%0%
–––
–––
rudder
2
3
4
5
Normal
Here, you can set the degree to which the rudder
follows commands acting on ailerons. This is used
in particular in connection with aileron differential to
suppress adverse yaw and thus make it easier to fly
"clean" curves. You can of course still issue separate
commands to the rudder.
The adjustment range of ± 150 % lets you set the
direction of deflection as appropriate. Optionally, this
mixer can be activated and deactivated with of the
switches or a control switch that is not self-restoring
so the model can be controlled with only the ailerons
or rudder if desired.
Typically, this mixer is set so that the rudder is
deflected to the same side as the upward-
oriented aileron, and you will find that setting
a value of around 50 % is usually highly appropriate.
Settings are always made symmetrically relative to
the neutral point of the aileron stick.
A simultaneous tap on the or keys of the
right touch pad (CLEAR) will reset a changed value
in a given active (inverse video) field back to 0 %.
Elevator 3 5 aileron
Aileron differential
Brake settings
0%
Aileron
0%
WING MIXERS
Elevator
aileron
0%0%
–––
–––
rudder
2
3
4
5
Normal
To provide support for the elevator for tight turns and
aerobatics, this mixer can be used to make the ai-
leron function follow controls sent to the elevator. The
mixer direction chosen must ensure that the flaps are
deflected downwards when the elevator is oriented
upwards and vice versa for a downward-oriented
elevator – i. e. in opposite directions. This mixer can
be made optionally on/off switchable with one of the
switches or a control switch that is not self-restoring.
To configure symmetrical mixer values, move the
elevator stick to its centre position, so that the marker
frame surrounds both value fields. To configure asym-
metric values, move the transmitter control to the
corresponding side.
Values in the range -150 % to +150 % are possible, so
as to adjust the function to the direction of servo rota-
tion or direction of aileron deflection.
A simultaneous tap on the or keys of the
right touch pad (CLEAR) will reset a changed value
in a given active (inverse video) field back to 0 %.
The "usual" values for this mixer are in the
low two-digit range.
