Transmitter description - Display and keypad

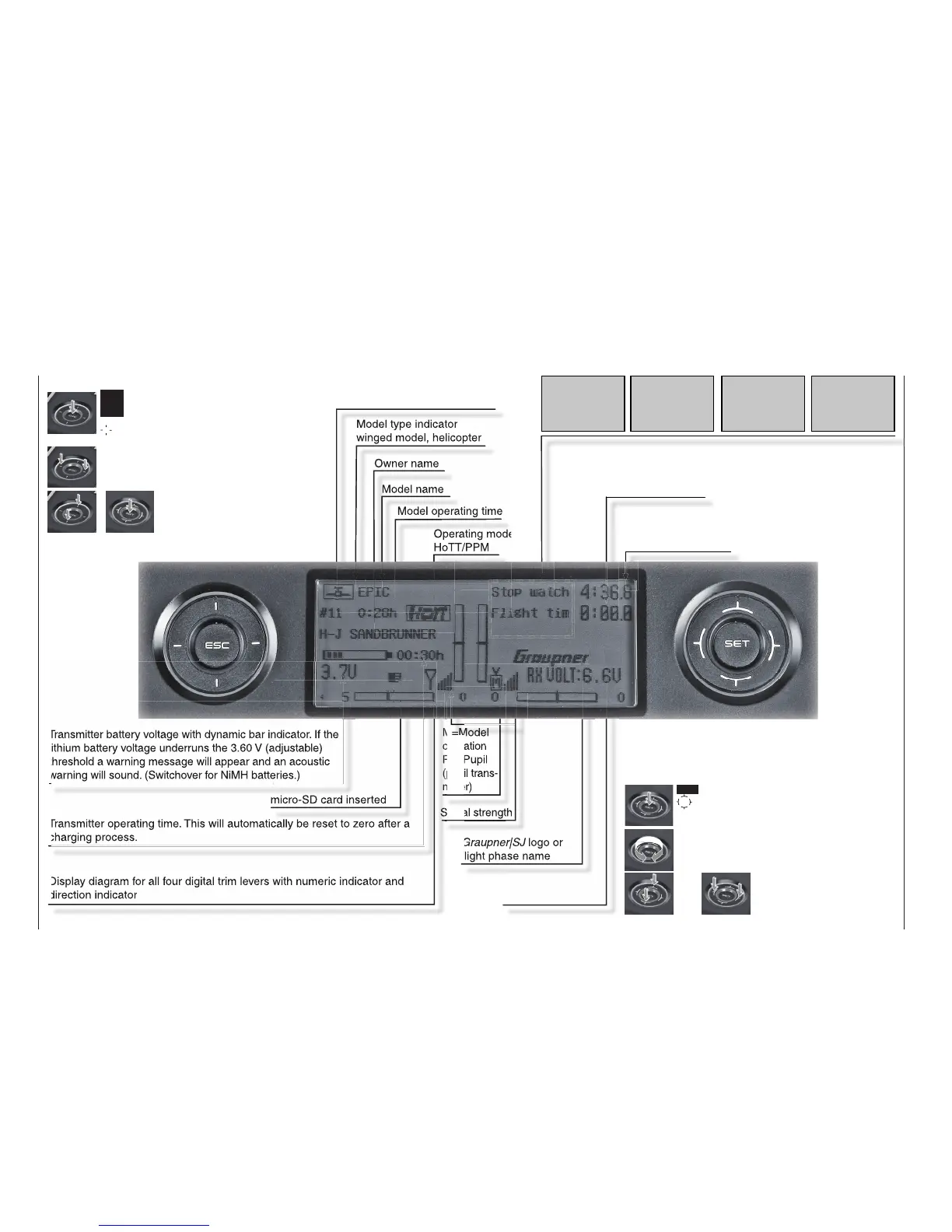

Display and keypad
Stopwatch in min:s
(upward/downward)
Flight timer in min:s
Model memory location 1 … 80
Transmitter battery voltage with dynamic bar indicator. If the
lithium battery voltage underruns the 3.60 V (adjustable)
threshold a warning message will appear and an acoustic
warning will sound. (Switchover for NiMH batteries.)
Transmitter operating time. This will automatically be reset to zero after a
charging process.
Model type indicator
winged model, helicopter
Display diagram for all four digital trim levers with numeric indicator and
direction indicator
Graupner|SJ logo or
fl ight phase name
Model name
Operating mode
HoTT/PPM
Receiver battery
voltage RX-SPG
Operating mode
Model operating time
Owner name
micro-SD card inserted
Signal strength
M=Model
operation
P = Pupil
(pupil trans-
mitter)
M=Model
No
pupil
signal!
Throttle
too
high!
Batt. must
be re-
charged!!
Fail Safe
setup
t.b.d.
A selection of potential warnings and notices. More about this on page 33.
