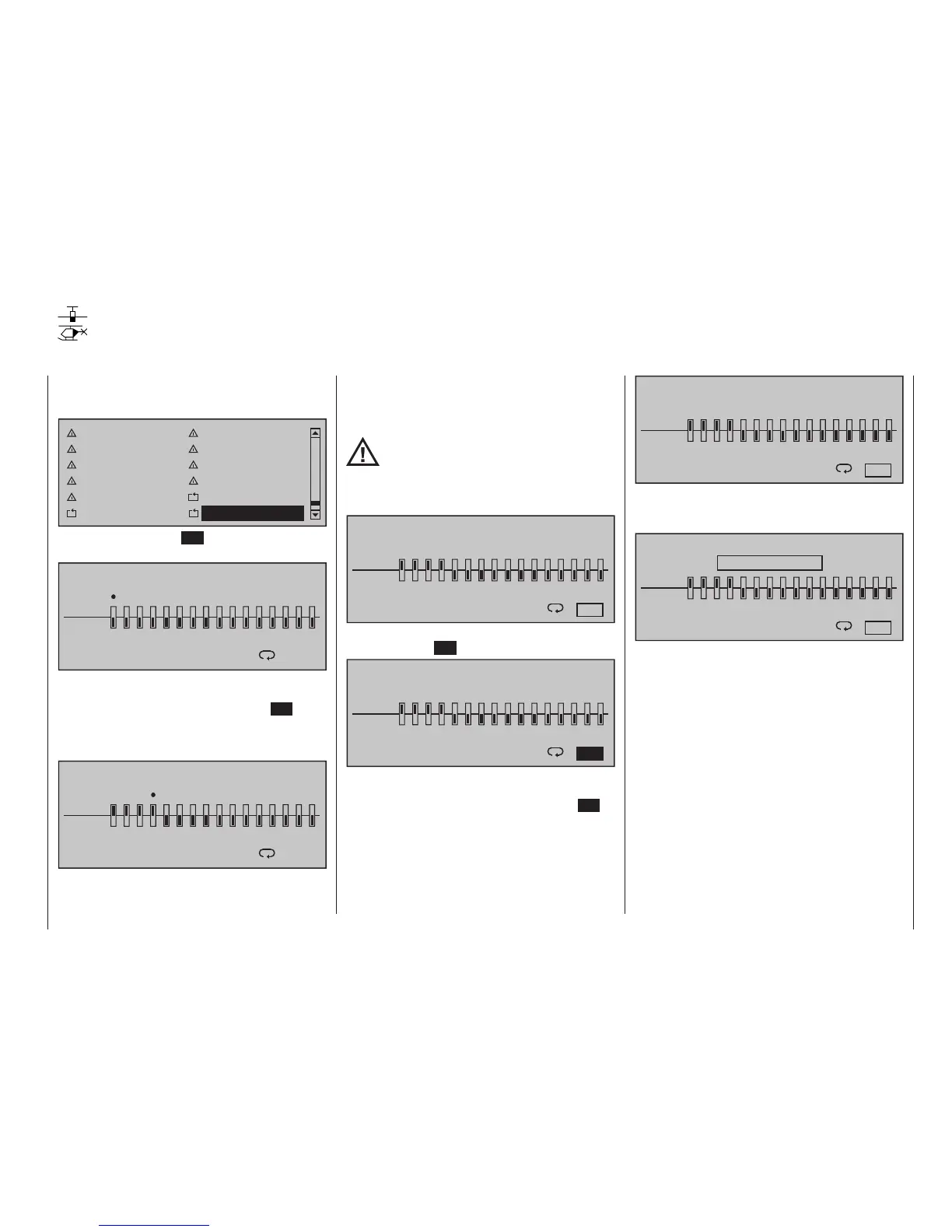

Program description - Servo test
Servo test
Function test of Servo 1 … 8
Use the selection keys on the left or right touch pad to
scroll to the menu option »Servo test« menu option
in the multi-function menu:
Teacher / pupil Tx. output swap
Profi trim
Trim memory
Telemetry Channel sequence
Multichannel Ring limiter
Mp3 player
Basic settings
Servo display Servo test
Tap briefly on the centre SET key of the right touch
pad to open this menu option:
SERVOTEST
activ
off
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
: 0.5s
Any of the inputs 1 … 16 can be activated for the servo
test by selecting with the selection keys of the left or
right touch pad and then briefly tapping the SET key of
the right touch pad. As soon as you have set only one
of the inputs 1 … 16 to "active", the following notice
appears at the bottom of the display screen:
SERVOTEST
activ
off
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
: 0.5s
CLR = act./deact.
A simultaneous tap on the  or  selection keys
of the right touch pad (CLEAR) would now start and
stop, for example, a servo test of input "1" with a
cycle time of 0.5 s.
However, start a servo test only in a model
memory without mixer specially constructed
for this purpose!
To change cycle time, select the loop symbol at the
bottom right of the display with the selection keys of
the left or right touch pad.
SERVOTEST
activ
off
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
: 0.5s
CLR = act./deact.
Once this value field has been activated with a brief
tap on the centre SET key of the right touch pad …
SERVOTEST
activ
off
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
CLR = act./deact.
: 0.5s
… the motion cycle can be changed for the value field
shown in inverse video within a range of 0.5 s and
3.0 s in 0.5 s increments. Briefly tap the centre SET
key of the right touch pad to finish time selection.
SERVOTEST
activ
off
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
CLR = act./deact.
: 2.5s
As soon as the servo test has been started by a si-
multaneously tap on the  or  selection keys of
the right touch pad (CLEAR) a window will open:
SERVOTEST
activ
off
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
CLR = act./deact.
: 2.5s
Servo test act.
The “servo test” function automatically operates the
servos as though the corresponding transmitter con-
trols were being simultaneously and continuously
moved back and forth between -100 % and +100 %
during the preset time. All active mixing and coupling
functions in the respective model memory, therefore,
are effective and the servos move within the specified
servo paths and servo delimitations.
Another tap simultaneously on the  or  selec-
tion keys of the right touch pad (CLEAR) will termi-
nate the test.
