34

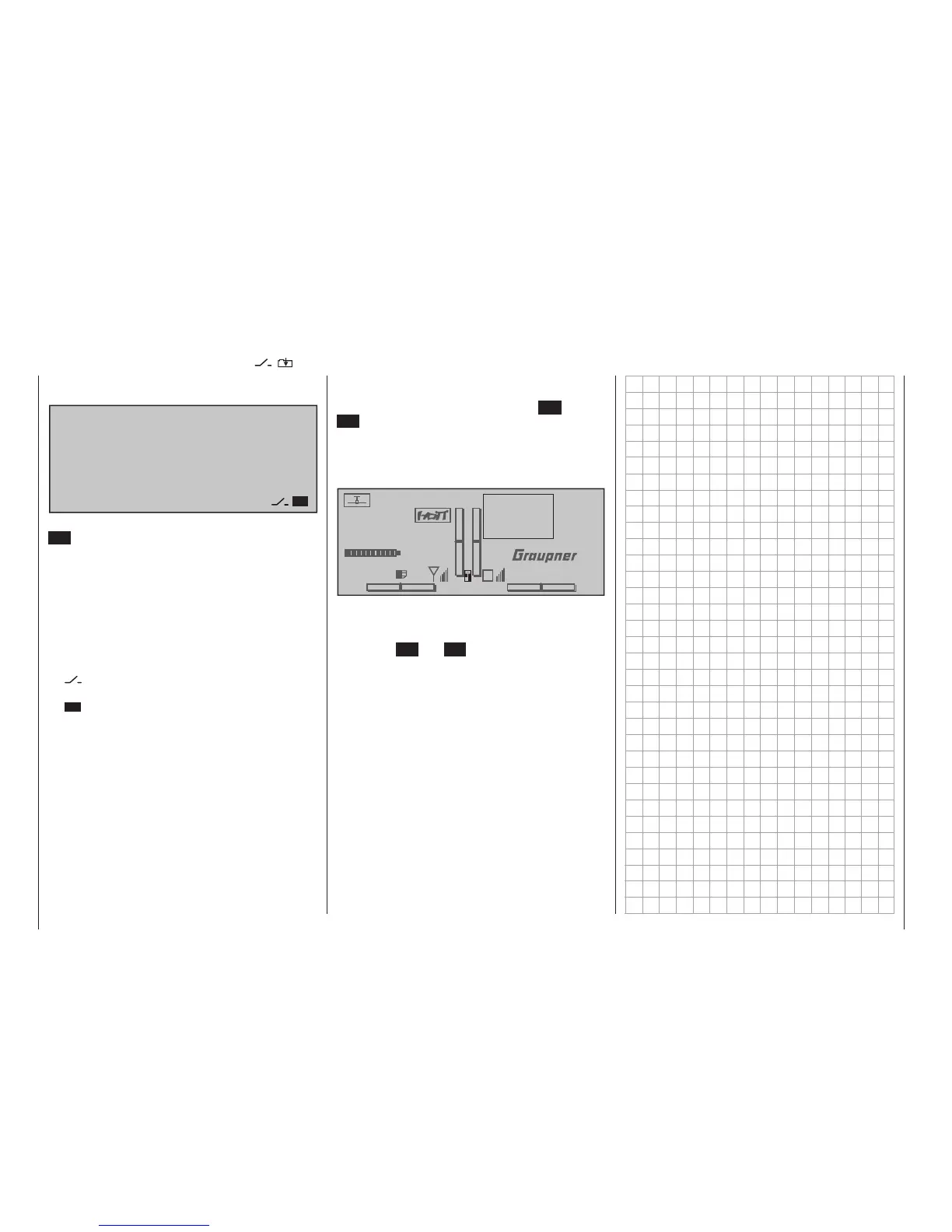

Transmitter description - Function elds and entry lockout
A lockout for the touch keys, and thus protection
against inadvertent use of all setting options, can be
established by touching and holding the ESC and
SET keys simultaneously for about two seconds while
the mc-32 HoTT transmitter is in its basic display.
This lockout condition is indicated by a key symbol,
located at the intersection point of the trim bars,
which is displayed in reverse video.
#01
0:00h
Stoppuhr
Flugzeit
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
Unlock by
ESC
and SET
RX VOLT:4.9V
The lockout is effective immediately but controls re-
mains operationally ready.
This lockout can be removed by again touching and
holding the ESC and SET keys for about two sec-
onds.
Entry lockout
Depending on the given menu, certain function fields
will appear on the bottom display line.
CLR SEL SET STO SYM ASY
A marked function is activated with a tap on the
SET key.
Function elds
• CLR (clear) erase
• SEL (select): selection
• SET (set) "set" or adjust a value
• STO (store): store (e. g. control position)
• SYM set values symmetrically
• ASY set values asymmetrically
• POS nur im Menü »Trimmspeicher«
•
switch field symbol
(assignment of all types of switches)
•
within a menu, change to the sec-
ond page, (menu continuation)
Function fields in the display
CLR, SEL, SET, STO, SYM, ASY, POS, ,
