Program description - Teacher/pupil
Wireless HoTT system
Wireless operation of the mc-32 HoTT trainer
mode system is also possible. To do so, the teacher
transmitter must be "connected" to a pupil transmitter
as described below. Prior to this, however, the train-
ing model's receiver must be bound to the PUPIL
transmitter. This configuration is possible between
transmitters which have the "BIND:" option in the
»Teacher/pupil« menu.
Preparing for training mode
The training model must be programmed completely,
i. e. with all of its functions including trims and any
mixer functions, in one model memory of the HoTT
teacher transmitter.
The model to be used for training
must therefore be under the com-
plete control of the teacher transmit-
ter.
mc-32 Firmware up to V 1.045
The nal step in preparation, however, is to bind
the training model to the pupil transmitter. For
a detailed description of the binding process,
please consult pages 80 and 90.
mc-32 Firmware V 1.046 or higher
The training model remains bound to the
teacher transmitter.
Important note:
Completely independent being bound to the
pupil transmitter of the relevant provisions of
the teacher transmitter, the training model
MUST always be bound to a student type transmitter
mx-10 HoTT with firmware version V 1a20, . In addi-
tion, it is imperative for proper training operation that
the model memory of the Teacher transmitter used to
train are deleted in the line “module” of the menu
“Basic adjustment model”, page 79 and 89, the right
of “HOTT” any particle receiver bonds. Is “n / a” regis-
tered so in the two values fields over BD1 and 2
respectively.
Pupil transmitter
If you are using an "
mc" or "mx" series transmitter,
it is best to activate a free model memory with the re-
quired model type ("Fixed-wing" or "Heli"). Assign the
model name "Pupil" and set up the stick mode (mode
1 … 4) and "Throttle (or collective pitch) min. forward/
back" to suit the pupil's preferences. All other op-
tions are left at their default values. All other settings,
including all mixer and coupling functions, are config-
ured exclusively on the teacher transmitter, which in
turn transmits them to the model.
When assigning control functions, the usual conven-
tions must be observed:
Channel Function
1 Motor throttle/collective pitch
2 Aileron/roll
3 Elevator/pitch-axis
4 Rudder/tail rotor
If other control functions are to be transferred to the
pupil transmitter in addition to the functions of the two
dual axis sticks (1 … 4), access the »Control adjust«
menu in the pupil transmitter and assign those inputs
which correspond to enabled function or transmit-
ter control inputs 5 … 12 as shown in the »Teacher/
pupil« menu of the teacher transmitter. Afterwards,
assign the operating elements appropriately.
Important:
If you should forget to assign a
transmitter control on the pupil side,
then the affected servo or servos
will remain in the centre position when the
transfer is made to the pupil transmitter.

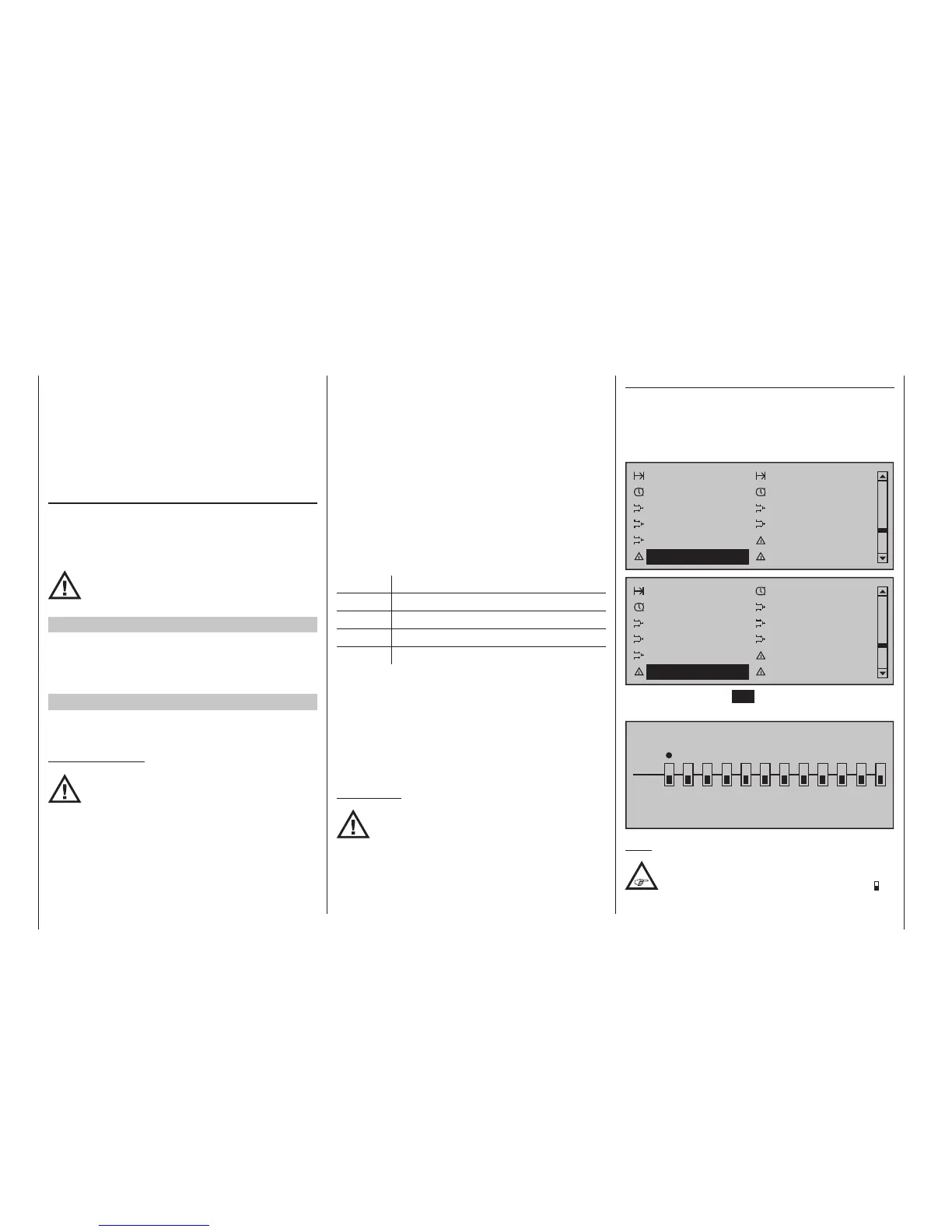

Preparing the teacher and pupil transmitters
Once you have bound the training model to the pupil
transmitter, now switch on the teacher transmitter. On
both transmitters, use the selection keys on the left
or right touch pad, to page to the »Teacher/pupil«
menu option on the multi-function menu:
Phase trim
Non-delayed chan
Timers (general)
Fl. phase timers
Wing mixers
Free mixers
MIX active/phase MIX-only channel
Dual mixer
Fail-safe adjust
Teacher / pupil Tx. output swap
Non-delayed chan Timers (general)
Fl. phase timers
Helicopter mixer
Free mixers
MIX active/phase
MIX-only channel Dual mixer
Swashplate mixer Fail-safe adjust
Teacher / pupil Tx. output swap
Briefly tap the centre SET key of the right touch pad
to open this menu option:
TRAINER /student
P
T
2 3
4
5
BIND:
SW: –––
1
n/a
6 7 8 9 10
11 12
Note:
The screen image shown above shows the
menu in its initial state: No transmitter
controls have been released to the pupil (
)
and no switch has been assigned ("SW: ---" bottom
