Program description - Loading a new memory location
Anyone who has worked through to this part of the
manual has certainly already tried out a bit of pro-
gramming. Nevertheless a detailed description of
every menu should not be left out.
This section begins with the loading of a "free" mem-
ory location, a procedure which would be performed if
a new model was being "programmed".
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
RX VOLT:0.0v
00
0
0
00:00h
M
V

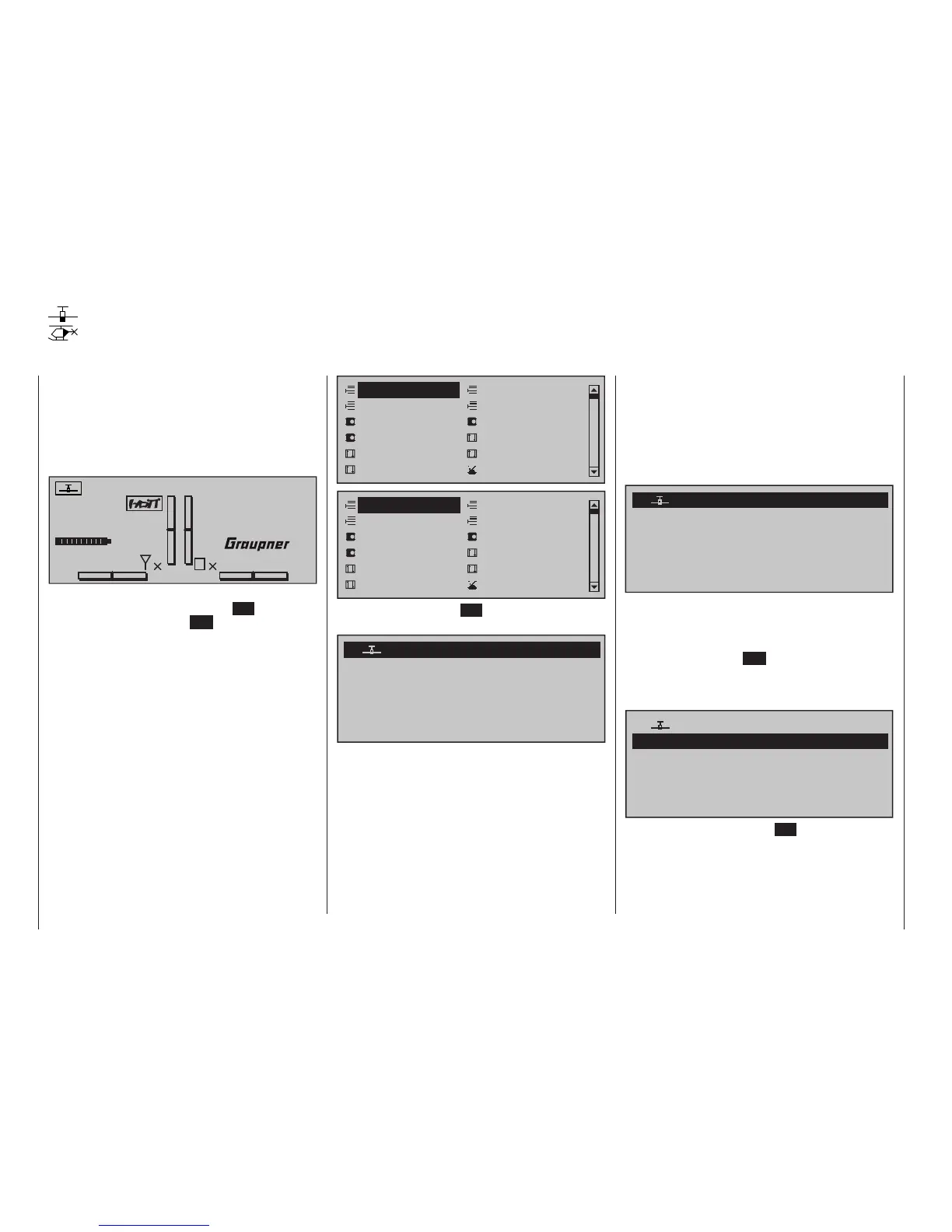

From the basic display, a jump to the "Multi-function
list" is made with a tap on the centre SET key of the
right touch pad. (The centre ESC key of the left touch
pad will cause a jump back to the basic display.) By
default, when the multi-function list is called for the
first time after switching on the transmitter, the »Mod-
el select« menu option will be active and displayed in
inverse video. Otherwise use the or selec-
tion keys of the left or right touch pad to select the
»Model select« menu option, whereby the upper of
the two following figures shows a selection list for a
fixed-wing model and the lower shows the selection
list for a helicopter model.
Detail program description
Loading a new memory location
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Model select
Copy / Erase
Suppress codes
Suppress models
Base setup model
Model type
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Model select
Copy / Erase
Suppress codes
Suppress models
Base setup model
Helicopter type
Tap briefly on the centre SET key of the right touch
pad to open this menu option:
03
04
05
free
02
01
06
E16
free
free
free
free
00:12h
In the transmitter's delivered state, the first model
memory is initialized to the "xed-wing model" type
and the receiver in the delivery is "bound" to this
model. The time display located near the line's middle
indicates the overall operating time of the respective
model memory.
In the above example E16 in dark font on a light
background.
On this view it can be seen that the receiver is “spe-
cific memory” associated with the default option set
with the model memory 1 so that it only responds to
the control signals that a model memory of his sta-
tion. For details, see page 83 or 93.
In a “transmitter-specific” bound receiver the receiver
identifier is displayed in bright characters on a dark
background ...
03
04
05
free
02
01
06
E16
free
free
free
free
00:12h
The remaining memory locations, marked with
"free", are still unoccupied and therefore
also "non-bound". If you wish to program a fixed-wing
model then, after leaving the »Model select« menu
with a tap on the centre ESC key of the left touch pad,
programming of the model can begin right away … or
now use the or keys of the left or right touch pad
to select one of the free memory locations …
03
04
05
01
06
R16
free
free
free
free
00:12h
free
02
… and then tap on the centre SET key of the right
touch pad to confirm the choice.
