Program description - Ring limiter
0%

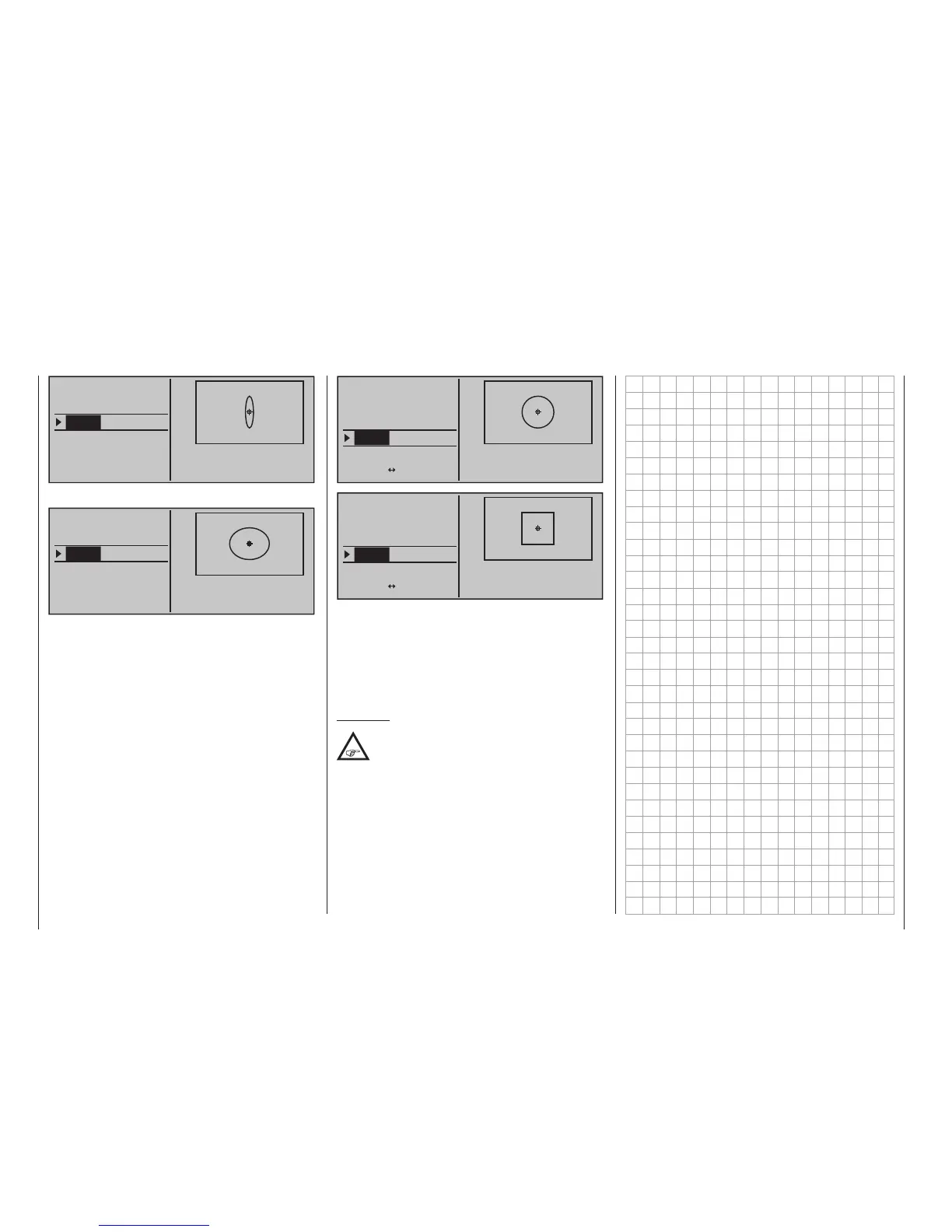

Ring Limit 1
max-X
0%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
25%
CH 3
… and 125 %:
0%
Ring Limit 1
max-X
0%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
125%
CH 3
In practice, the setting is made by changing the given
value until the respective servos in the model just
reach the point where they no longer move.
A tap on the  or  keys of the right touch pad at
the same time (CLEAR) will reset the changed value in
the active value field back to its "100 %" default value.
In the next line down – labeled at the bottom left of the
display as "<=>-X" or "<=>-Y", depending on
the position of the marker frame – the setting values,
in a range from 0 % and a maximum of 125 %, affect
the form of limitation between "circular" and "rectan-
gular", whereby a setting value here may never be
greater than the value of the field above it.
Ring Limit 1
0%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
100%
 –X
0%
CH 3
Ring Limit 1
0%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
100%
 –X
100%
CH 3
A tap on the  or  keys of the right touch pad at
the same time (CLEAR) will reset the changed value
in the active value field back to its "0 %" default value.
When finished with these settings, switch back to the
first display page for this option then repeat this pro-
cedure, as applicable, for the lines of ring limiter 2 or
3.
Final note:
This option can, of course, also be used as
necessary and applicable for xed-wing
models.
