319
Programming examples - Eight-ap wing

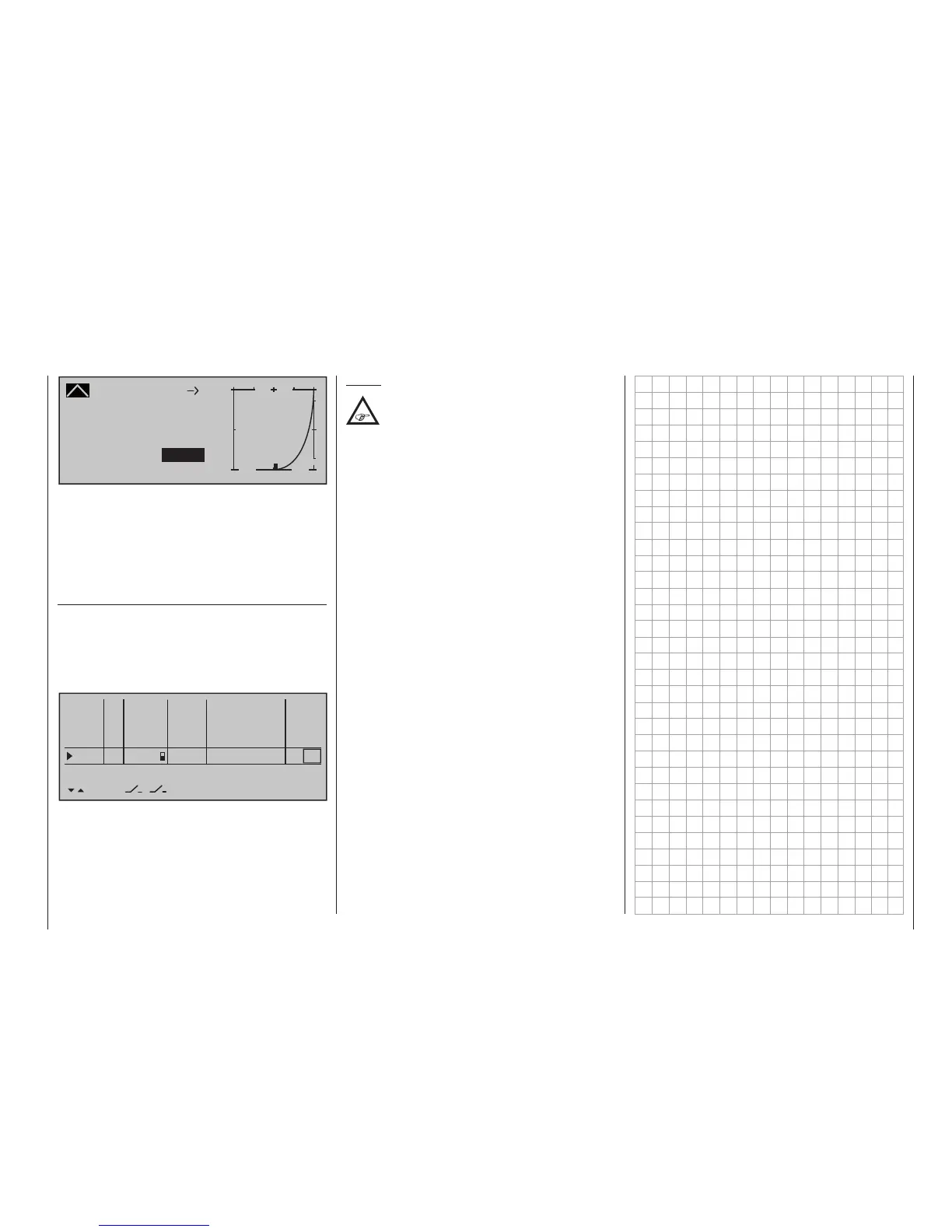

Curve MIX10
Curve
off Point
Output
Input –100%
–100%
L
+
–
100
O U T P U T
9
10
–100%
1
The function you programmed functions as desired
according to these suggestions – which you can verify
at any time after switching to the »Servo display« by
simultaneously pressing the keys of the left four-
way button – then to, complete the programming, an
arbitrary switch, such as “SW 15” is assigned in the
menu …
»Control adjust« (page 112 or 116)
… to the control channel used instead of the selected
side-mounted proportional control – in these examples
“Lv1” to channel “9” – and the desired symmetric or
asymmetric time span is set in the “– Time +” column
for the amount of time in which the function should
ultimately take place:
0%
+100%I6
I7
I8
I9
typ
+100%
0.0 0.0
– travel + – time +
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
9.9 9.9
GL
GL
GL
fr ---
fr
fr
---
---
2
offset
GL
Normal
---
Notice:
In the course of the switch assignment,
always bear in mind that you can also trigger
multiple functions with one switch! For
example, with the same switch a landing gear
connected to Output 6 can be started and, as shown
here as an example, the time-controlled landing gear
aps connected to Output 9 and/or the headlight, etc.
