100 IconMaster Installation and Configuration Manual
Chapter 4: Router Connections
5. Set the IP Address for the MKE-3901 Module
1. Press the left (Esc) button until the message MKE3901 appears on the VFD
display.
2. Press the right (Enter) button.
3. Use the toggle switch (Nav) to scroll through the parameter list until Status
is highlighted.
4. Press the right (Enter) button.
5. Use the toggle switch (Nav) to scroll through the parameter list until Other
is highlighted.
6. Press the right (Enter) button.
7. Use the toggle switch (Nav) to scroll through the parameter list until
IP_Address is highlighted.

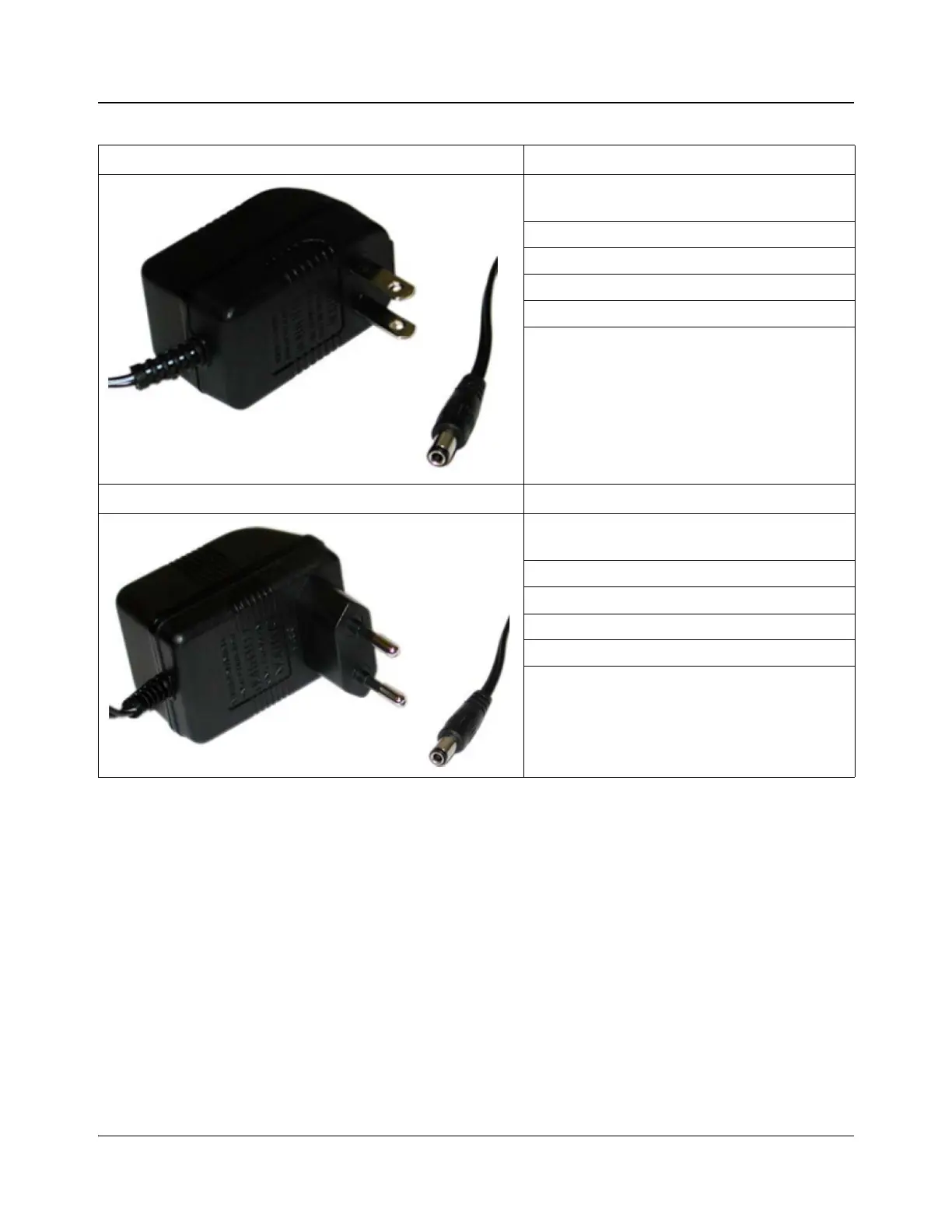

Table 4-1. Power Requirements for SPT-LSERIAL
PD9200PL6A Adaptor Description
Locations with 110-127 volt electrical systems
should use the PD9200PL6A adaptor*
Input voltage: 120 VAC, 60 Hz
Input current: 60 mA max.
Output voltage: 9.0 VDC
Output current: 200 mA
Output connector: 5.5 mm x 2.5 mm female
barrel power plug with positive center
PD9300EPL6A Adaptor Description
Locations with 220-240 volt electrical systems
should use the PD9300EPL6A adaptor
*
Input voltage: 230 VAC, 5 0Hz
Input current: 40 mA max
Output voltage: 9.0 VDC
Output current: 30 0mA
Output connector: 5.5 mm x 2.5 mm female
barrel power plug with positive center
* If you did not receive the correct adaptor for your electrical system, please contact your Customer Service representative.
