160 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
Audio Configuration Settings
Using the Audio Configuration dialog box in ICU, you can designate the audio
output for each audio input.

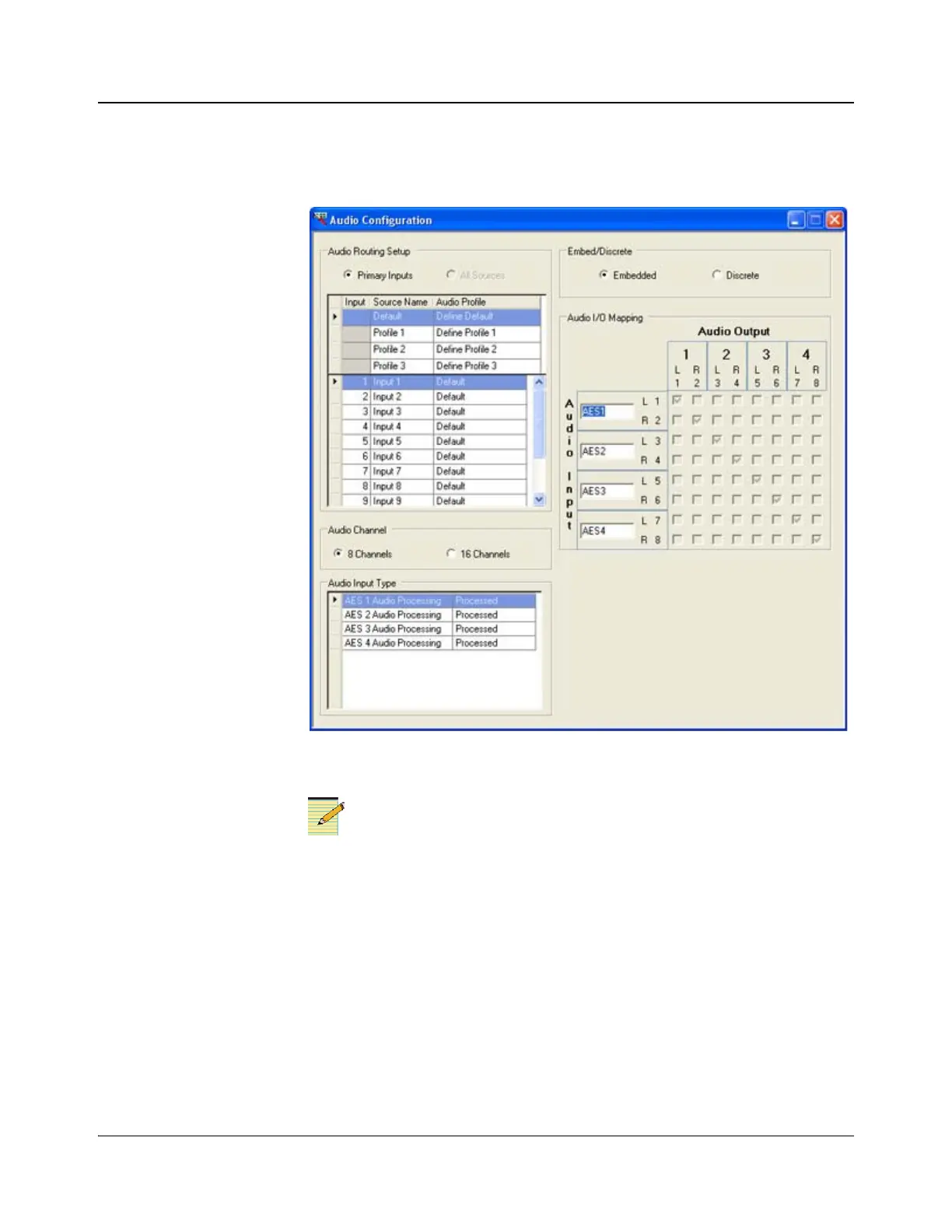

Figure 8-7. Audio Configuration Dialog Box
The 8 Channel/16 Channel audio selections are not available if the
IconMaster has been configured for HD operation.
Audio Profiles
In order to make configuration of inputs with similar audio settings easier,
IconMaster provides one default and three user-definable audio profiles to be
created. An audio profile is a set of audio input to output mappings, which can
be applied to any input source.
In the Audio Routing Setup, all inputs are assigned the Default profile.
To edit a profile:
1. Select one of the user-defined profiles at the top of this screen.
