40 IconMaster Installation and Configuration Manual
Chapter 2: Installation
MKA-3901 Back Module Connections
Figure 2-26 shows the back module of the MKA-3901 module. Make all
appropriate I/O connections as appropriate for your system setup.
• The pin numbers for the AES Input connector, with corresponding pinout
information, are shown in Table 2-3 on page 41.
• The pin numbers for the AES Output connector, with corresponding pinout
information, are shown in Table 2-4 on page 42.

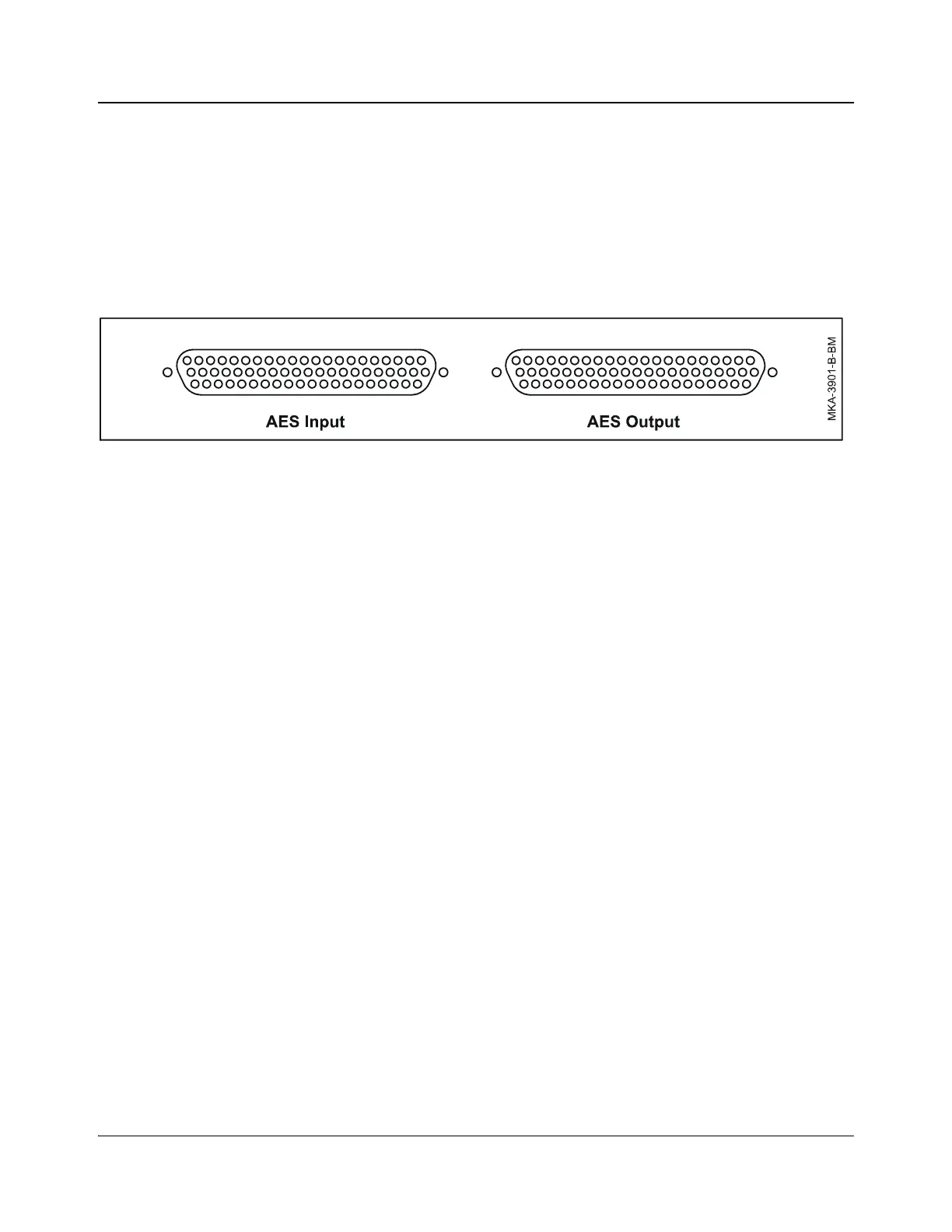

Figure 2-26. MKA-3901 Back Module
