IconMaster Installation and Configuration Manual 43
Chapter 2: Installation
Installing Breakout Modules
There are three breakout modules available in the IconMaster system. Table 2-5
shows the functionality of each of the breakout modules.
ICONM-BO-V Video Breakout Module

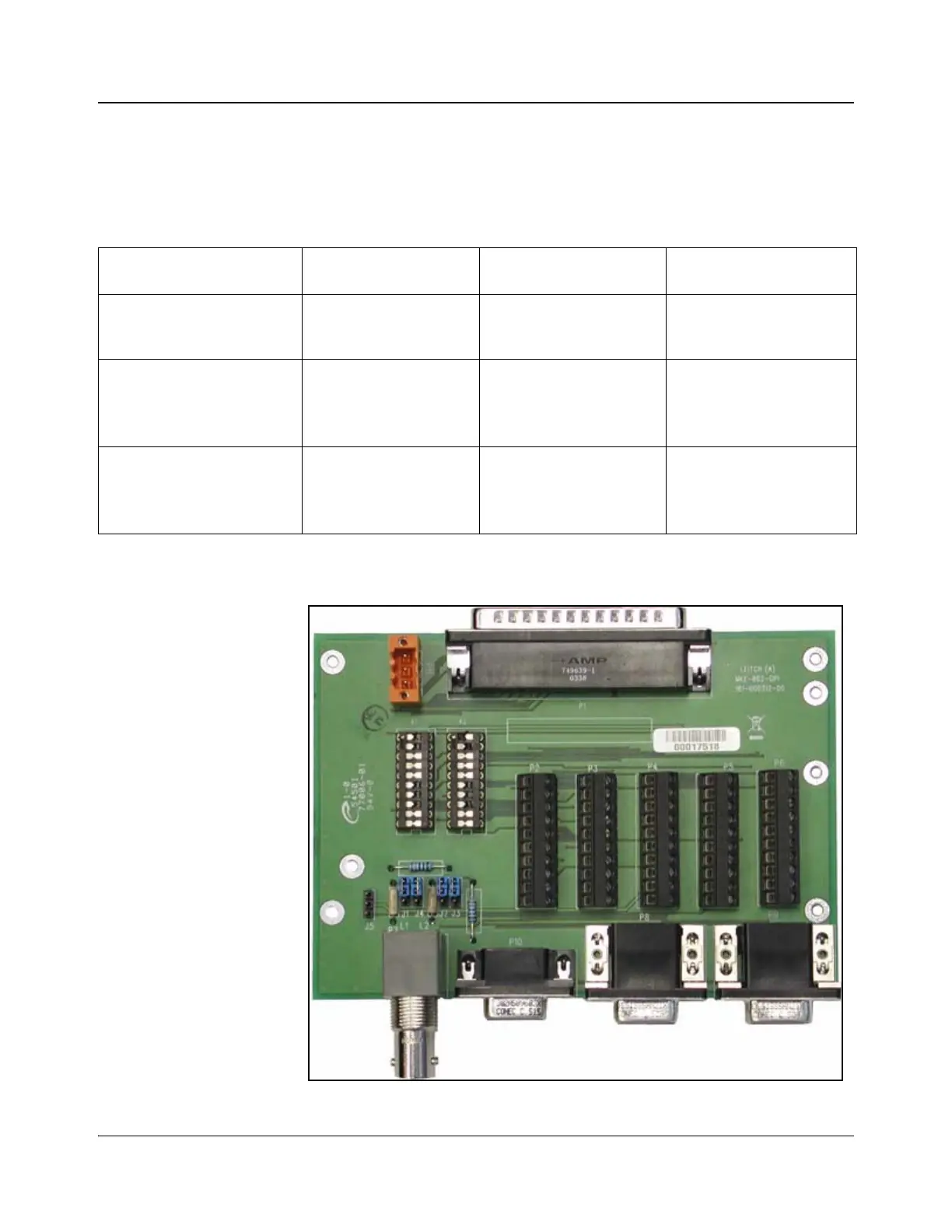

Figure 2-27. ICONM-BO-V Breakout Module
Table 2-5. Breakout Module Packages
Breakout Back Module
Name
Video Module Audio Module Connecting Cables
ICONM-BO-V video breakout
module (see page 43)
RS-232 and RS-422;
BNCs for audio over and
video relay bypass
Not applicable
• MKE breakout cable
(165-000242-00)
ICONM-BO-VAB balanced
audio breakout module
(see page 54)
RS-232 and RS-422;
BNCs for audio over and
video relay bypass
Screw terminals for discrete
audio in and out
• MKA breakout cable
(165-000243-00) x2
• MKE breakout cable
(165-000242-00)
ICONM-BO-VAC coaxial
audio breakout module (see
page 56)
RS-232 and RS-422;
BNCs for audio over and
video relay bypass
BNC connections for
discrete audio in and out
• MKA breakout cable
(165-000243-00) x2
• MKE breakout cable
(165-000242-00)
P2 P3 P4 P5 P6
1
2
3
4
5
6
7
8
9
10
Term.
