IconMaster Installation and Configuration Manual 205
Chapter 8: Configuring IconMaster
CENTRIO Configuration Settings
To use CENTRIO with IconMaster, a valid license is required. See “License
Management Settings” on page 202 for more information.

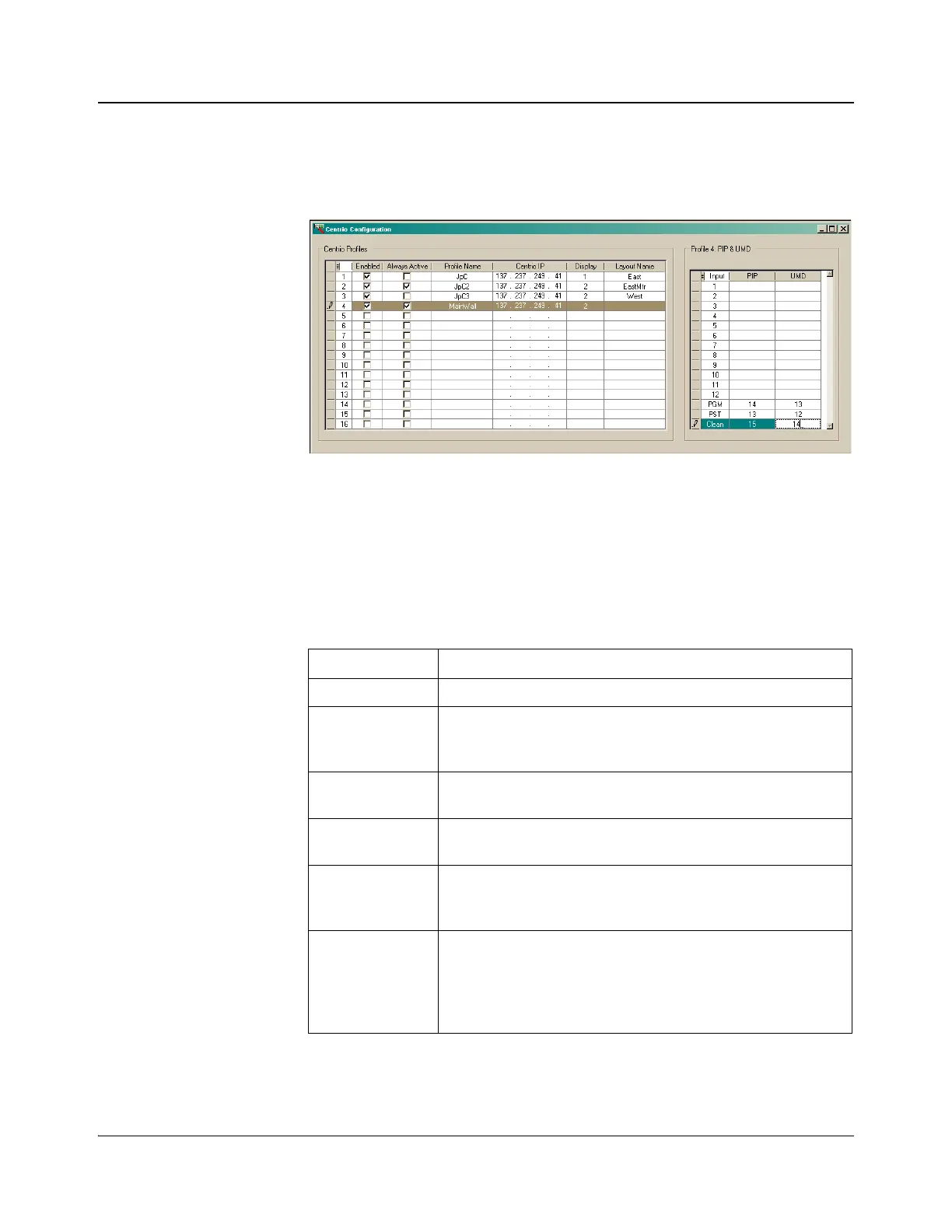

Figure 8-38. CENTRIO Configuration Settings Dialog Box
For each CENTRIO display the IconMaster will be controlling, create a Centrio
Profile which defines the Centrio system, display output, and (optionally) the
layout to display. Within the layout, you can define the PIP and UMD numbers
that correspond to the IconMaster inputs (sources) and also the IconMaster
outputs.
Table 8-8. Centrio Profiles Table
Item Description
Enabled Activates playout from IconMaster to this CENTRIO device
Always Active If selected, this profile will become the activeprofile, if no other
profile is currently controlling the selectedCENTRIO display
endpoint (CENTRIO IP addresss and display number)
Profile Name Title of the profile that will appear in CCS Navigator and
CENTRIO Layout Designer when configuring CENTRIO
Centrio IP The IP address of the Ethernet connector on the CENTRIO
device
Display The CENTRIO display number (ID) to control (value between 1
and 4) corresponding to the physical CENTRIO Display output
DVI 1/2 or HD_SDI 1–4)
Layout Name The name of the layout to be loaded
(if the layout name is blank, the CENTRIO will not be
commanded to change layouts, thus leaving the existing layout
on-screen; PIPs and UMDs will still be refreshed)
