202 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
If you are communicating correctly with the MKE-3901 module, and wish
to change the IP address using the ICU software, select the New IP
Address checkbox, and then enter a new IP address in the field to the right.
The Subnet Mask and Gateway settings can also be set in this way.
Note that after changing the MKE-3901 module’s IP address, you will need
to power cycle the IconMaster's MKE-3901 module, and put the new
address into the IP Address field above.
You can connect to two external input/output devices through the boxes labeled
External IO 1 and External IO 2.
1. Select the Enable External IO Module checkbox, and then select the
external device type from the drop-down list box.
2. In the corresponding list boxes, enter an IP address and a port number for
the external device.
3. (Optional) Enable the External IO Admin Password checkbox, and then
enter the appropriate system administrator pasword.
If the External IO 1 or External IO2 is enabled, additional GPO and GPI
functions will become available in the GPO and GPI pages on page 187 and
page 189.
See the JLCooper instruction manual for information on configuring the eBox
for use with IconMaster.
License Management Settings
The License Management dialog box contains information about license keys
installed on your IconMaster systems.

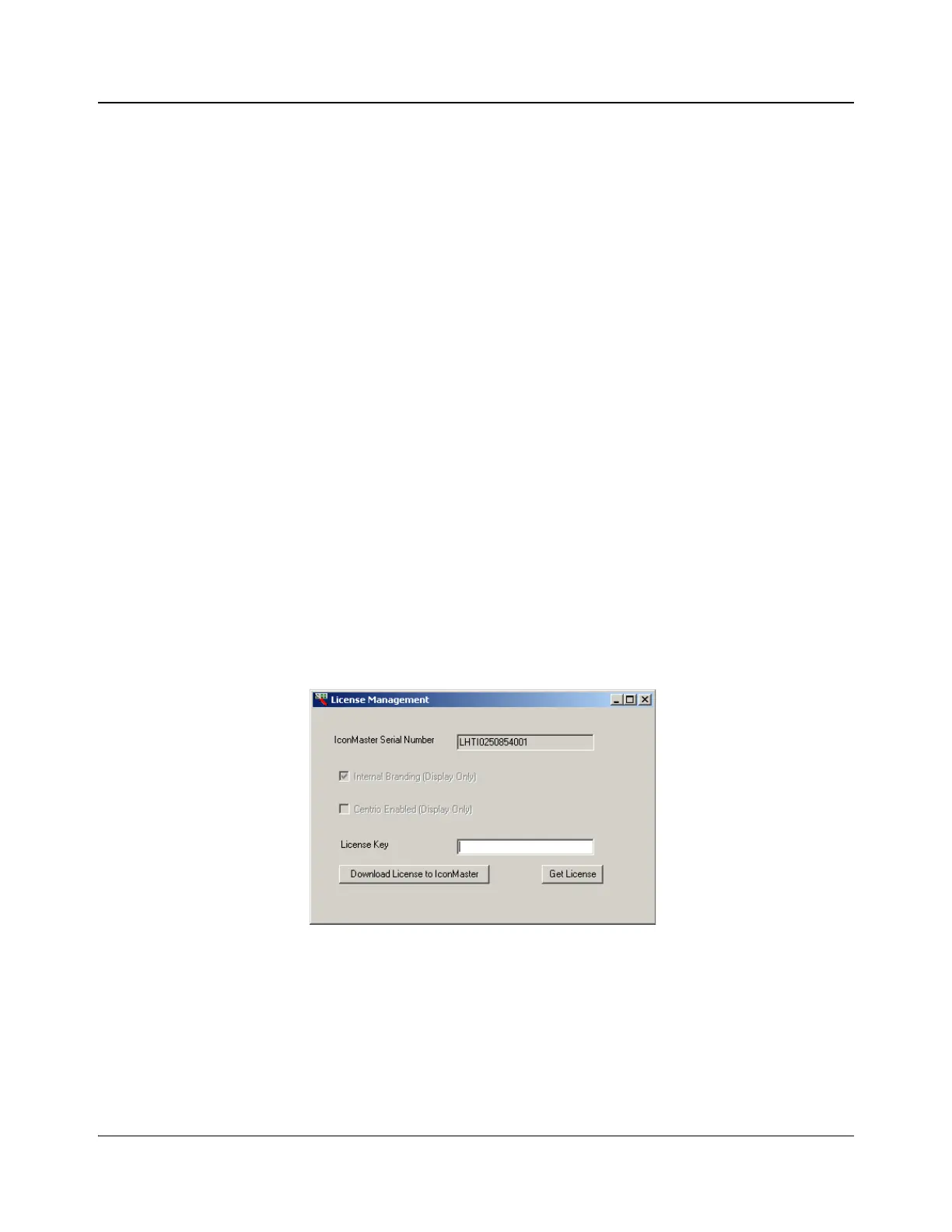

Figure 8-35. License Management Dialog Box
There are two licences for Iconmaster. The first licence enables Iconmaster to
integrate with the Centrio multi-viewer. the second licence option enables the
INTERNAL keyers functionality of the Iconmaster, if an MGI3902 or
MGI3903 board is installed.
To add a license key:
1. In the License Management dialog box, click Get License.
