206 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
When you click on a row in the Centrio Profiles table, the Profiles table at the
right of the dialog box updates with the contents of that profile. To complete a
Profile, enter a PIP number for each input that is to appear in the layout, and
enter the UMD address for that input.
Clock and Timer
For the clock and timer to be available, a button needs to be defined for each.
See “Button Configuration Settings” on page 210.

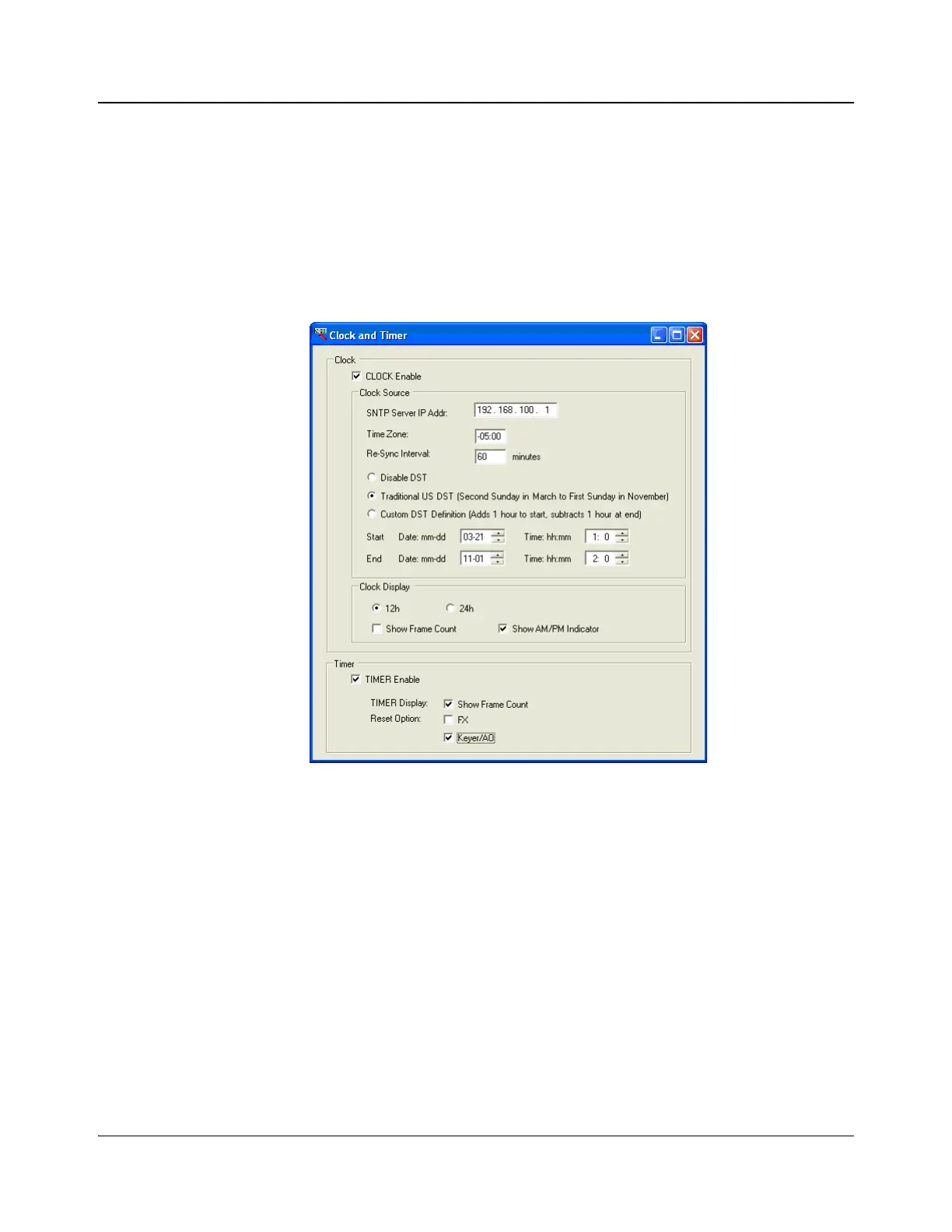

Figure 8-39. Clock and Timer Settings Dialog Box
