IconMaster Installation and Configuration Manual 187
Chapter 8: Configuring IconMaster
GPI Settings
To use external GPIs, you must first enable them on the ICU Network page (see
page 201), and configure the JLCooper eBOX (see their documentation for
details).
If configuring an IconMaster LITE, fewer GPI and GPO selections
are available. IconMaster LITE has 8 GPI and 6 GPO.

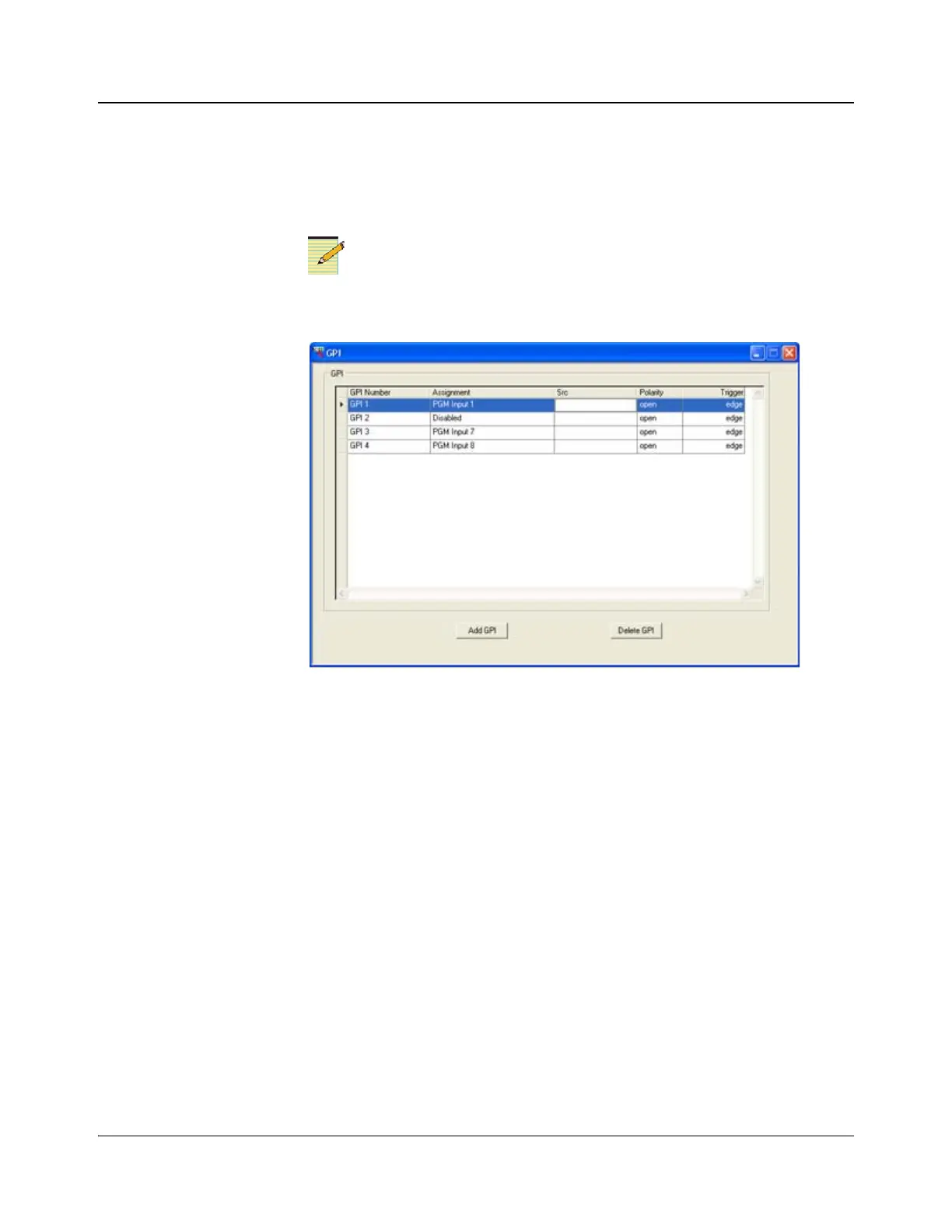

Figure 8-25. GPI Settings Dialog Box
Using the GPI dialog box, you can perform the following actions:
• Add or delete a General Purpose Interface input (GPI)
• Assign a trigger to a GPI source (GPI sources are assignable to Quick
Selects, Bus selections, and different transition types and rates)
• Coordinate GPI and machine control events
• Specify polarity of the GPI
• Set up the trigger function
• Choose what interface the GPI comes from
Adding a GPI
To add a GPI:
1. Click Add GPI at the bottom of the GPI dialog box.
A new row appears in the GPI table.
2. Click the GPI Number field to open a drop-down menu, and then choose a
GPO.
