Harris IconMaster - Assigning Router Inputs

234 IconMaster Installation and Configuration Manual
Chapter 9: Enabling a RouterMapper Database for Use with an IconMaster System
Assigning Router Inputs
1. Under the Input/Output category on the left side of the ICU window, click
Primary Input. The Primary Input window will appear.

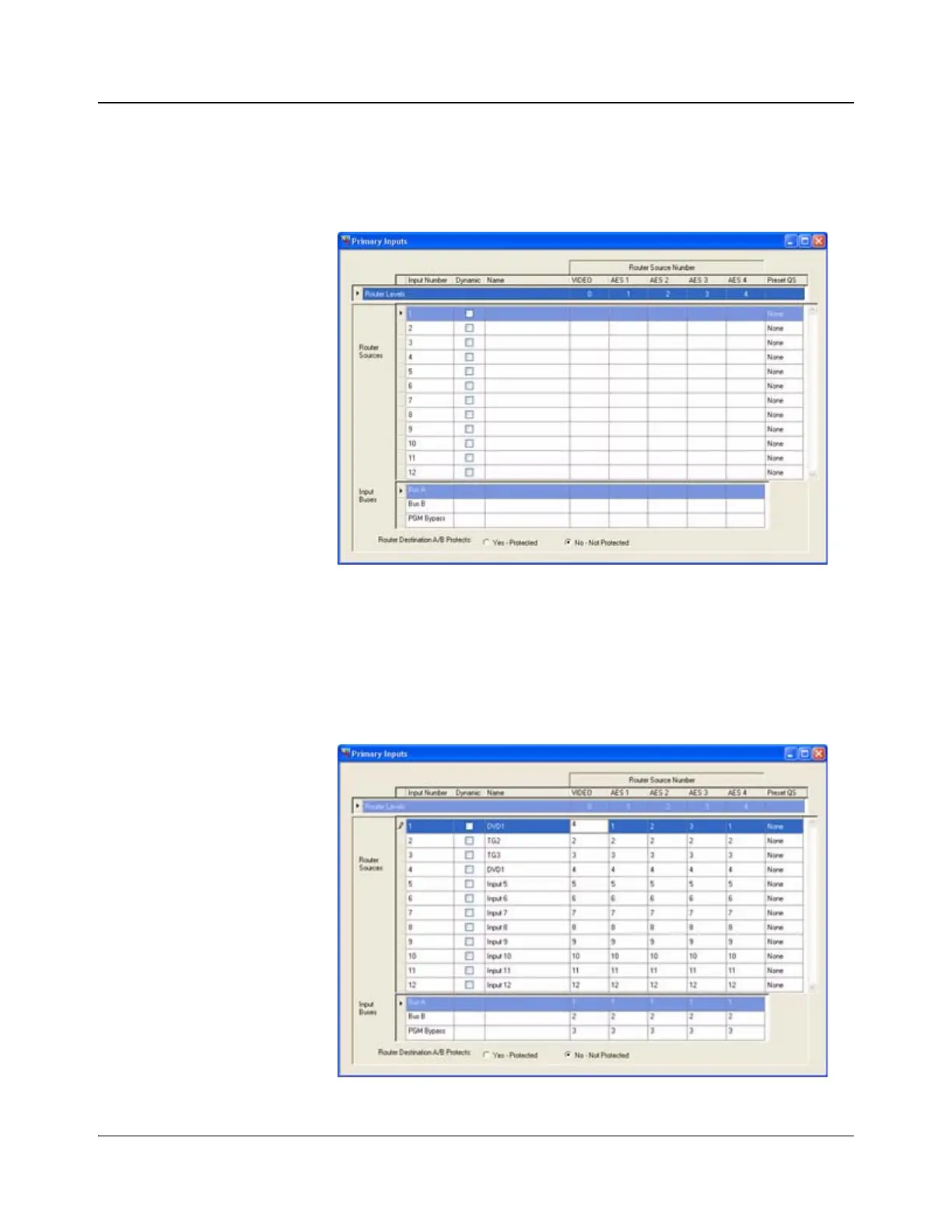

Figure 9-21. Primary Input Window
2. Under Router Source Number, the level numbers displayed should match
the levels set in your database. In the unlikely event that they do not, you
can change the level number in the drop-down list boxes to match the levels
set for your router. Set any unused level to Unused. Note that the Video
column must have a router level assigned.
Figure 9-22. Changing Router Levels
