184 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
Machine Control Settings
The Machine Control dialog box allows you to set the appropriate control
functions for automation.

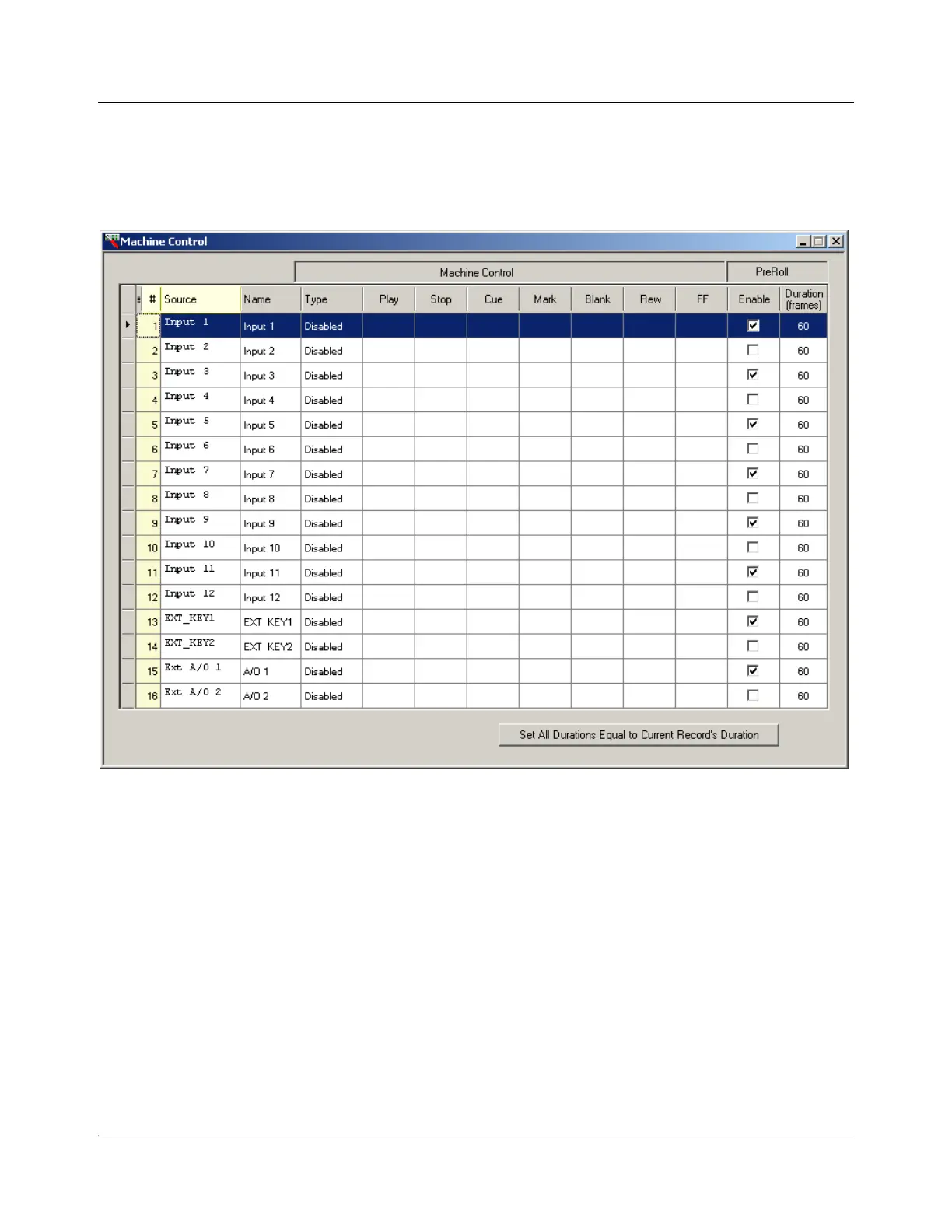

Figure 8-23. Machine Control Dialog Box
Using the Machine Control functions, you can perform the following actions:
• Coordinate GPI/GPO and machine control events
• Select the automation type
• Select the machine control settings
• Temporarily disable selected machine control settings
The Source column indicates the selected source. This column is read-only; you
cannot make changes here.
The Name column indicates the selected sources’ name. This column is
read-only; you cannot make changes here.
