IconMaster Installation and Configuration Manual 191
Chapter 8: Configuring IconMaster
System Config Group Settings
The System Config group on the left side of the IconMaster configuration
software screen includes the following dialog boxes: Genlock and Standard,
Router Control, System Config, Automation Config, and Network.

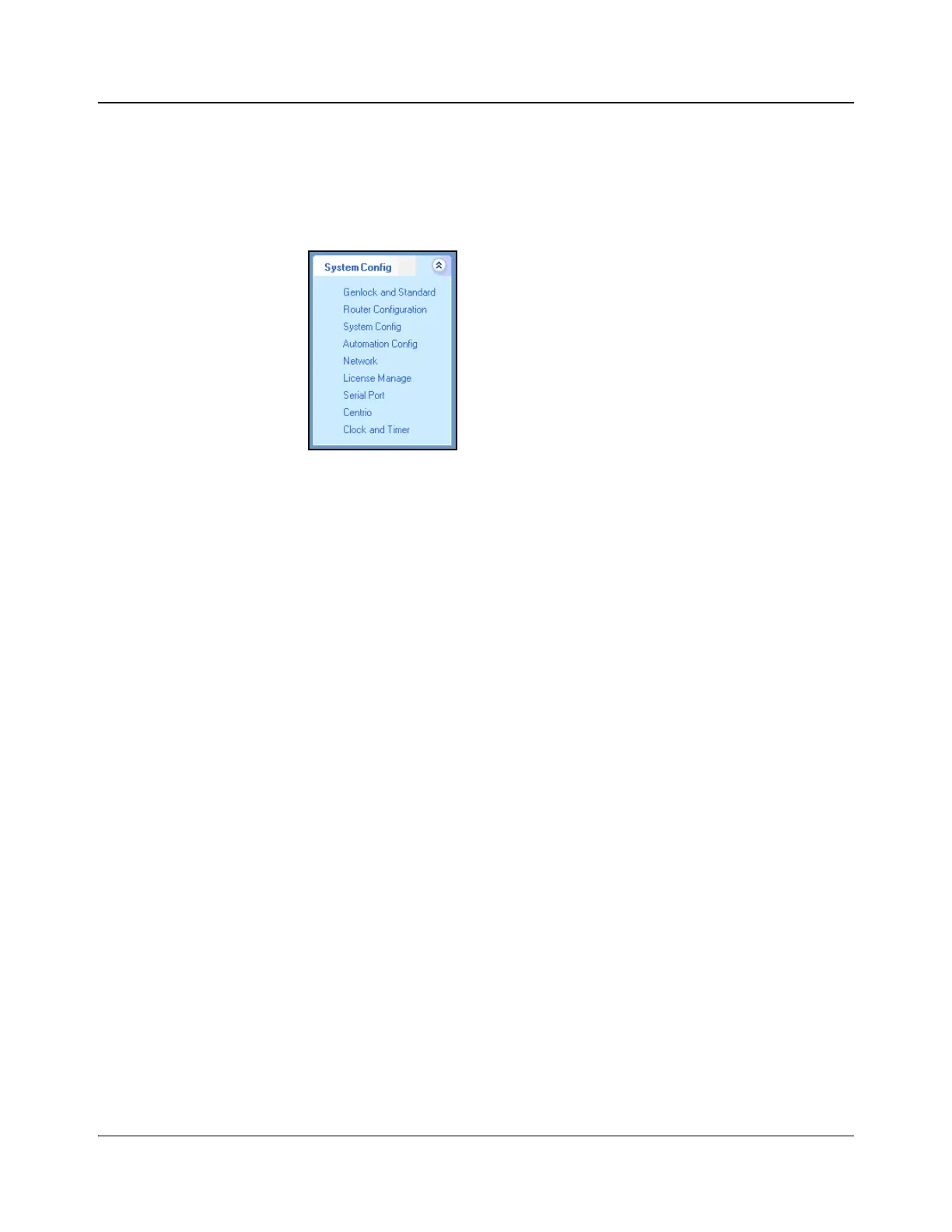

Figure 8-27. System Configuration Menu Group
This menu group controls the genlock/standard, router, system, automation,
network, license management, serial port, clock & timer, and CENTRIO
configuration functions, as shown in Figure 8-27.
Genlock and Standard Settings
The Genlock and Standard dialog is a very specific function dialog box. Using
this box, you can perform the following actions:
• Select an operating standard
• Select a genlock source type
• Set the timing for the IconMaster system
