210 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
If you have configured the IconMasters to interface with Harris CENTRIO
multi-viewers, you can assign up to three CENTRIO profiles to be
automatically recalled and controlled when the RCP connects to the IconMaster.
These profiles are setup and named for each IconMaster individually. See
page 205 to configure the CENTRIO profiles.
When the RCP connects to the given IconMaster, it will recall the CENTRIO
profile defined in the Centrio Profile 1 Name field. Optionally, the operator
may choose to recall profiles 2 and 3 at connect time, and may change to these
display profiles anytime during operations. If a Profile Name field is blank, no
CENTRIO profile operations will be initiated by connecting an RCP to the
IconMaster. If no CENRIO profiles are configured on the RCP, but “Always
Active” CENTRIO profiles are enabled on the IconMaster MKE-3901 module,
the MKE-3901 will continue to maintain an active connection to the “Always
Active” CENTRIOs, providing PiP,UMD, and layout updates as necessary.
Button Configuration Settings

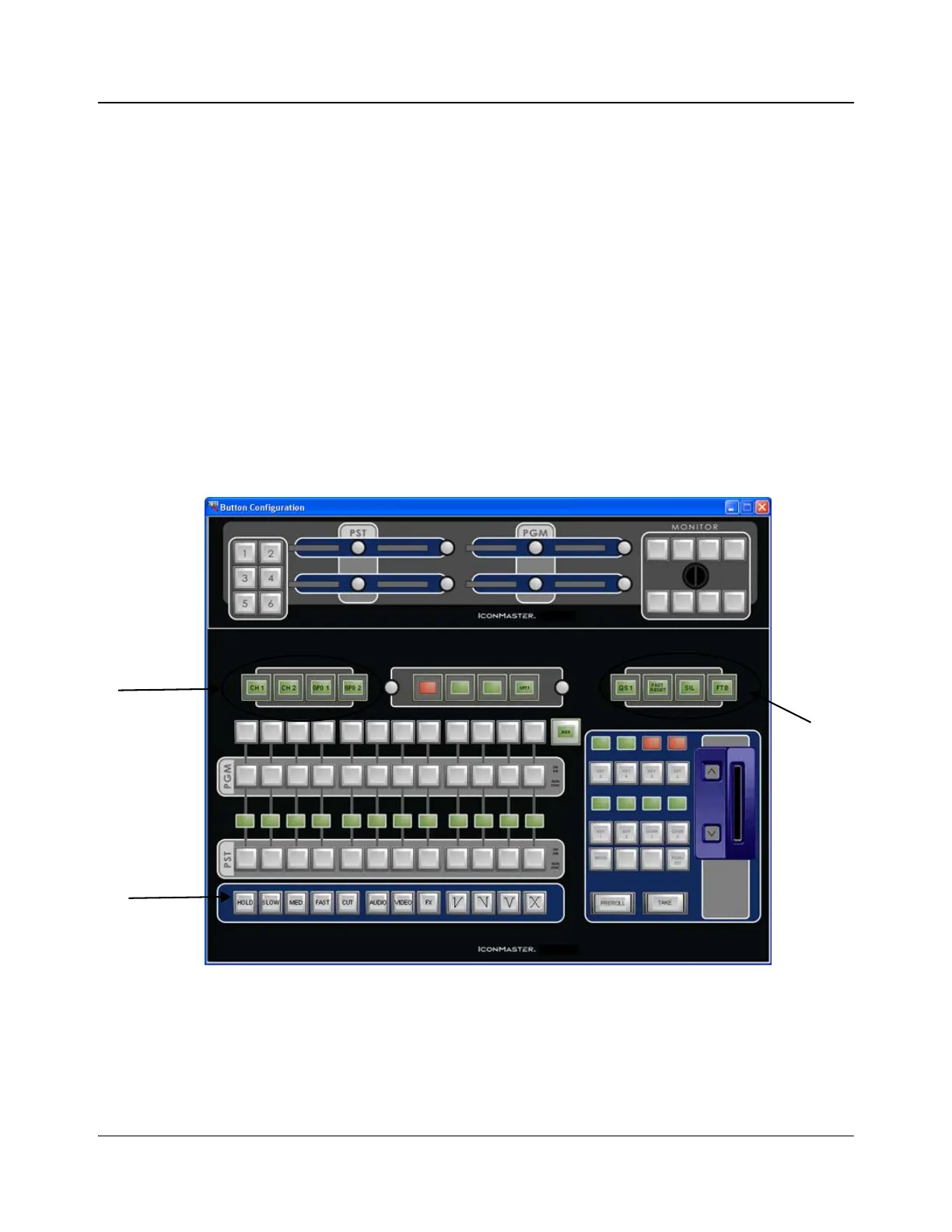

Figure 8-42. Button Configuration Dialog Box
Using the Button Configuration dialog box, you can assign specific functions
to the configurable clusters and to the transition cluster on the IconMaster main
control panel. The available functions for each group of buttons are shown in
Table 8-10.
Configurable
cluster
Configurable
cluster
Transition
cluster
