IconMaster Installation and Configuration Manual 169
Chapter 8: Configuring IconMaster
Functional Group Settings
The Functional group on the left side of the IconMaster configuration software
screen includes the following dialog boxes: Transition, Effects, Quick Select,
Audio Cluster, and Keyer.

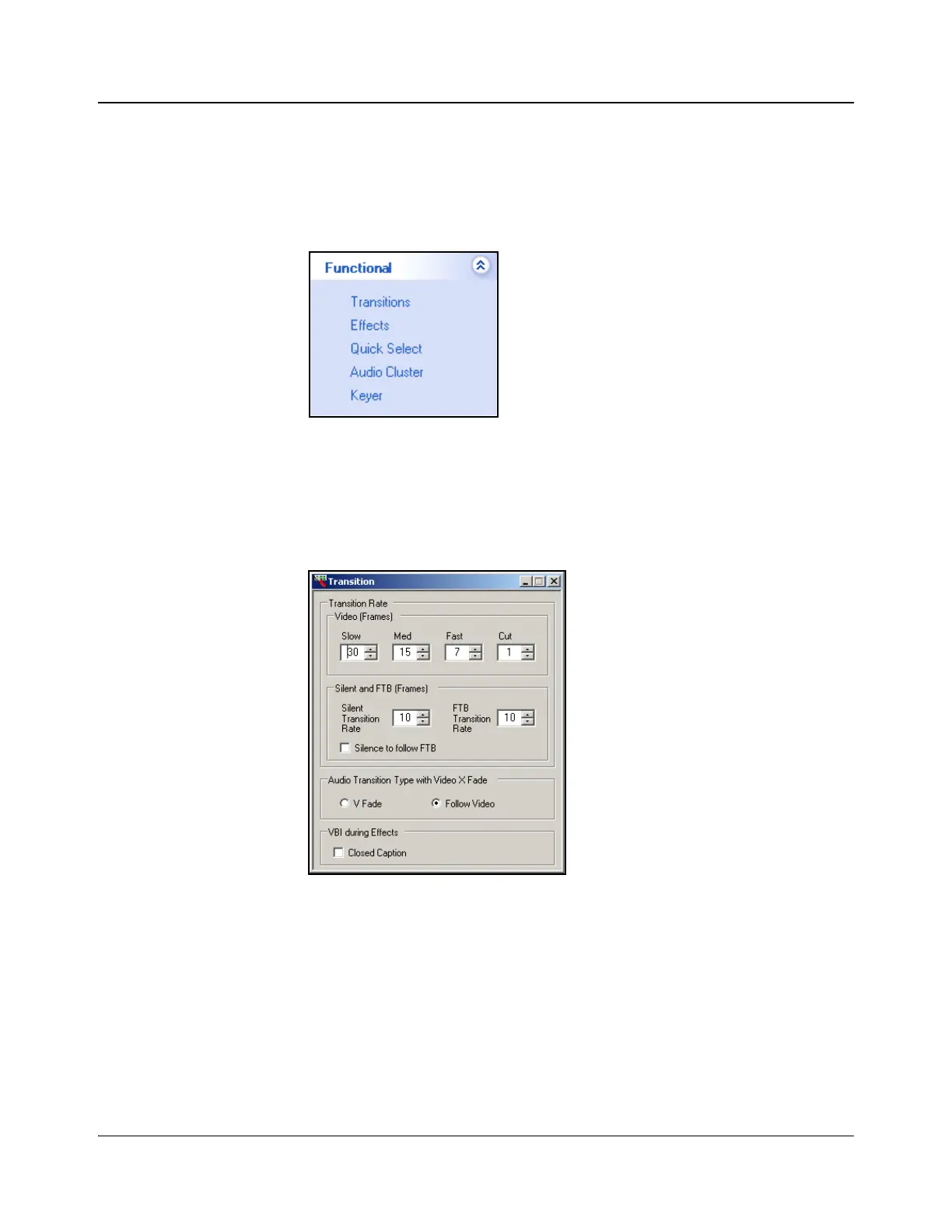

Figure 8-13. Functional Menu Group
This menu group controls the functional configuration of the IconMaster, as
shown in Figure 8-13.
Transition Settings
Figure 8-14. Transitions Dialog Box
The Transition dialog box in ICU contains parameters that affect the operation
of the buttons on the Transition Functions cluster (see your Master Control
Switcher Functional Operation and Configuration Manual).
