Chapter 2: Installation
Installing Optional NEO Modules (MKE-3901-FX and
MKA-3901)
In addition to the standard NEO modules that come with your IconMaster
system, you may purchase an MKE-3901-FX effects submodule and/or an
MKA-3901 balanced audio module.
Note
When purchased as a package, the MKE-3901 and the MKA-3901
are attached together using standoffs and screws.
If you ordered these optional modules at the same time as your IconMaster, the
modules will be installed in the NEO frame at the manufacturing facility, and no
further NEO module installation procedures are necessary. If you ordered these
optional modules separately, you can install them yourself. For module
installation instructions, see the NEO FR-3901, FR-3903, and FR-3923
Mounting Frames Installation and Operation Manual.

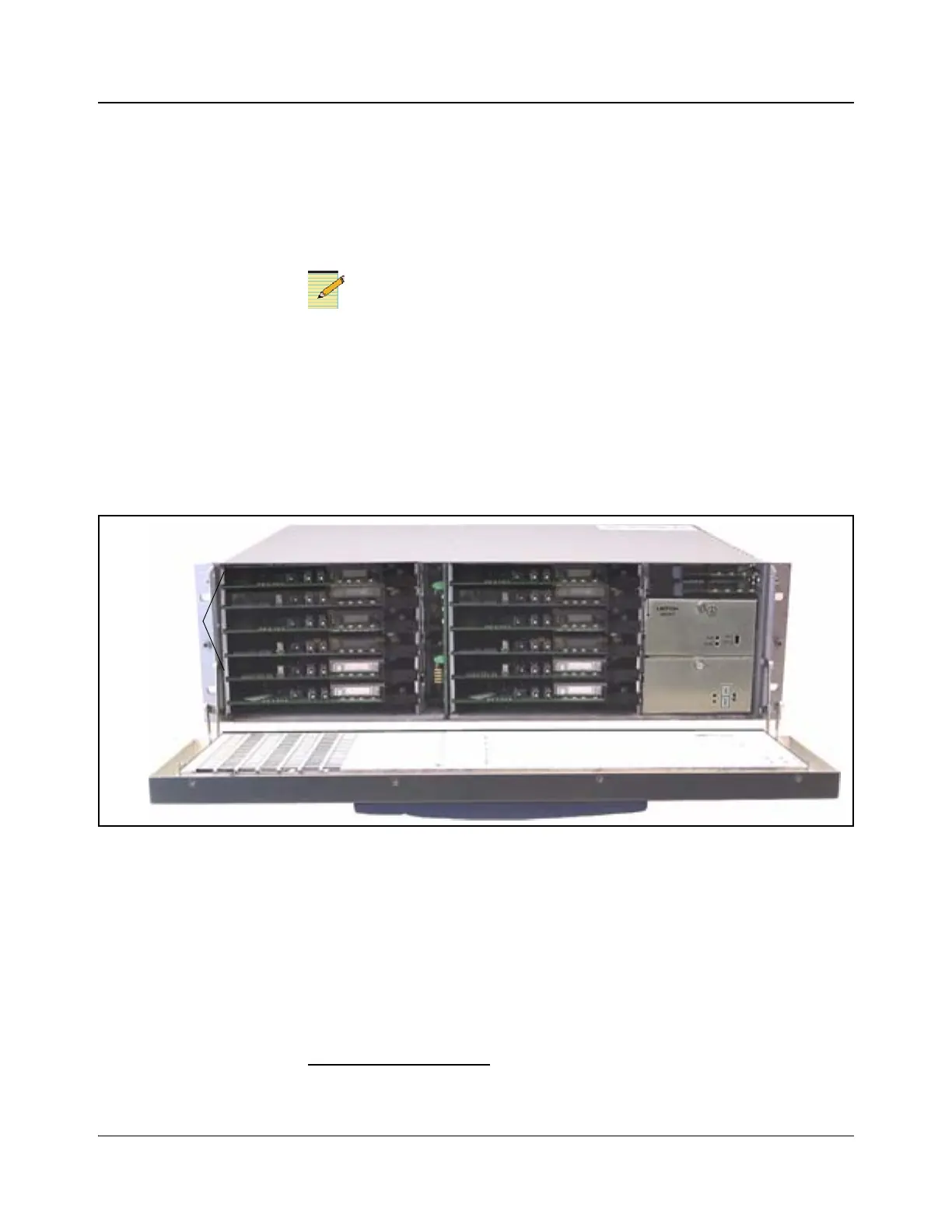

Figure 2-23. MKA-3901, MKE-3901, and MGI-3903 Module Order
To function correctly, MKA-3901, MKE-3901, and MGI-3903 modules must be
connected to one another before installation, and the modules must be mounted in
a specific order in a NEO frame. Figure 2-23 on page 35 shows the alignment of
the modules; Figure 2-24 on page 36 shows an exploded view. The MKA-3901
and MKE-3901-FX are attached to the MKE-3901 module.
• Top – MKA-3901 front module
1
• Middle – MKE-3901 front module
2
with optional MKE-3901-FX
submodule
3
On one side, in
this order:
• MKA-3901
• MKE-3901
• MGI-3903
1
MKA-3901 modules do not require specific jumper settings.
2
MKE-3901 modules require specific jumper settings. See page 31 for more information.
