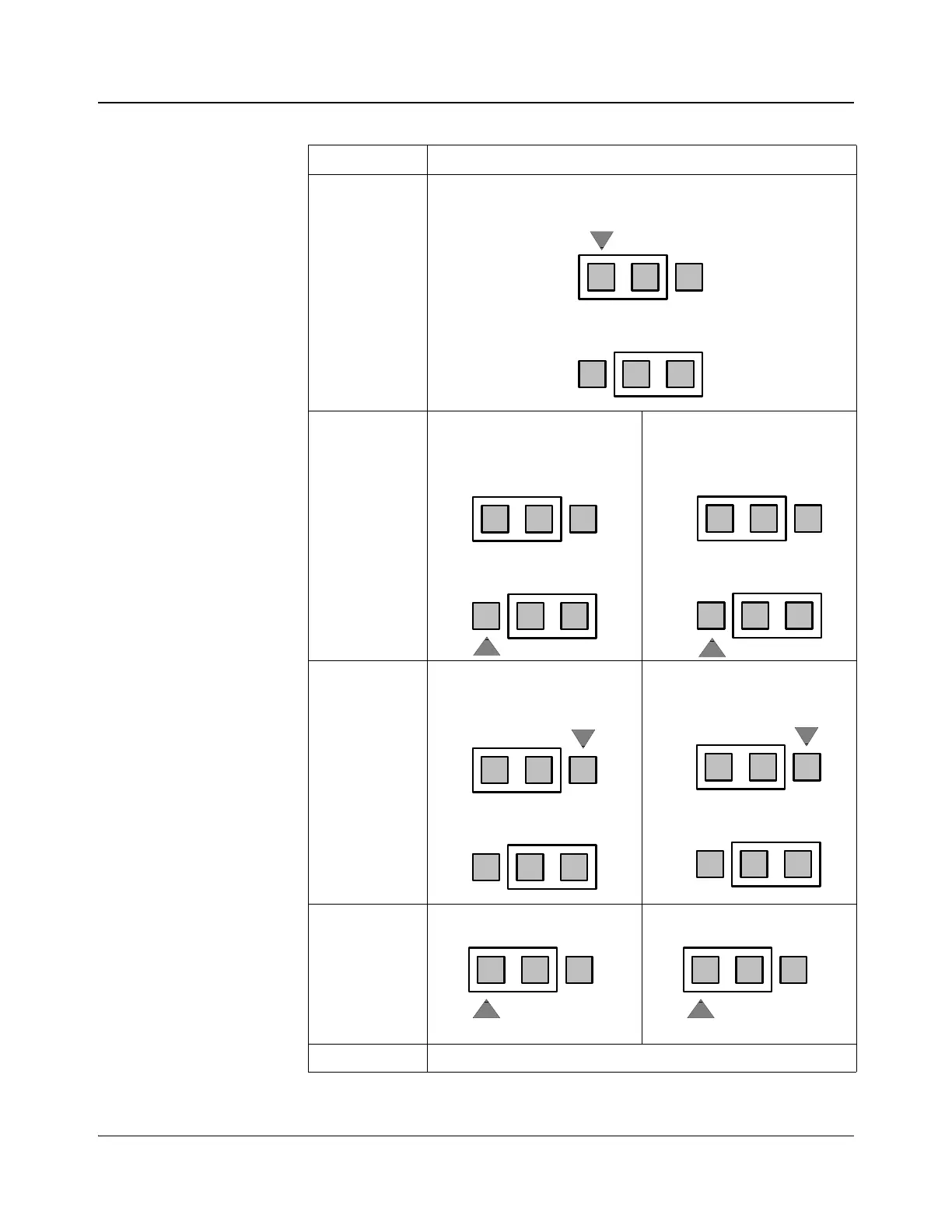

Table 2-1. Jumper Settings
Function Settings
Reference input
termination
Serial port
standard
Audio-over
impedance
Serial port A
(RS-232 format)
Must always be
set to 232
* Default value
75Ω impedance*
Hi-Z impedance
Jumper 16
Serial RS-232*
Serial RS-422
Jumper 17/ Port E
Ext. Routing Control
Serial RS-232
Serial RS-422*
Jumper 18/Port B
Automation
AES A/O 1 balanced*
AES A/O 1 unbalanced
Jumper 22
AES A/O 2 balanced*
AES A/O 2 unbalanced
Jumper 20
Jumper 25
232
Jumper 26
232
